**10 UNITS** ATmega 2560 R3 CH340 Board compatible with Arduino MEGA 2560 IDE

**10 UNITS** ATmega 2560 R3 CH340 Board compatible with Arduino MEGA 2560 IDE

Regular price $129.90 USD
Regular price Sale price $129.90 USD
Sale Sold out
Shipping calculated at checkout.

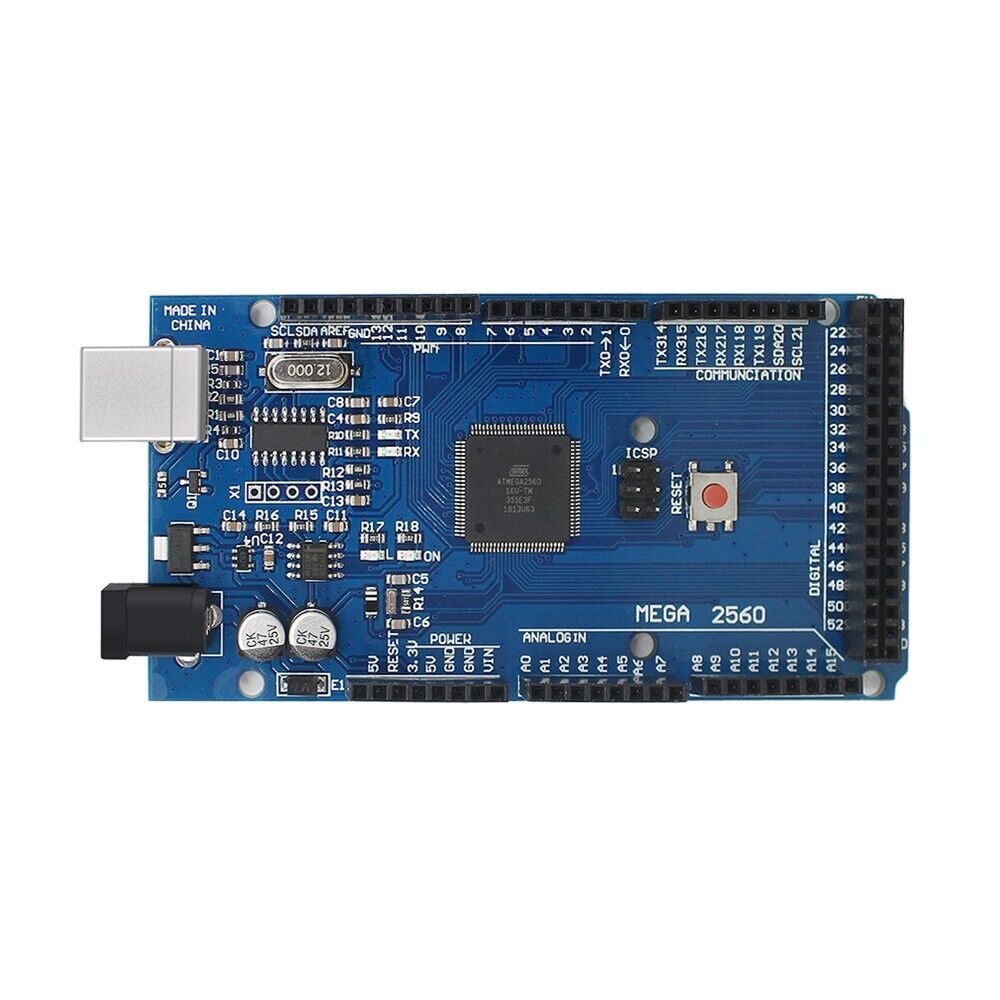

**10 units!**  Mega 2560 R3 ATMEGA 2560, CH340 Board

The MEGA 2560 R3 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The MEGA 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila. The Mega 2560 R3 is an update to the Mega, which it replaces.

The MEGA 2560 is designed for projects that require more I/O lines, more sketch memory and more RAM. With 54 digital I/O pins, 16 analog inputs and a larger space for your sketch it is the recommended board for 3D printers and robotics projects. This gives your projects plenty of room and opportunities maintaining the simplicity and effectiveness of the platform.



Specs:



Microcontroller ATmega2560

Operating Voltage 5V

Input Voltage (recommended) 7-12V

Input Voltage (limit) 6-20V

Digital I/O Pins 54 (of which 15 provide PWM output)

Analog Input Pins 16

DC Current per I/O Pin 20 mA

DC Current for 3.3V Pin 50 mA

Flash Memory 256 KB of which 8 KB used by bootloader

SRAM 8 KB

EEPROM 4 KB

Clock Speed 16 MHz

LED_BUILTIN 13

Length 101.52 mm

Width 53.3 mm

Weight 37 g


What's in the box: 10 MEGA Boards
