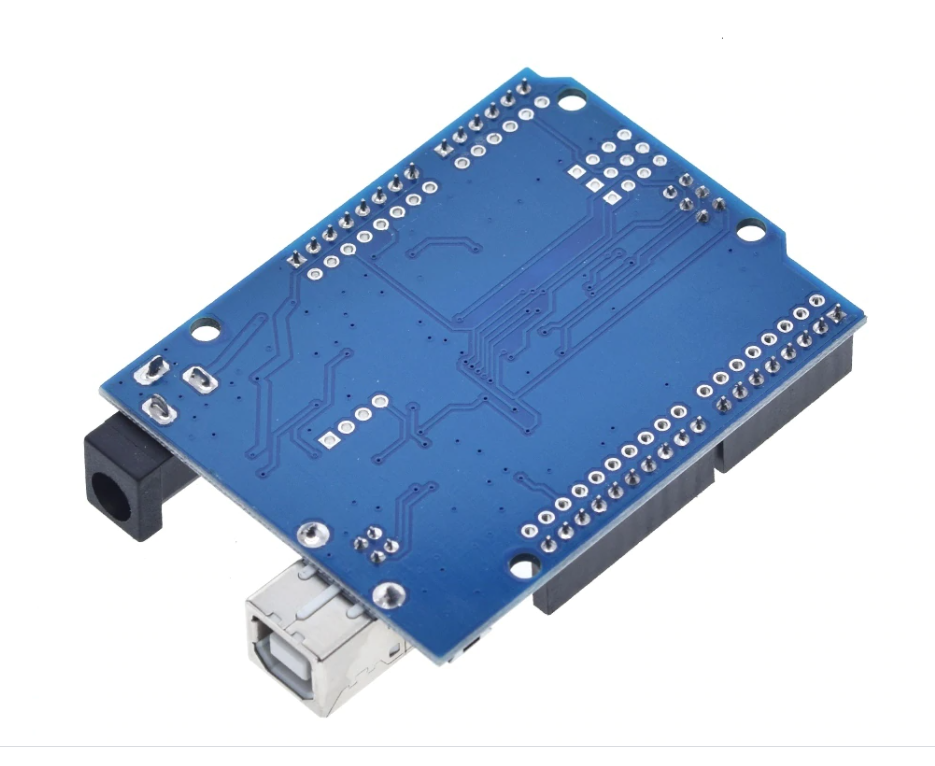

**10 units!* Development Board ATmega 328P CH340 compatible with Arduino UNO IDE

**10 units!* Development Board ATmega 328P CH340 compatible with Arduino UNO IDE

Regular price $59.90 USD
Regular price $78.50 USD Sale price $59.90 USD
Sale Sold out
Shipping calculated at checkout.

*** 10 Units!***  Development Board ATmega328P CH340 compatible with Arduino IDE

The best board to get started with electronics and coding. If this is your first experience tinkering with the platform, this is the most robust board you can start playing with. This is the most used and documented board.



This is a microcontroller board based on the ATmega328P.



It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header and a reset button.



It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. You can tinker with your board without worrying too much about doing something wrong.

The board is the first in a series, and the reference model for the platform.

Tech Specs:

Microcontroller



ATmega328P



Operating Voltage



5V



Input Voltage (recommended)



7-12V



Input Voltage (limit)



6-20V



Digital I/O Pins



14 (of which 6 provide PWM output)



PWM Digital I/O Pins





6



Analog Input Pins



6



DC Current per I/O Pin



20 mA



DC Current for 3.3V Pin



50 mA



Flash Memory



32 KB (ATmega328P) of which 0.5 KB used by bootloader



SRAM



2 KB (ATmega328P)



EEPROM



1 KB (ATmega328P)



Clock Speed



16 MHz



LED_BUILTIN



13



Length



68.6 mm



Width



53.4 mm



Weight



25 g
