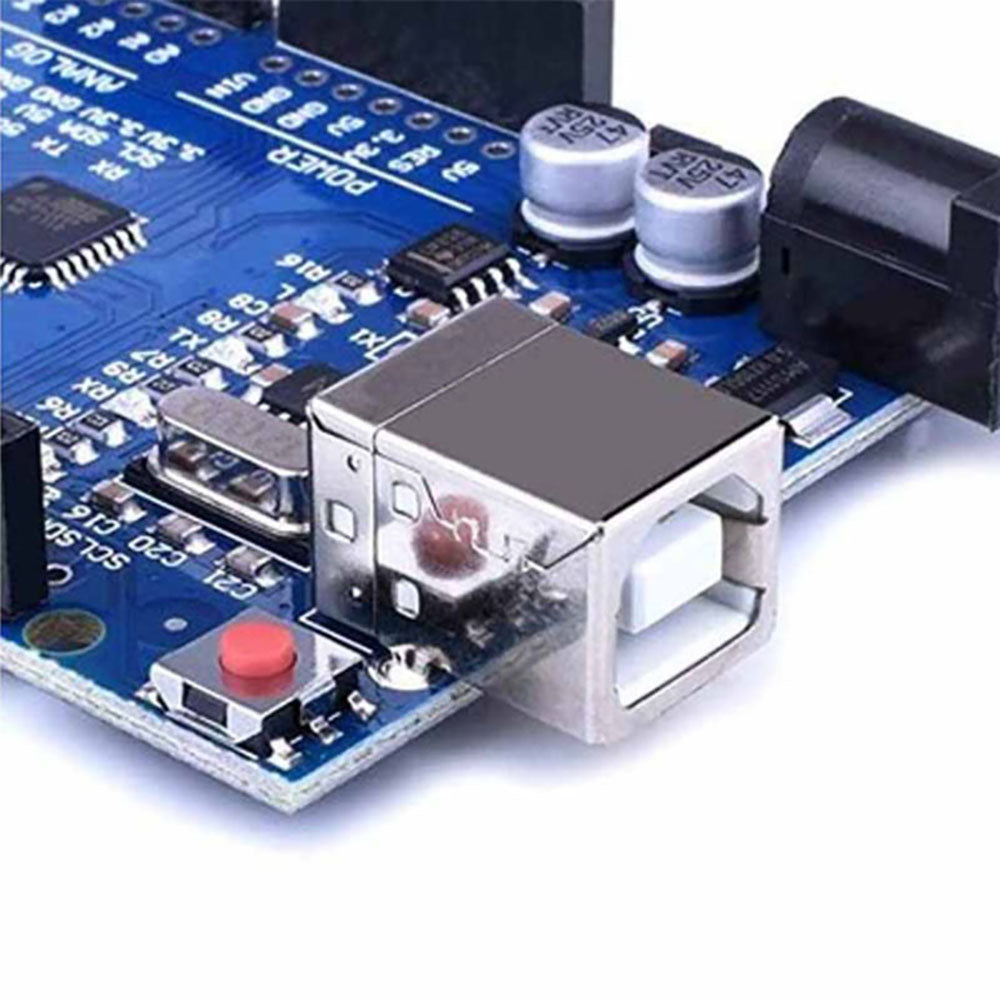

10 Units! Development Board ATmega328P CH340 compatible with Arduino UNO IDE

10 Units! Development Board ATmega328P CH340 compatible with Arduino UNO IDE

Regular price $69.90 USD
Regular price $99.90 USD Sale price $69.90 USD
Sale Sold out
Shipping calculated at checkout.

 10 units, free shipping!

Development Board ATmega328P CH340 compatible with Arduino IDE

The best board to get started with electronics and coding. If this is your first experience tinkering with the platform, this is the most robust board you can start playing with. This is the most used and documented board.

This is a microcontroller board based on the ATmega328P.

It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header and a reset button.

It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. You can tinker with your board without worrying too much about doing something wrong.

The board is the first in a series, and the reference model for the platform.



 Tech Specs:

Microcontroller

ATmega328P

Operating Voltage

5V

Input Voltage (recommended)

7-12V

Input Voltage (limit)

6-20V

Digital I/O Pins

14 (of which 6 provide PWM output)

PWM Digital I/O Pins

6

Analog Input Pins

6

DC Current per I/O Pin

20 mA

DC Current for 3.3V Pin

50 mA

Flash Memory

32 KB (ATmega328P) of which 0.5 KB used by bootloader

SRAM

2 KB (ATmega328P)

EEPROM

1 KB (ATmega328P)

Clock Speed

16 MHz

LED_BUILTIN

13

Length

68.6 mm

Width

53.4 mm

Weight

25 g
