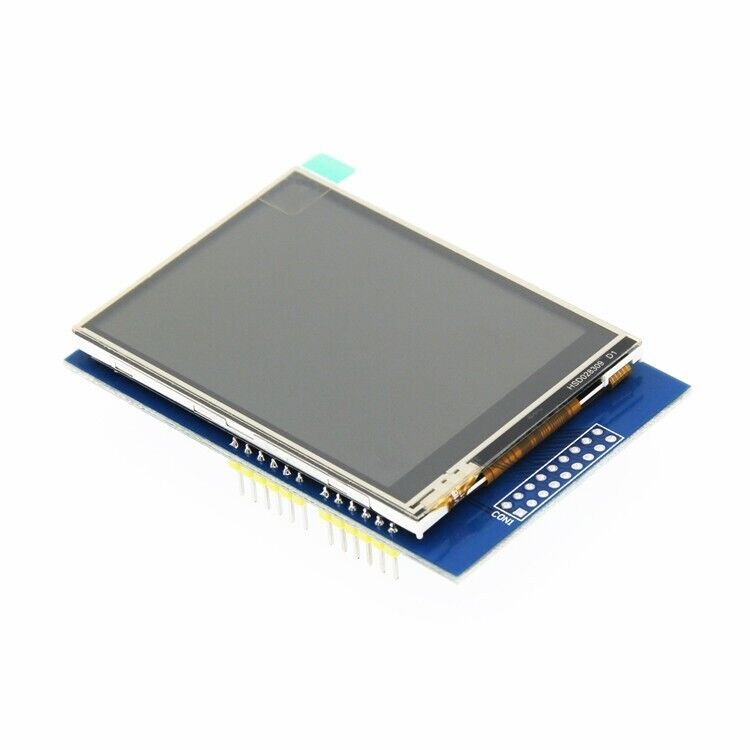

2.8 TFT LCD Display Full Color Touch Screen Shield for Arduino UNO MEGA SD Card

2.8 TFT LCD Display Full Color Touch Screen Shield for Arduino UNO MEGA SD Card

Regular price $15.99 USD
Regular price Sale price $15.99 USD
Sale Sold out
Shipping calculated at checkout.
Combo

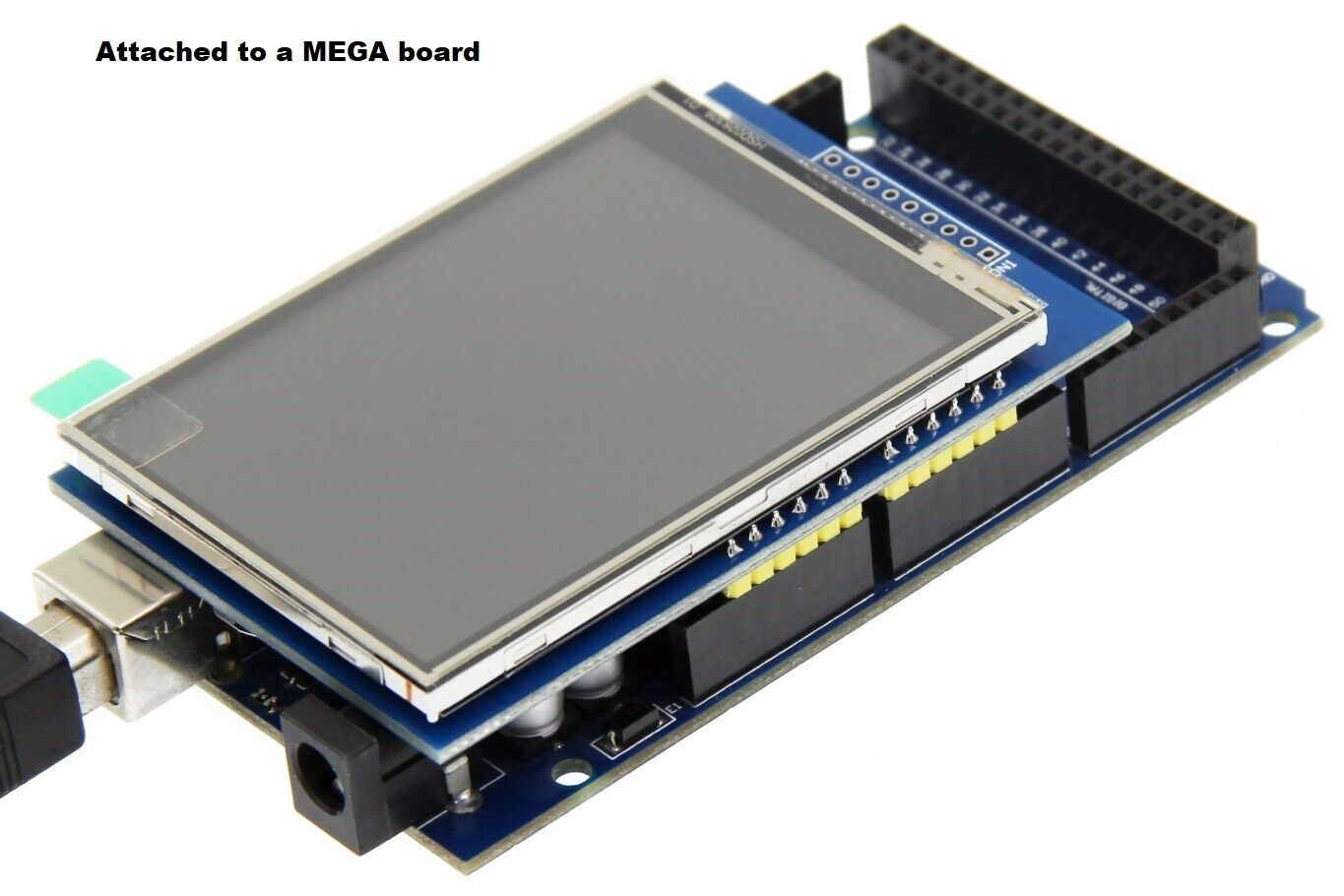

2.8 inch Full Color TFT Touchscreen display (ILI9341) made specifically for Arduino UNO and MEGA

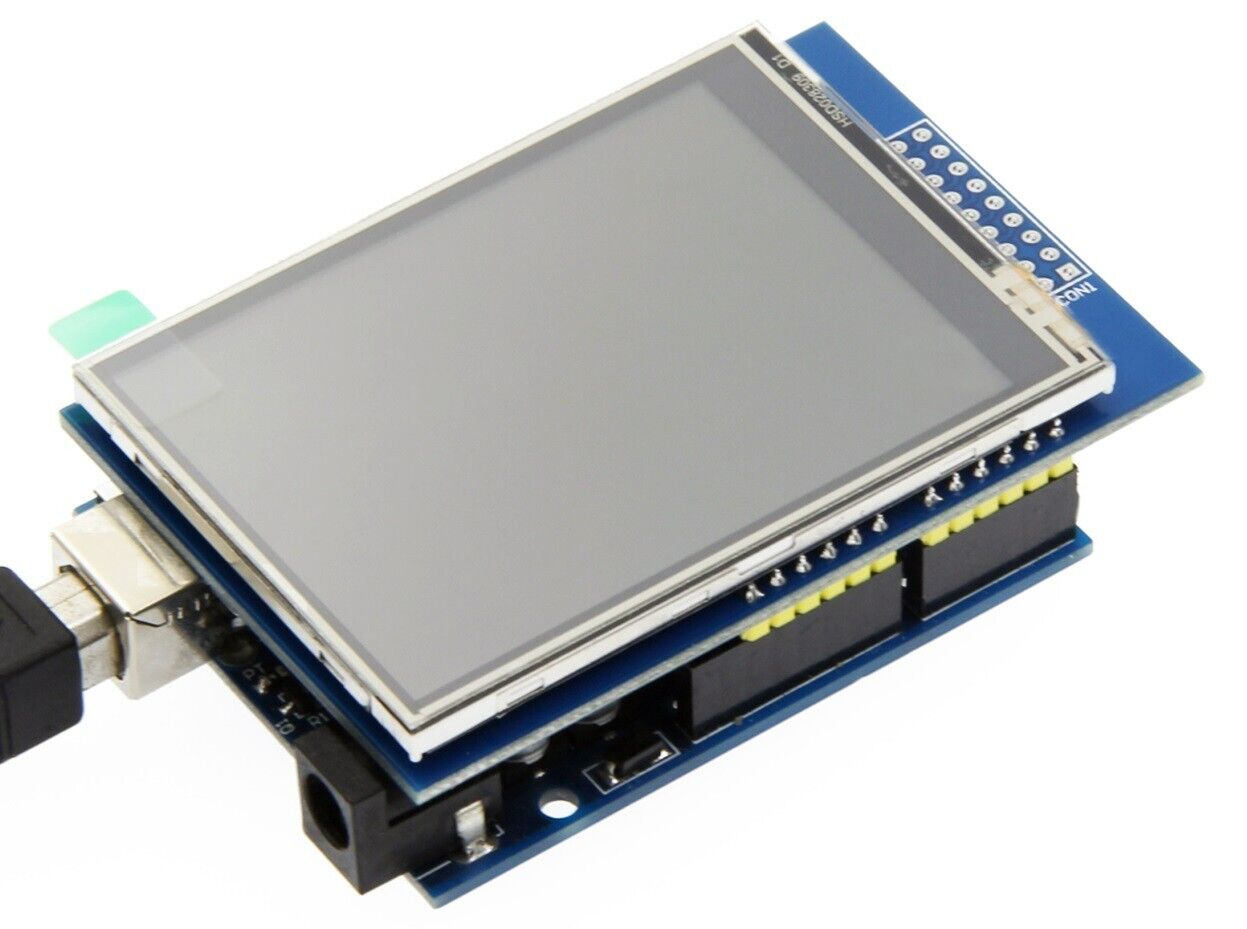

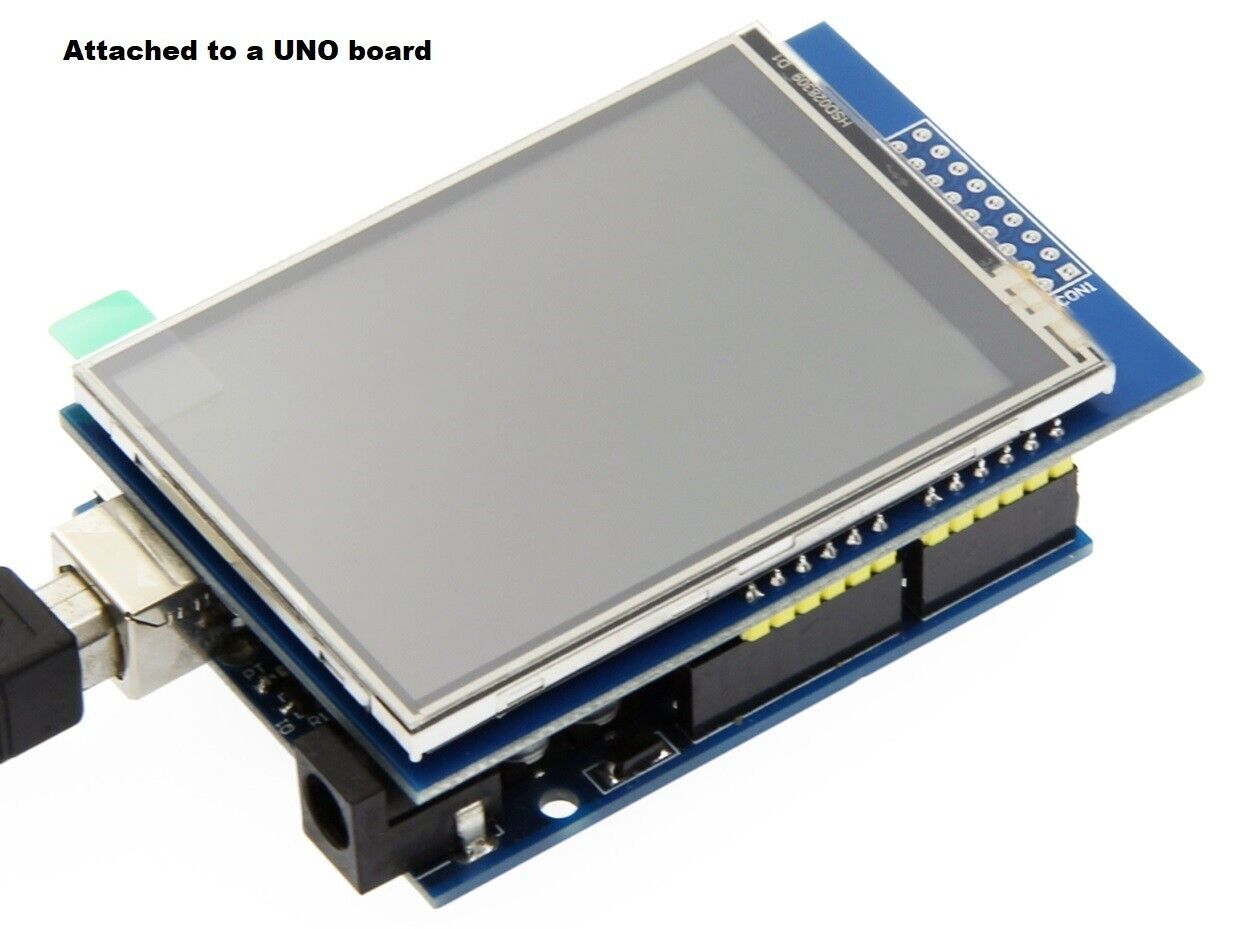

Fits directly on top of your Arduino Board, no need for cables!

Stylus pen included!

We will provide complete instructions, manuals, tutorial, videos, libraries and example codes.

Description:

·        320 x 240 resolution.

·        16-bit color (65,000 colors) display support.

·        With high-brightness backlight, the backlight has good brightness and low power consumption.

·        High quality touch, high sensitivity, and high linearity.

·        It is made of custom yellow copper-plated pin headers, which are beautiful and durable.

·        A universal interface for the full range of development boards such as Arduino and Alientek.

·        8-bit parallel bus, faster than serial SPI refresh

·        On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage.

·        Easy to expand the experiment with SD card slot.



Specs:

·        Display Color: RGB 65K color

·        Screen Size: 2.8(inch)

·        Type: TFT

·        Driver IC: ILI9341

·        Resolution: 320*240 (Pixel)

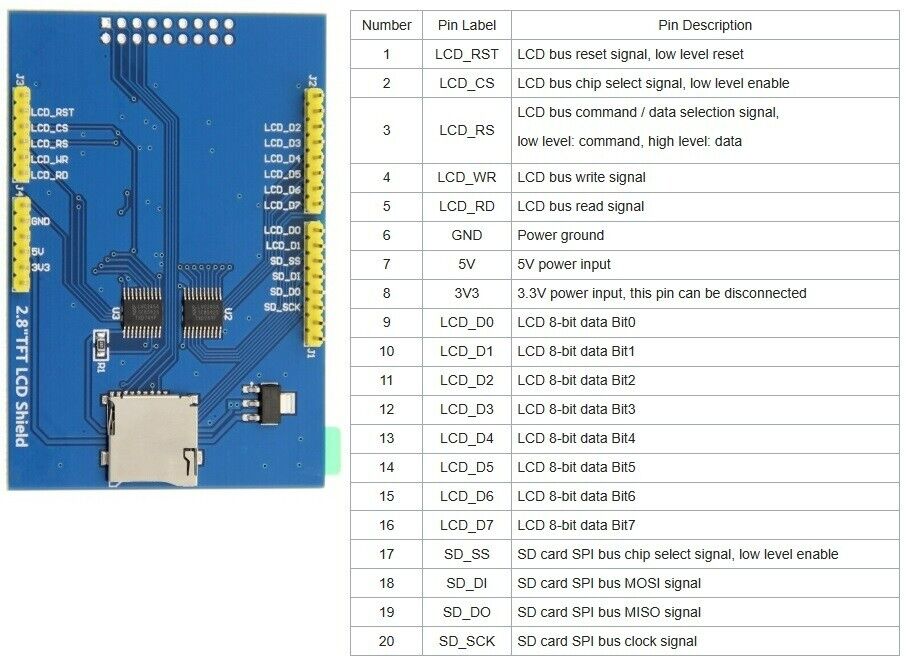

·        Module Interface: 8-bit parallel interface

·        Operating Voltage: 5V/3.3V

·        Active Area: 43.2*57.6(mm)

·        Module PCB Size: 52.70*78.22(mm)

·        Operating Temperature: -20oC ~ 60oC

·        Storage Temperature: -30oC ~ 70oC
