2-Pack DC Stepper Motor Driver Module L298N Dual H Bridge Ctl Board for Arduino

New L298N DC Stepper Motor Driver Module Dual H Bridge Control Board for Arduino

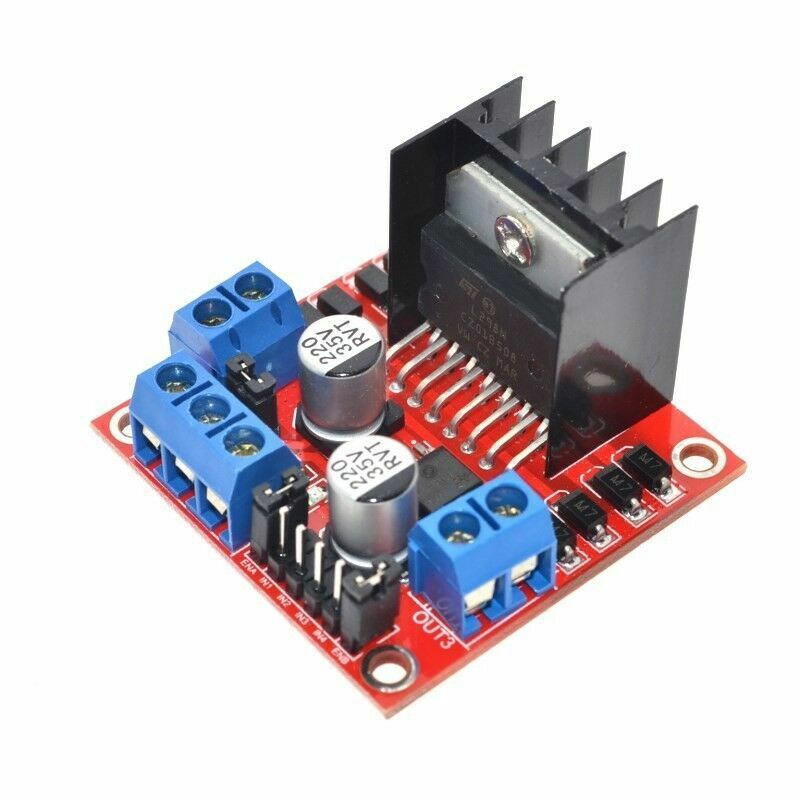

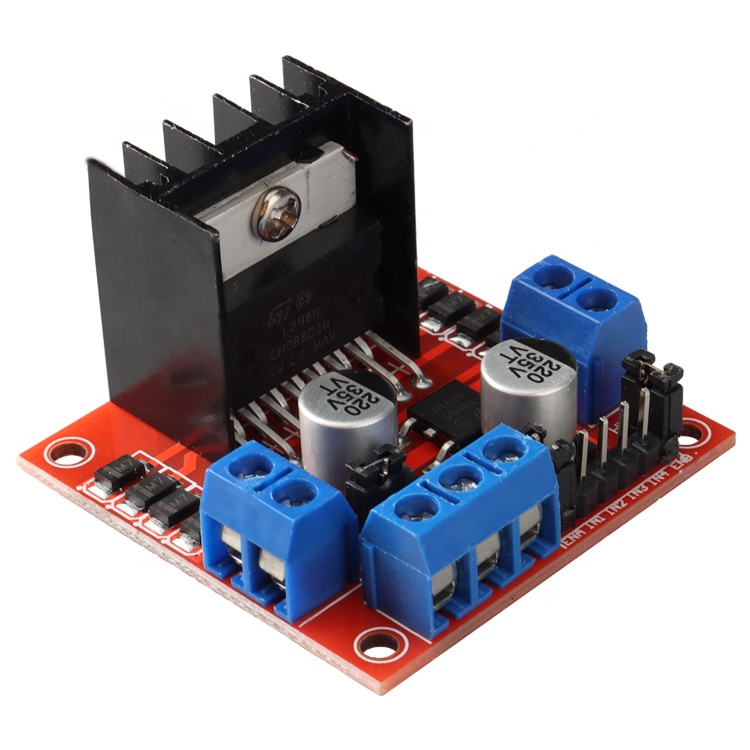

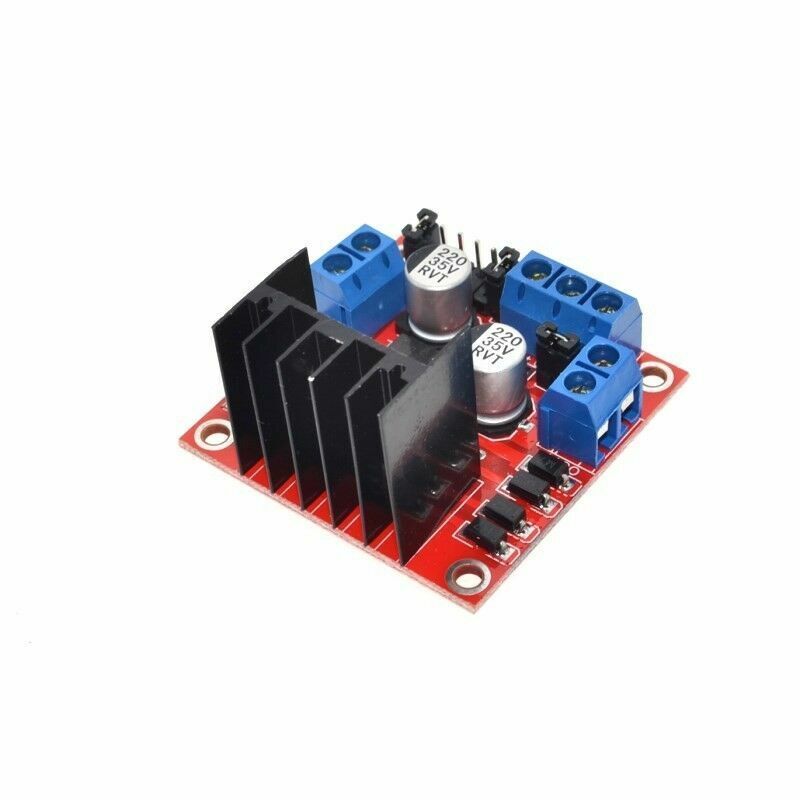

This L298N Motor Driver Module is a high-power motor driver module for driving DC and Stepper Motors. This module consists of an L298 motor driver IC and a 78M05 5V regulator. L298N Module can control up to 4 DC motors, or 2 DC motors with directional and speed control.

The L298N is a dual H-Bridge motor driver which allows speed and direction control of two DC motors at the same time. ... If the motor supply voltage is up to 12V we can enable the 5V regulator and the 5V pin can be used as output, for example for powering our Arduino board.

If you send a HIGH signal to the enable 1 pin, motor A is ready to be controlled and at the maximum speed;

If you send a LOW signal to the enable 1 pin, motor A turns off;

If you send a PWM signal, you can control the speed of the motor. The motor speed is proportional to the duty cycle.

 Specs:

·       Driver chip: L298N dual H-bridge driver chip

·       Drive section terminal supply area VMS: 5 V ~ 35 V

·       Drive section peak current Io: 2A / Bridge

·       Logical part of the terminal supply area Vss :4.5-5.5V

·       Logical part of the operating current range: 0 ~ 36mA

·       Control signal input voltage range: 4.5-5.5V HIGH LOW 0V

·       Maximum power consumption: 20W

·       Storage temperature: -25℃ ~ 130 ℃

·       Driver Board Size: 55mm * 60mm * 30mm

 What's in the Box: 2 boards complete and ready to use, no assembly required.
