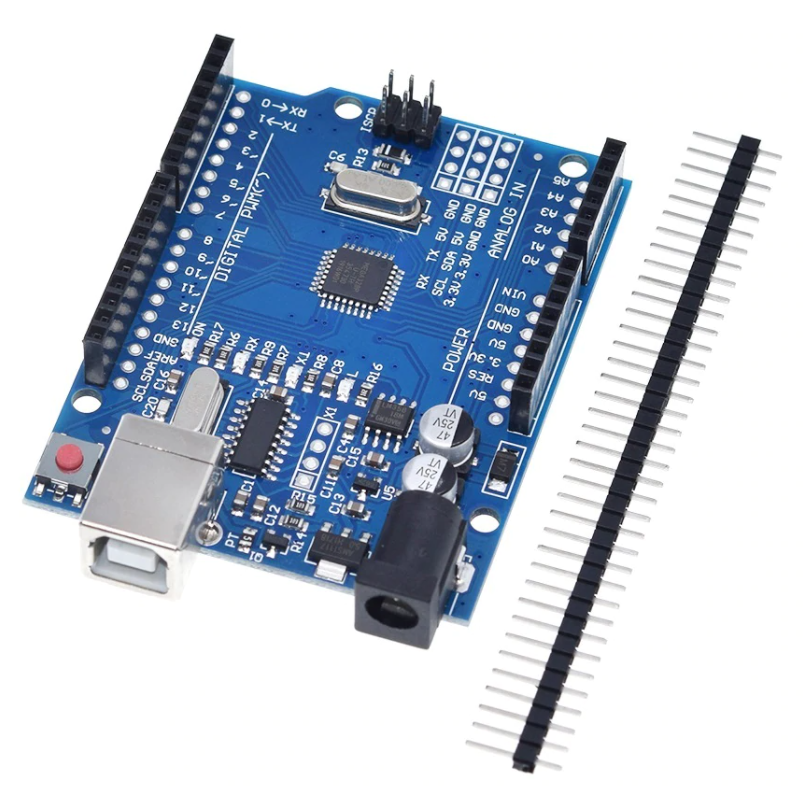

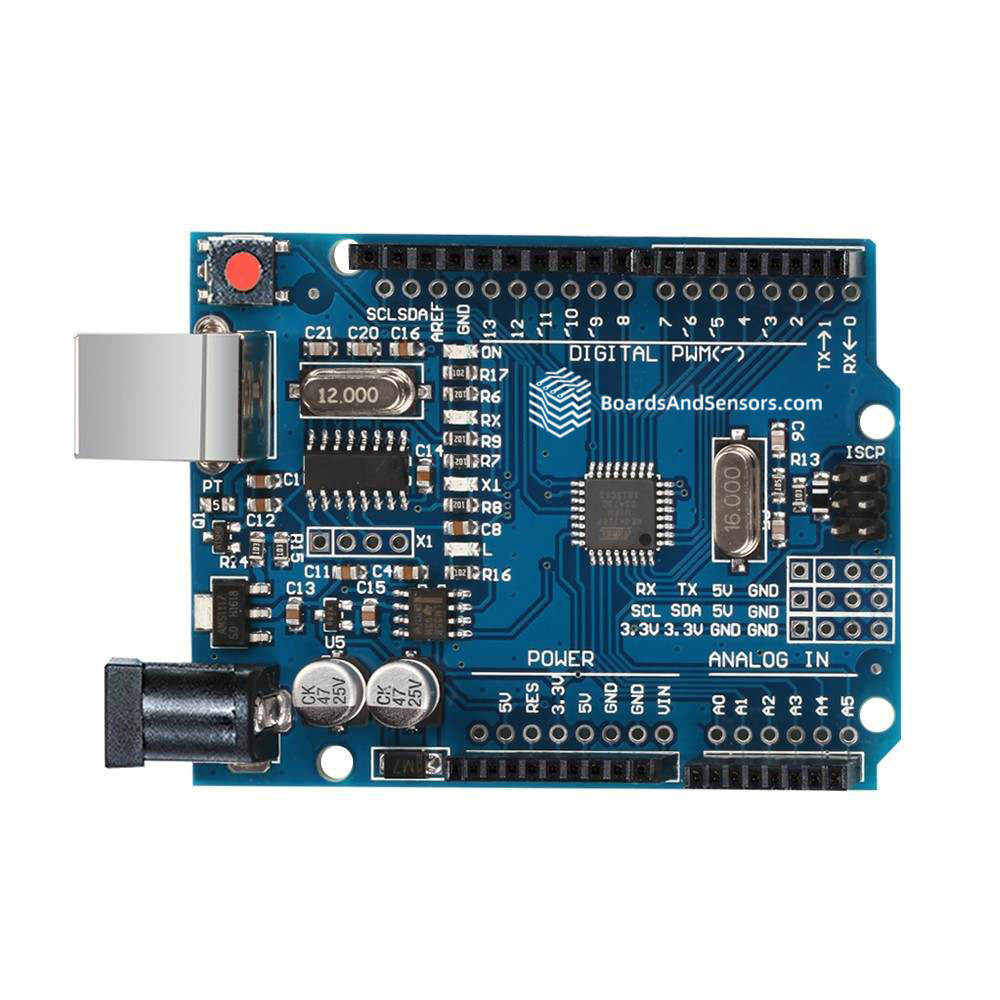

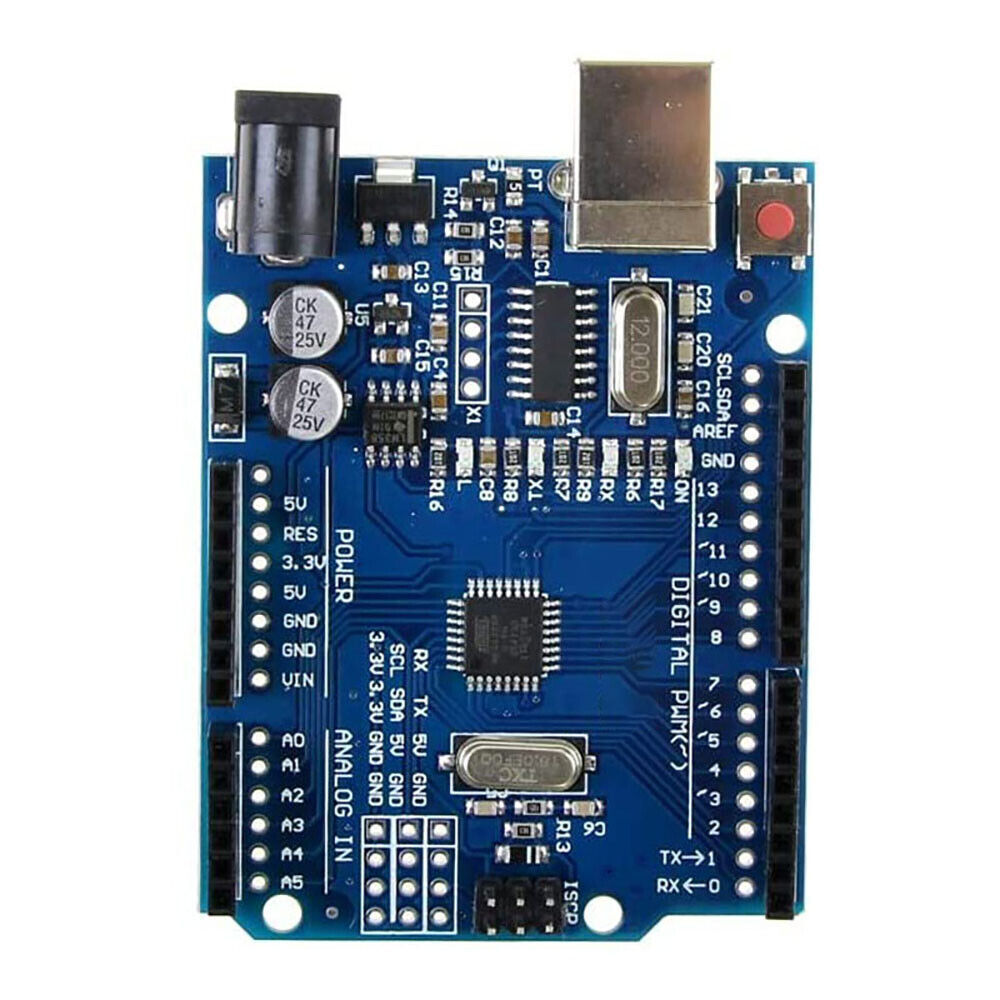

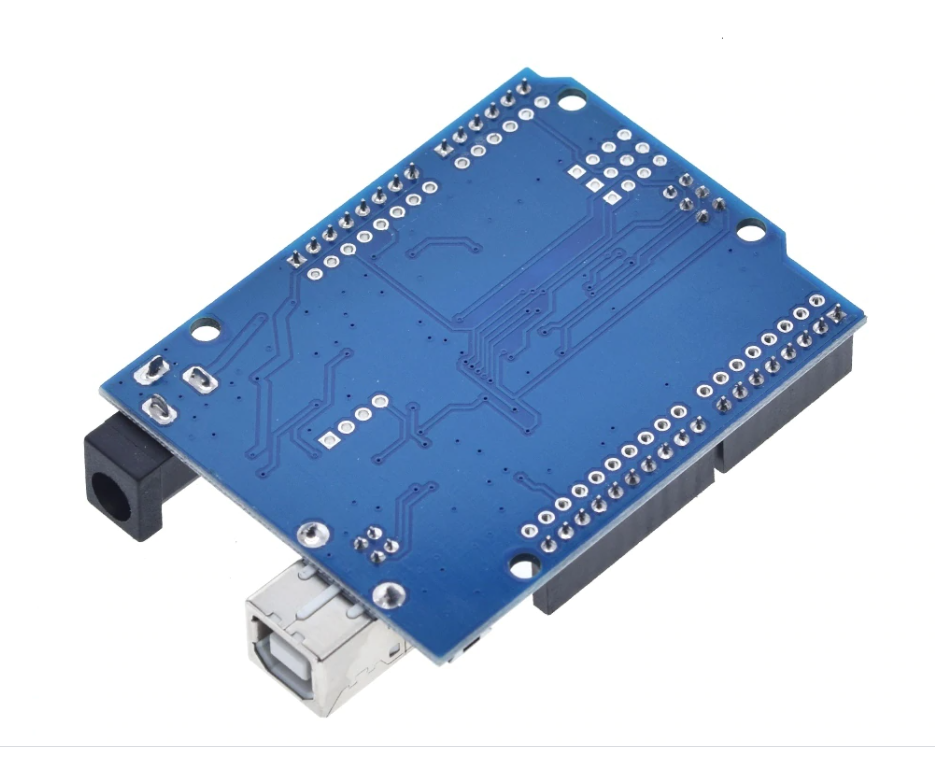

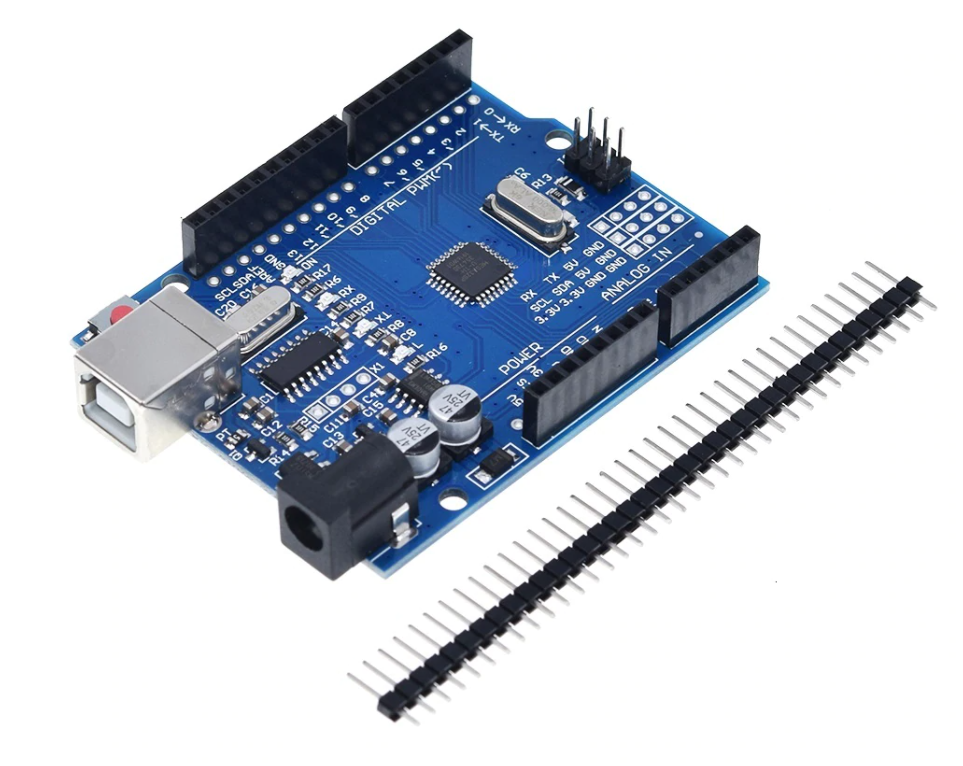

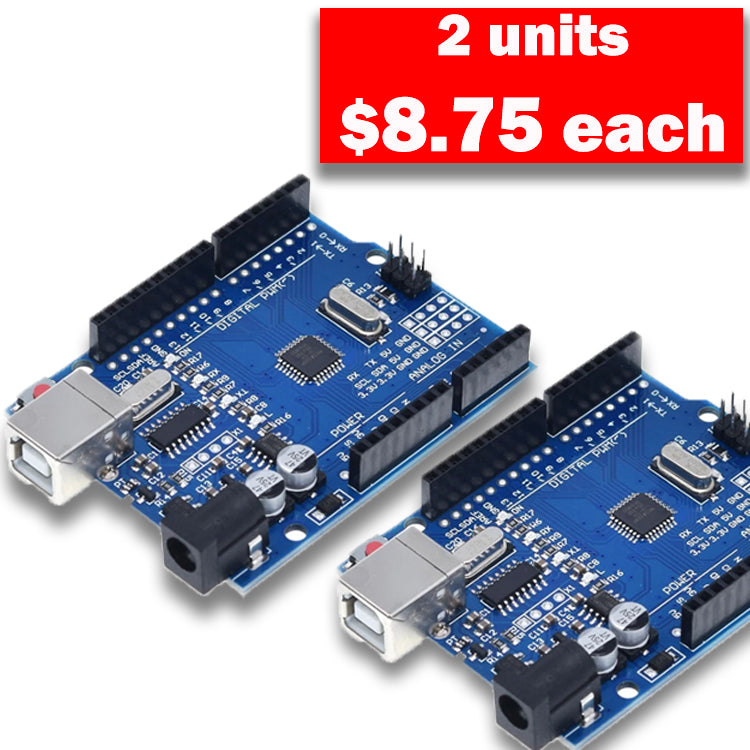

2 units-Compatible with Arduino UNO R3 IDE, ATmega 328P CH340 Development Board

2 units-Compatible with Arduino UNO R3 IDE, ATmega 328P CH340 Development Board

Regular price $17.50 USD
Regular price $19.99 USD Sale price $17.50 USD
Sale Sold out
Shipping calculated at checkout.

R3 ATMEGA328P CH340 Development Board, compatible with Arduino UNO R3 IDE

Brand new, sealed package.

In stock, ships from USA (Massachusetts) via First-Class Mail!

Tracking number available on eBay to monitor your delivery.

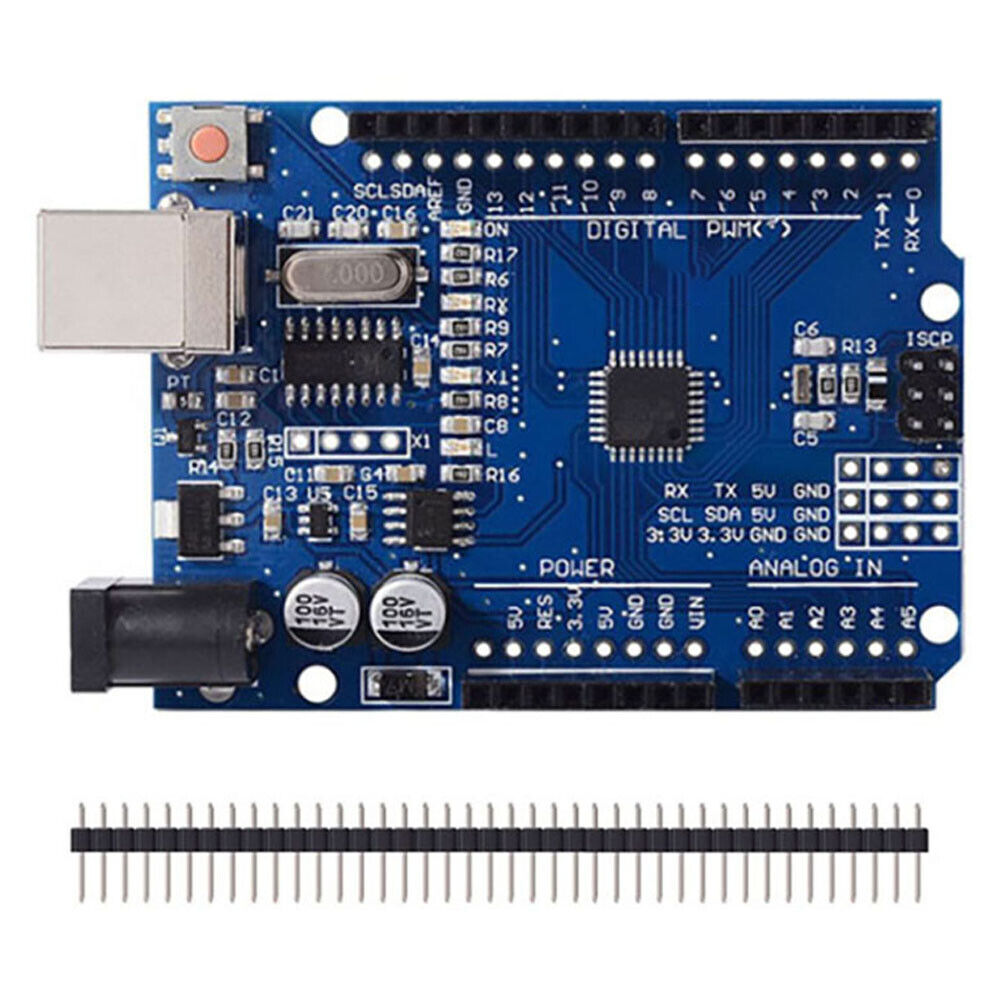

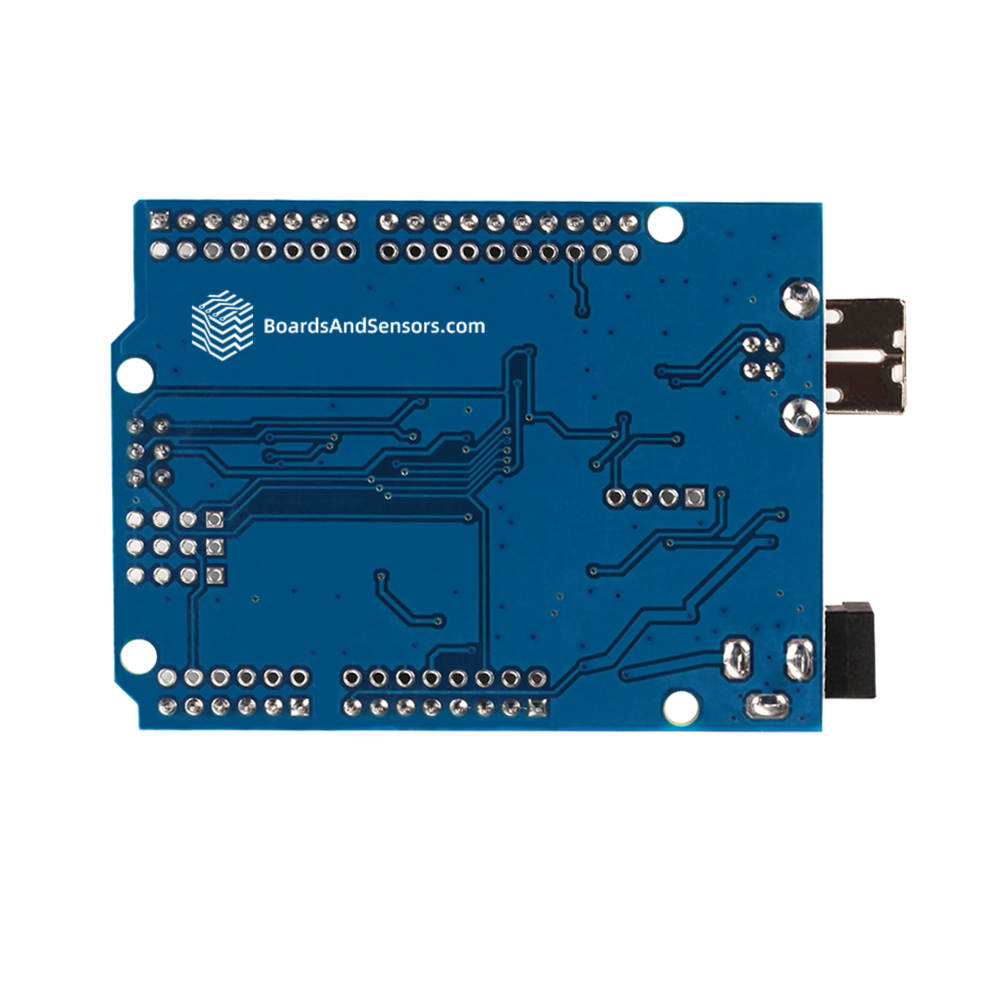

What's in the Box: 1x R3 Compatible ATMEGA328P Micro-Controller Development Board


The best board to get started with electronics and coding. If this is your first experience tinkering with the platform, the board is the most robust board you can start playing with. It is the most used and documented board.

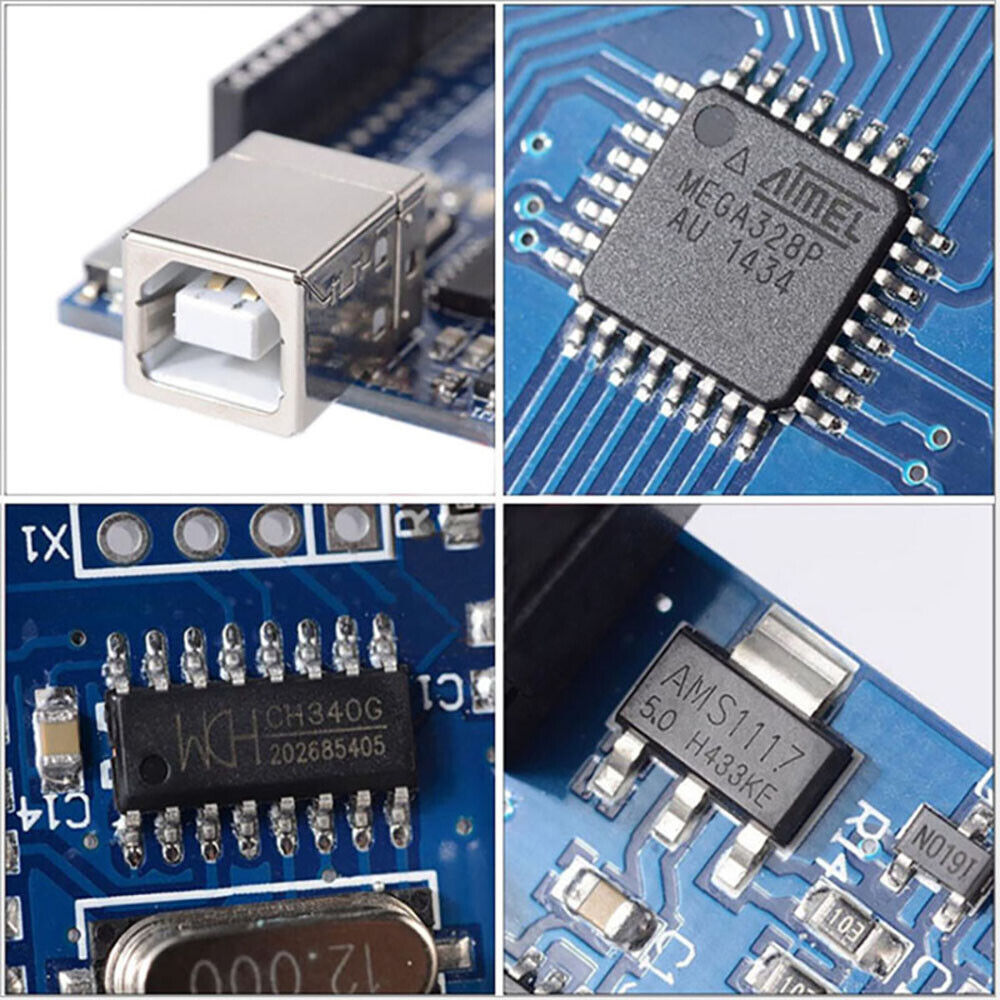

This is a microcontroller board based on the ATmega328P.

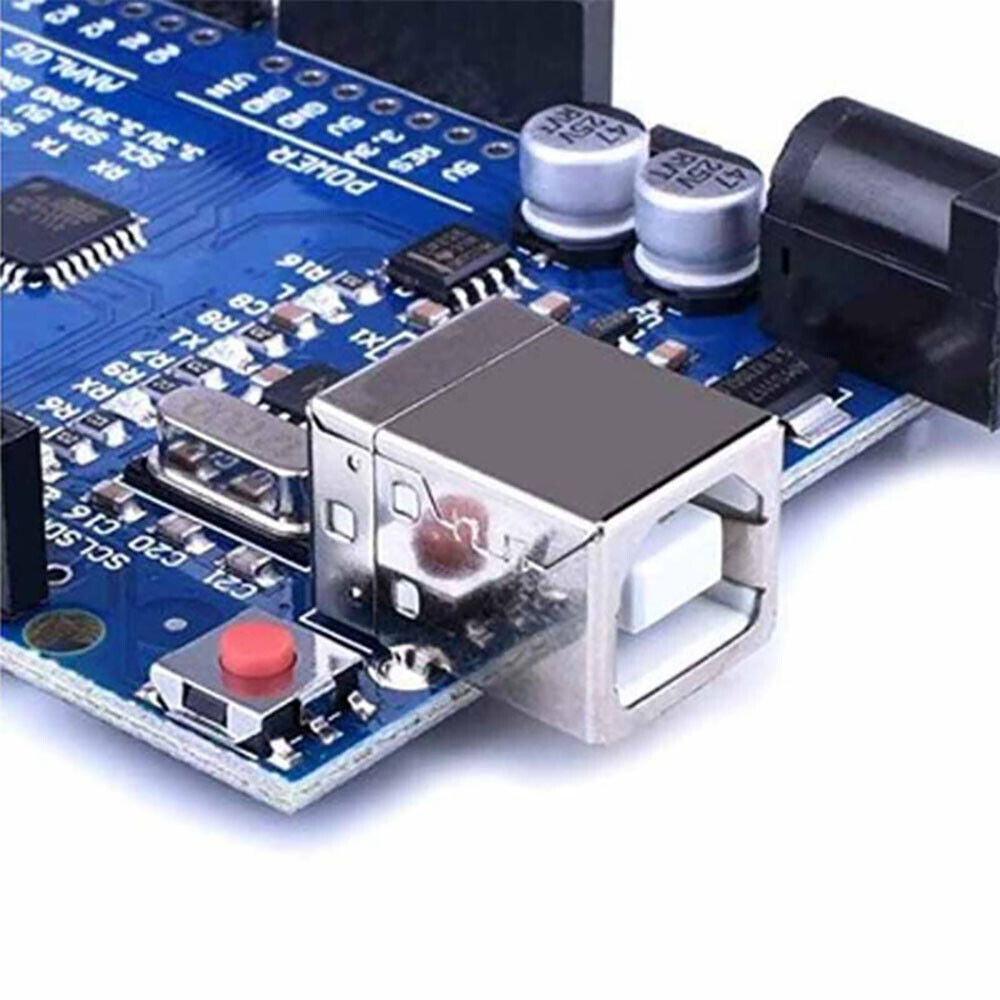

It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header and a reset button.

It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. You can tinker with your board without worrying too much about doing something wrong, worst case scenario you can replace the chip and start over again.

The Uno board is the first in a series, and the reference model for the platform.

Tech Specs:





Operating Voltage




Input Voltage (recommended)




Input Voltage (limit)




Digital I/O Pins


14 (of which 6 provide PWM output)


PWM Digital I/O Pins





Analog Input Pins




DC Current per I/O Pin


20 mA


DC Current for 3.3V Pin


50 mA


Flash Memory


32 KB (ATmega328P) of which 0.5 KB used by bootloader




2 KB (ATmega328P)




1 KB (ATmega328P)


Clock Speed


16 MHz

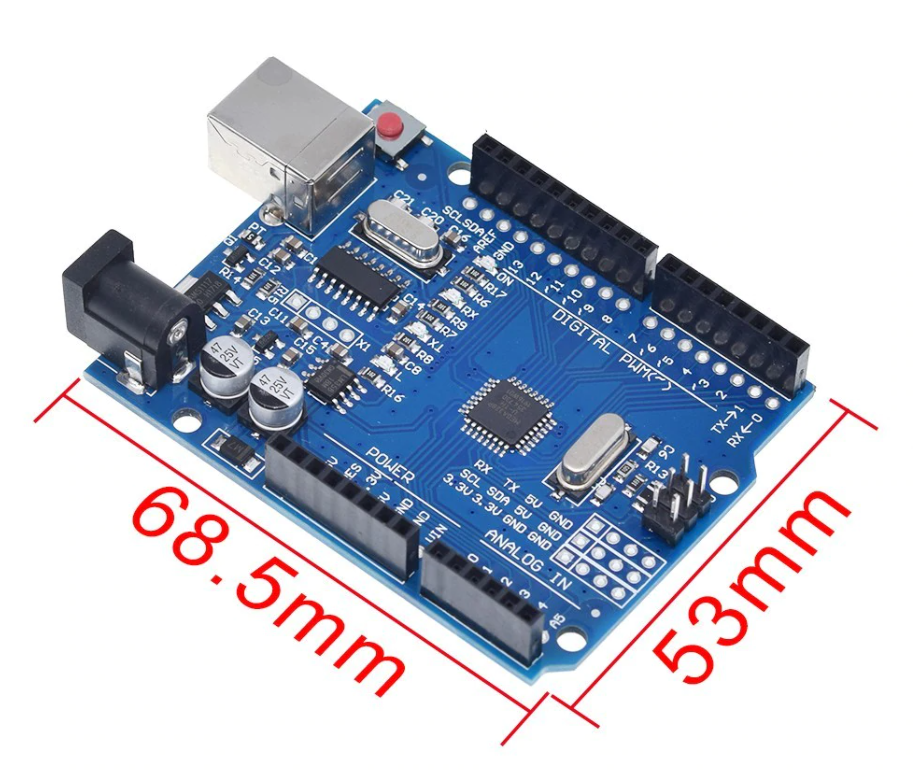

68.6 mm




53.4 mm




25 g
