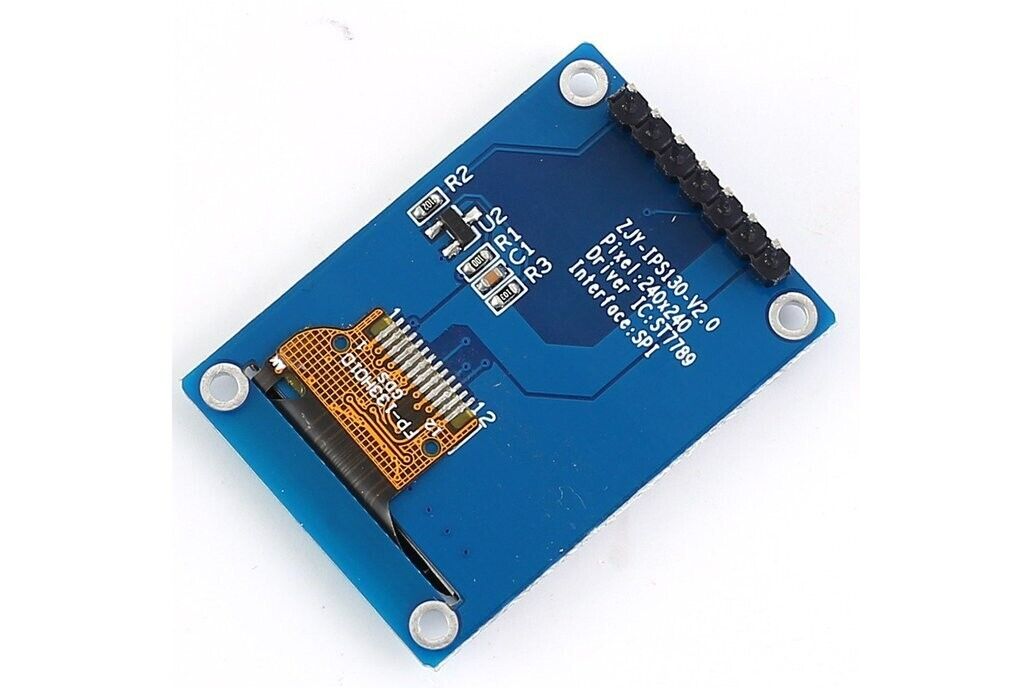

3 units!- 1.3 inch TFT IPS LCD Display Module 240x240 SPI for Arduino & RaspPI

Name: *3 units!*- 1.3 inch TFT IPS LCD Display Module 240x240 SPI for Arduino & RaspPI
Brand: BoardsAndSensors.com
SKU: TFT x3
Price: 23.97 USD
Availability: InStock

$23.97 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

*3 units!*- 1.3 inch TFT IPS LCD Display Module 240x240 SPI Arduino Raspberry Pi

This is the improved version, second generation (V 2.0)

Dot Matrix Size：240*240（direction can adjust horizontal screen vertical screen）
Display color: 65K full color
Interface type: SPI interface
Driver IC: ST7789
Working temperature: -20~70 Celsius
Working voltage: 3.3V
Number of pins: 7Pin
Viewing Direction：Full viewing angle （IPS）
GND: ground
VCC:3.3-5.0V（DC）
SCL :SPI clock line
SDA :SPI data line
RES ：Reset interface
DC ：SPI data/ selection
BLK ：Backlight control, default floating, low level off
color: blue
Material: Metal + PC
size:27.78*39.22mm
LCD Size: 1.3 Inch

Package Contents:
3 units x 1.3-inch, 7 Pin TFT Display
3 units x header pins (not soldered to the board）
