3 units! 1.3 inch TFT IPS LCD Display Module 240x240 SPI for Arduino & RaspPI

$23.97 USD

~~$0.00 USD~~ $23.97 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

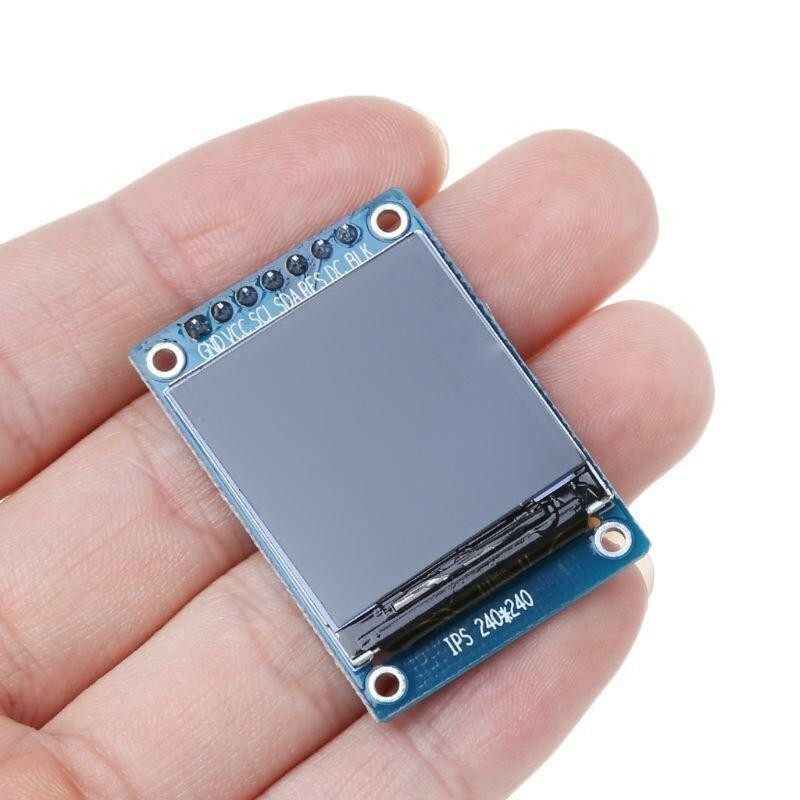

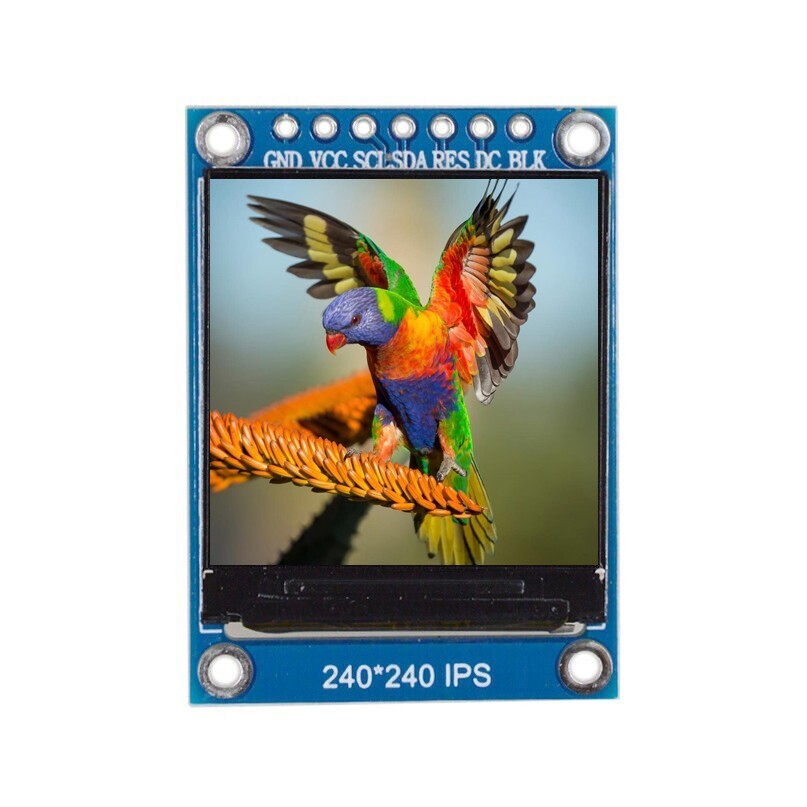

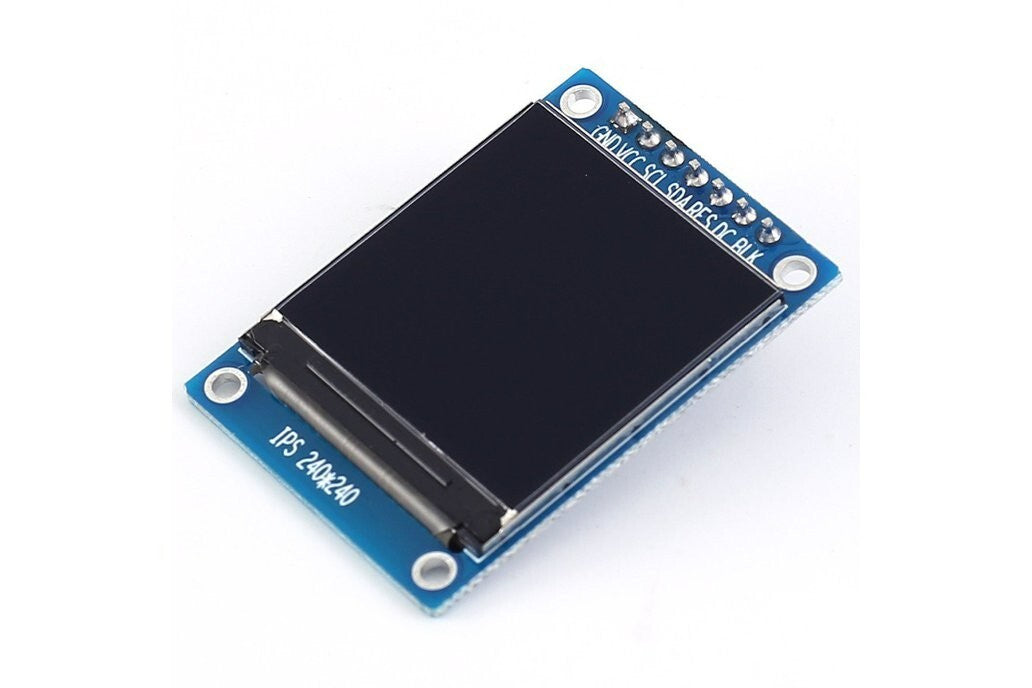

*3 units!*- 1.3 inch TFT IPS LCD Display Module 240x240 SPI Arduino Raspberry Pi

This is the improved version, second generation (V 2.0)

WE PROVIDE ALL LIBRARIES, EXAMPLE CODES AND TUTORIALS

Dot Matrix Size：240*240（direction can adjust horizontal screen vertical screen）
Display color: 65K full color
Interface type: SPI interface

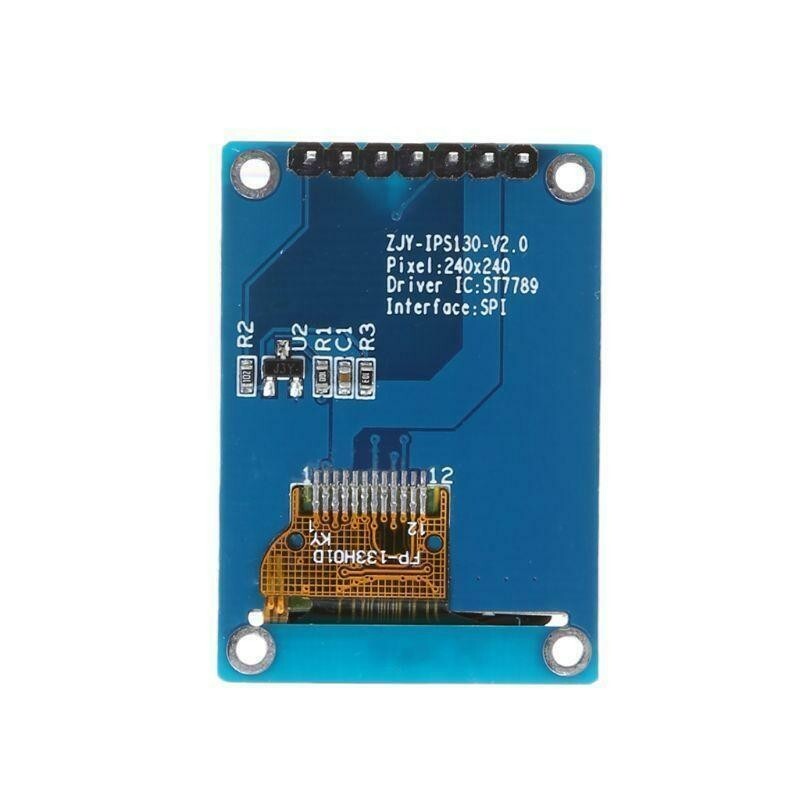

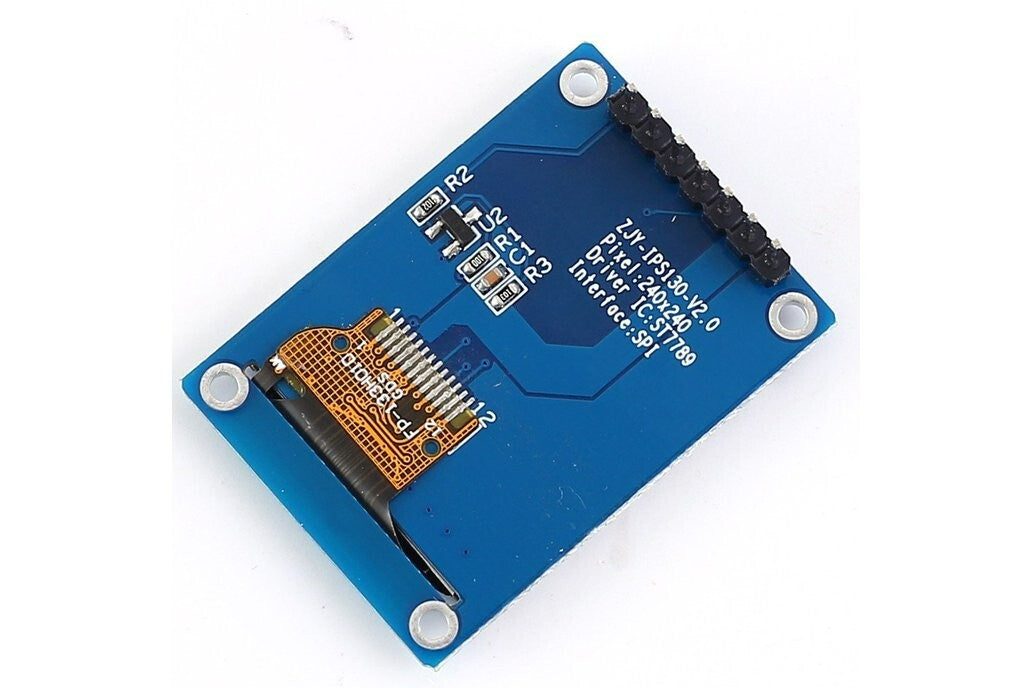

Driver IC: ST7789
Working temperature: -20~70 Celsius
Working voltage: 3.3V
Number of pins: 7Pin
Viewing DirectionFull viewing angle （IPS）

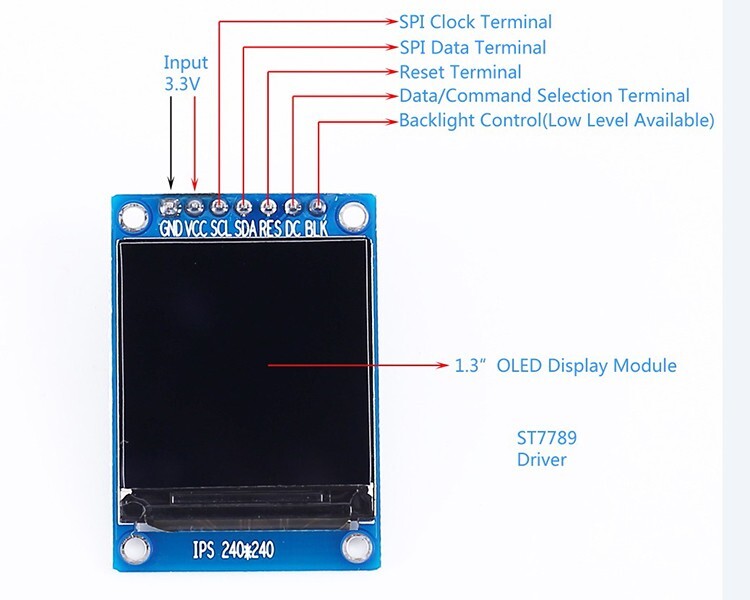

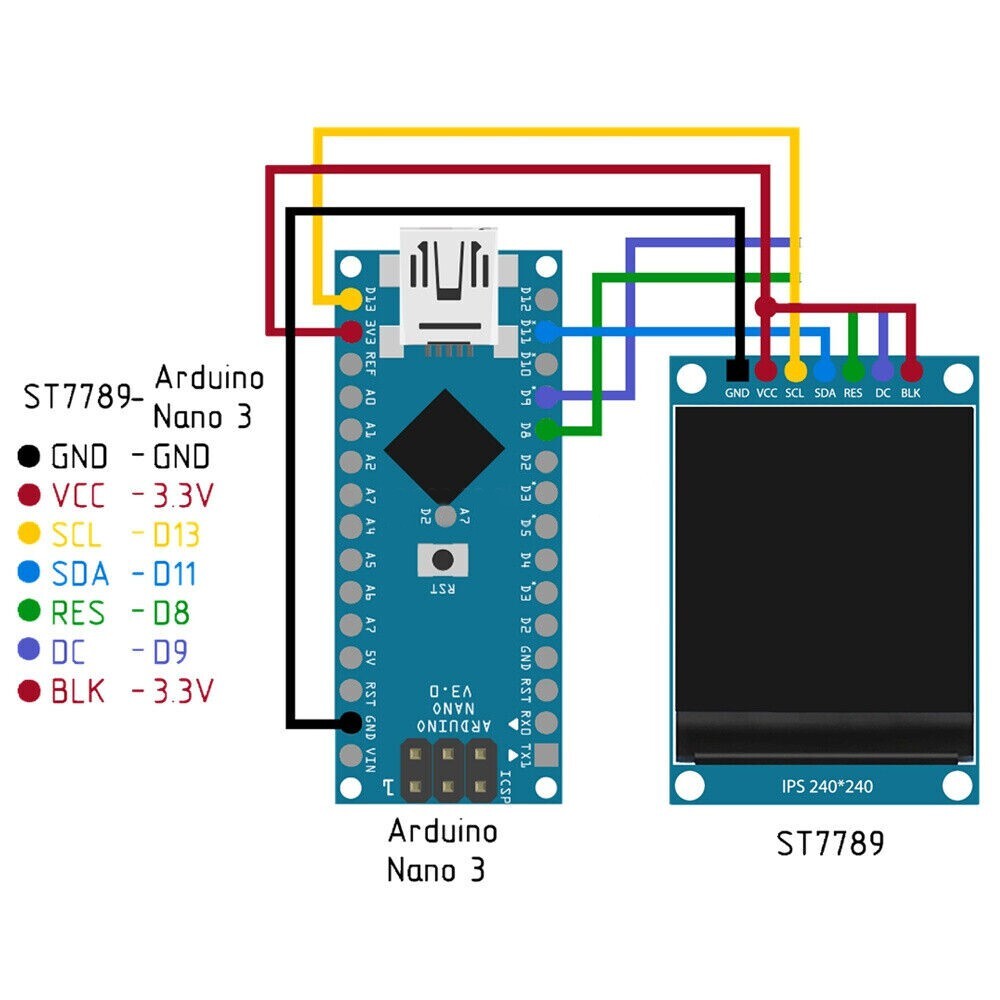

GND: ground
VCC:3.3-5.0V（DC）
SCL :SPI clock line
SDA :SPI data line
RES ：Reset interface
DC ：SPI data/ selection
BLK ：Backlight control, default floating, low level off
color: blue
Material: Metal + PC

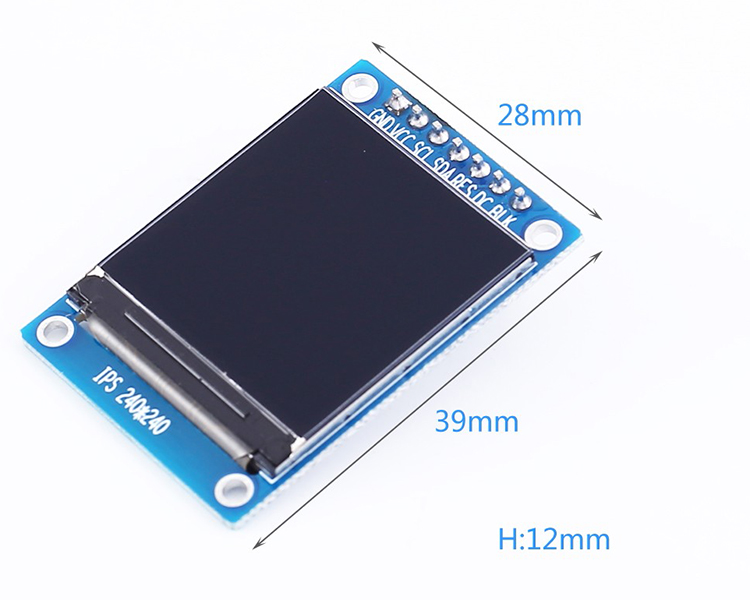

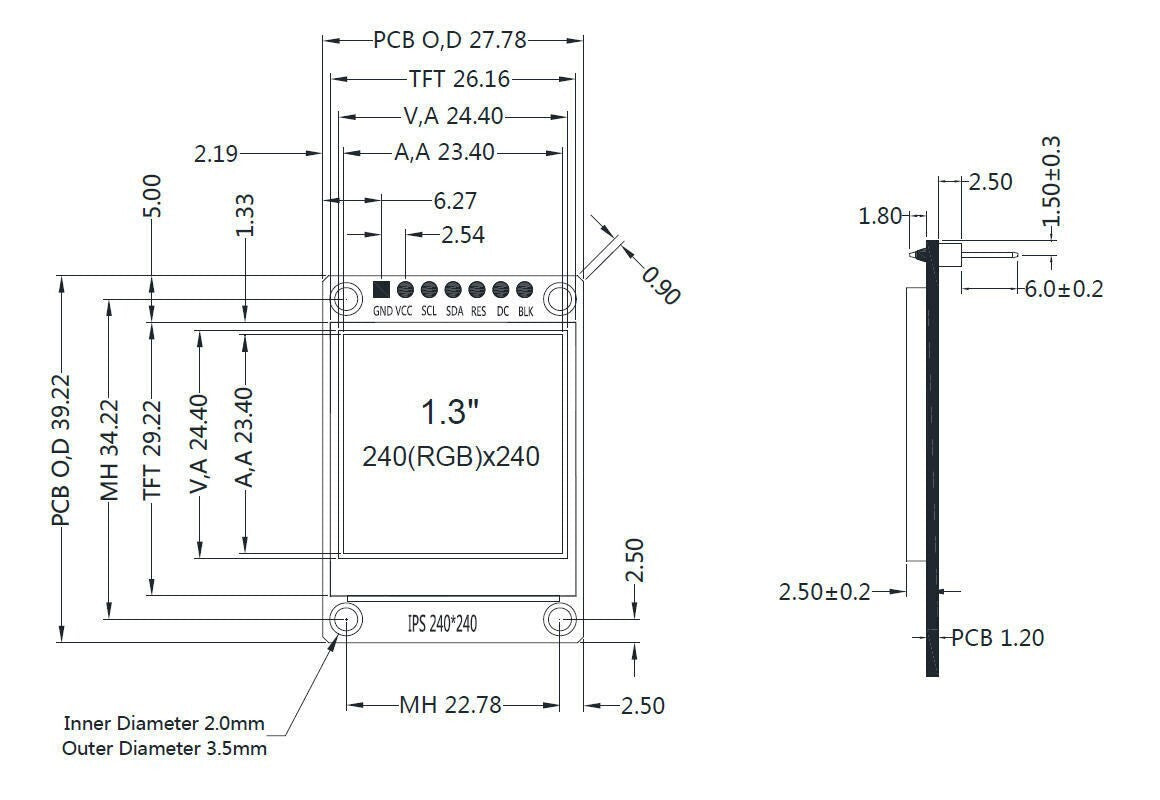

size:27.78*39.22mm
LCD Size: 1.3 Inch

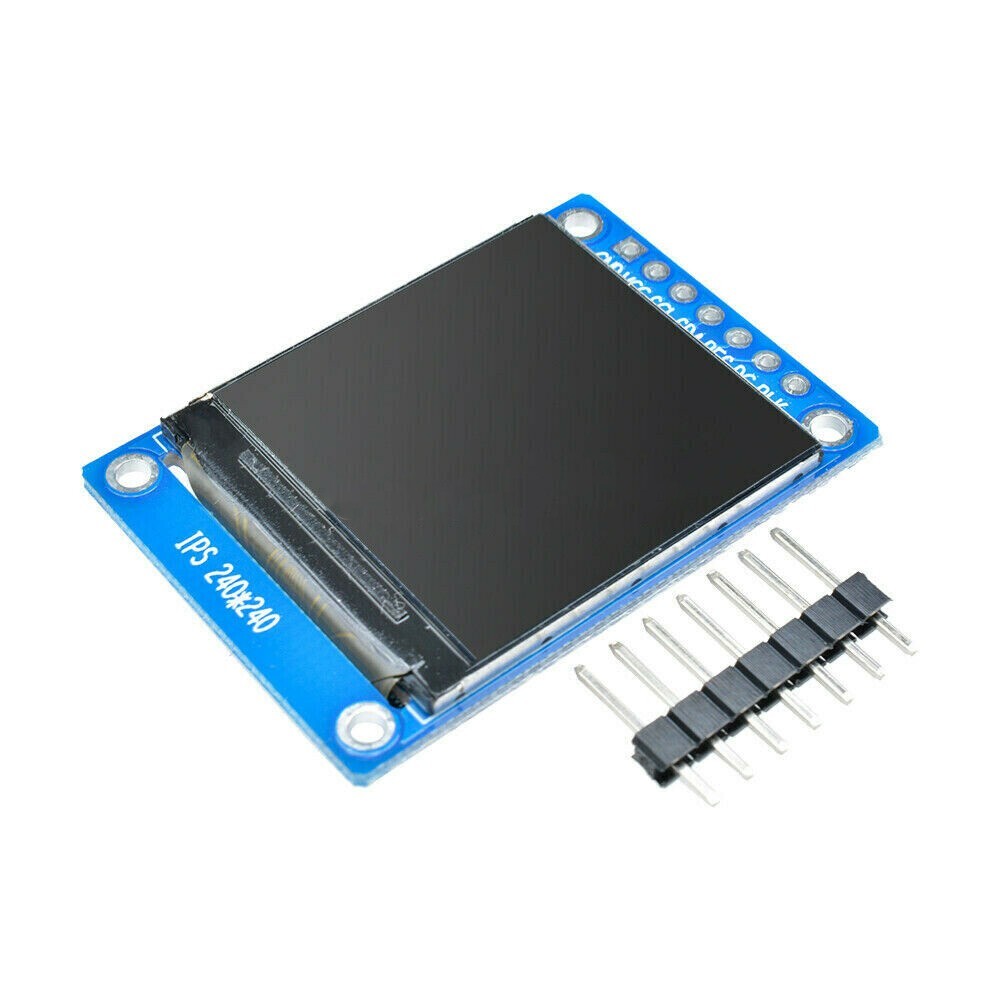

Package Contents:
3 units x 1.3-inch, 7 Pin TFT Display

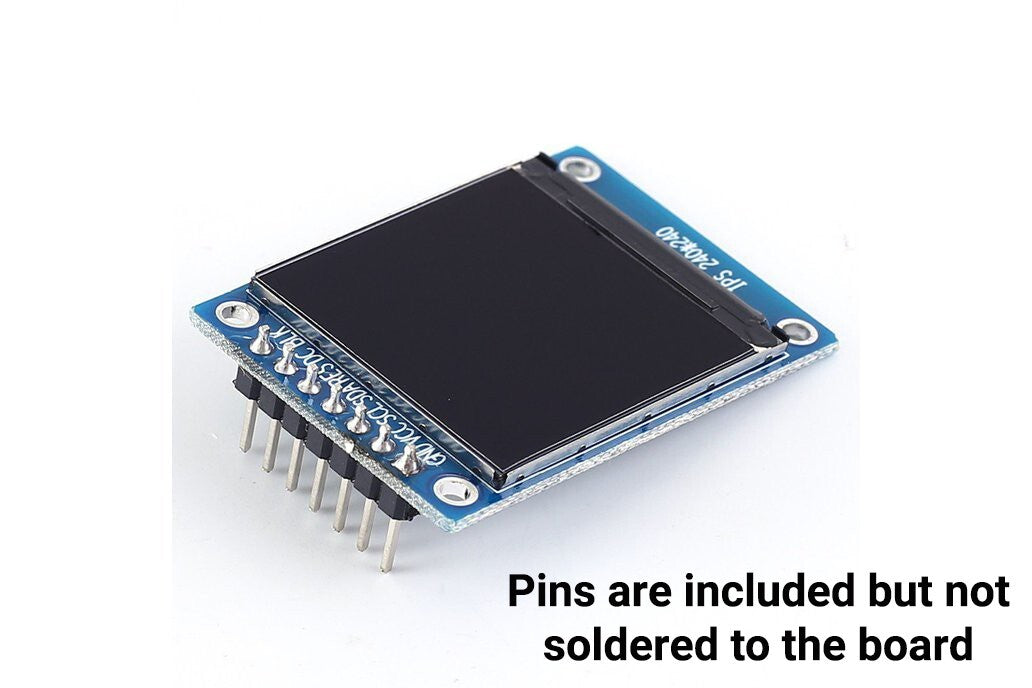

3 units x header pins (not soldered to the board）
