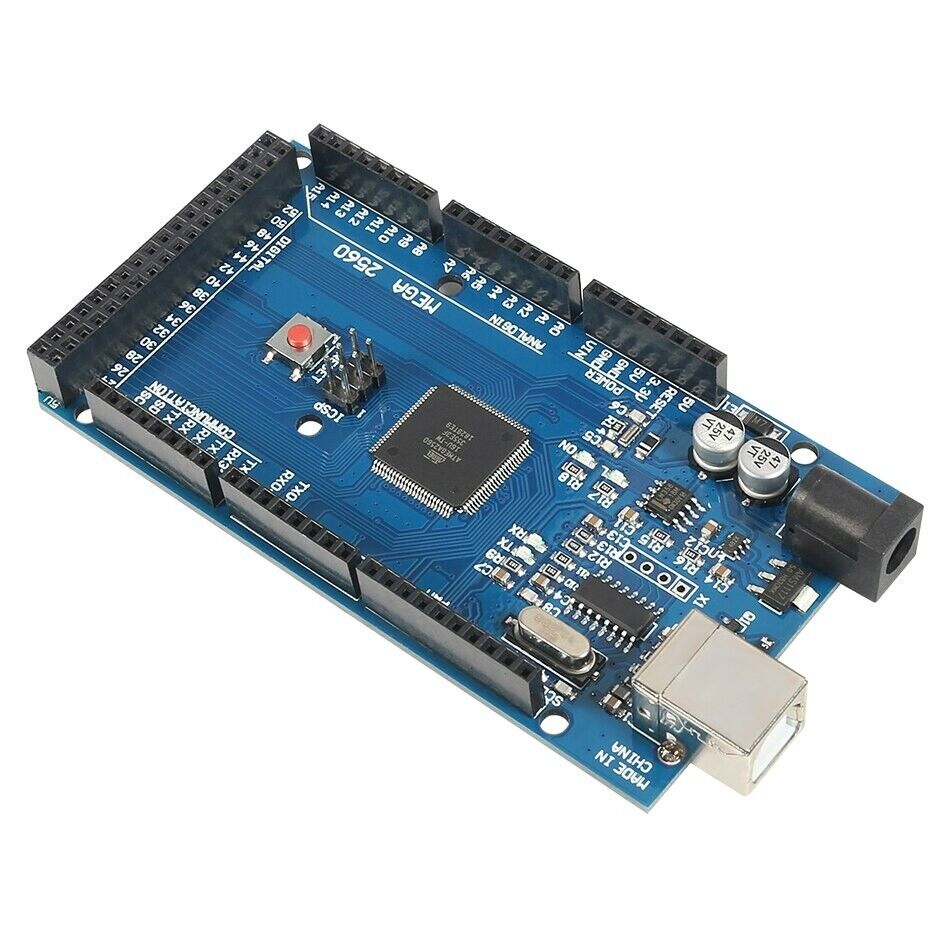

**3 units!** ATmega 2560 R3 CH340 board, Compatible with Arduino MEGA IDE

**3 units!** ATmega 2560 R3 CH340 board, Compatible with Arduino MEGA IDE

Regular price $47.97 USD
Regular price Sale price $47.97 USD
Sale Sold out
Shipping calculated at checkout.

ATmega 2560 R3 ATMEGA 2560, CH340 Board - Compatible with Arduino IDE



 The ATMEGA 2560 R3 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The ATMEGA 2560 board is compatible with most shields designed for the Arduino boards Uno and the former boards Duemilanove or Diecimila.



The ATMEGA 2560 is designed for projects that require more I/O lines, more sketch memory and more RAM. With 54 digital I/O pins, 16 analog inputs and a larger space for your sketch it is the recommended board for 3D printers and robotics projects. This gives your projects plenty of room and opportunities maintaining the simplicity and effectiveness of the platform.



 Specs:



Microcontroller ATmega2560





Operating Voltage 5V





Input Voltage (recommended) 7-12V





Input Voltage (limit) 6-20V





Digital I/O Pins 54 (of which 15 provide PWM output)





Analog Input Pins 16





DC Current per I/O Pin 20 mA





DC Current for 3.3V Pin 50 mA





Flash Memory 256 KB of which 8 KB used by bootloader





SRAM 8 KB





EEPROM 4 KB





Clock Speed 16 MHz





LED_BUILTIN 13





Length 101.52 mm





Width 53.3 mm





Weight 37 g






What's in the Box: 3 units of ATMEGA 2560 R3 boards
