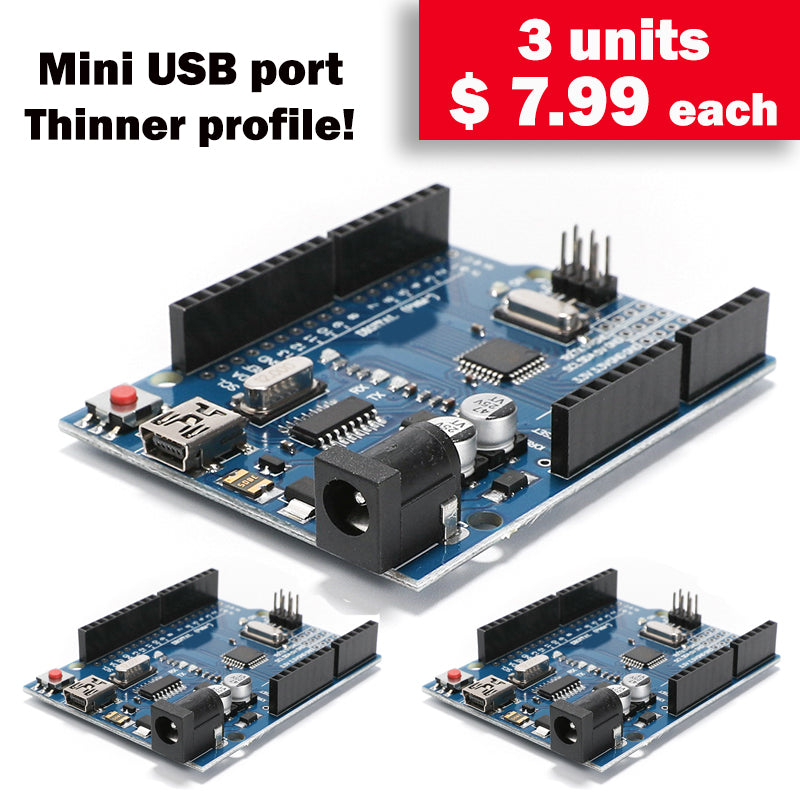

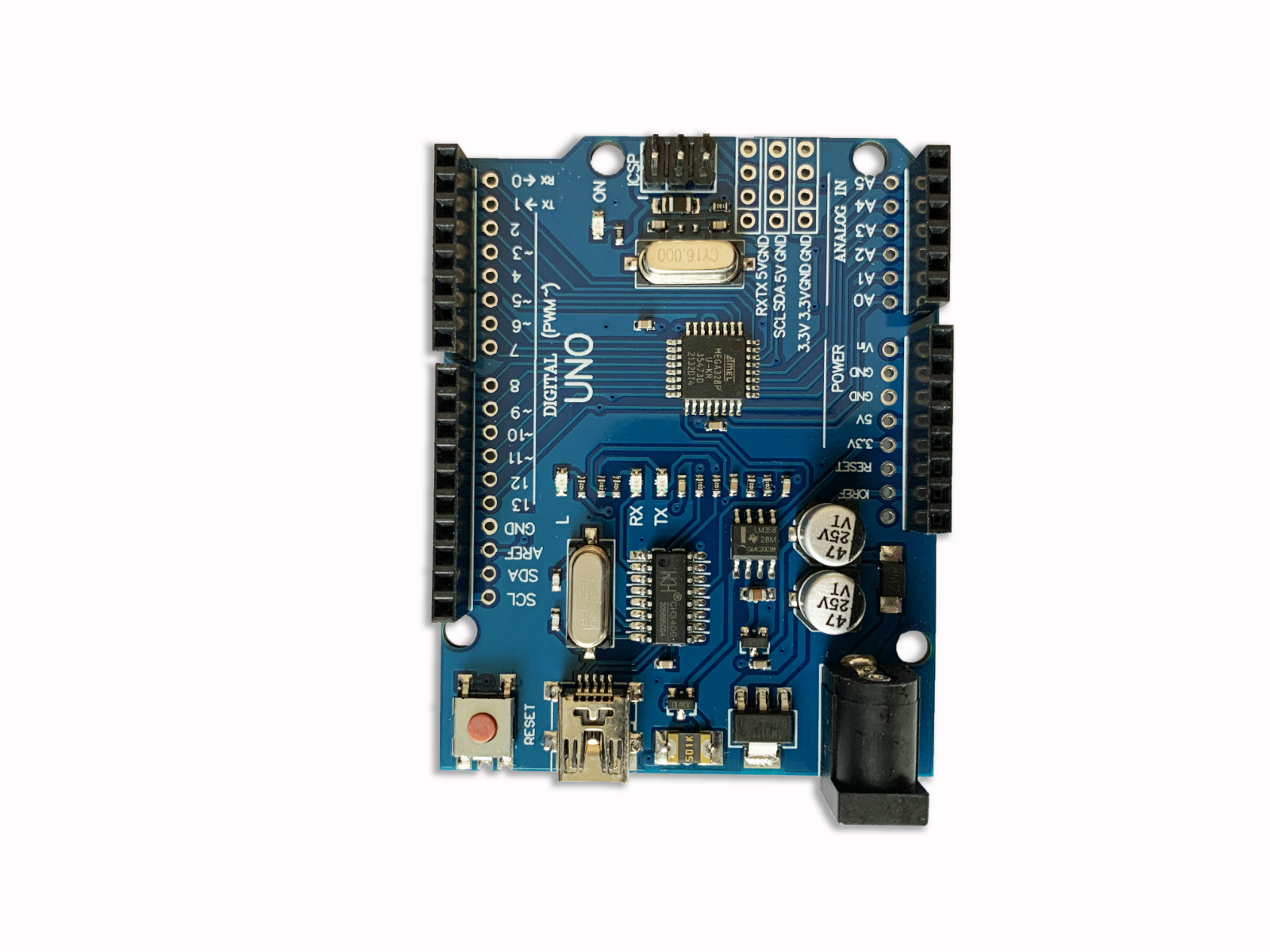

**3 units** NEW Board ATmega328P CH340G Mini USB compatible with Arduino UNO IDE
**3 units** NEW Board ATmega328P CH340G Mini USB compatible with Arduino UNO IDE
Couldn't load pickup availability
This is the best board to get started with electronics and coding. If this is your first experience tinkering with the platform, the board is the most robust board you can start playing with. This is the most used and documented board.
The UNO is a microcontroller board based on the ATmega328P.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header and a reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
The board is the first in a series, and the reference model for the platform.

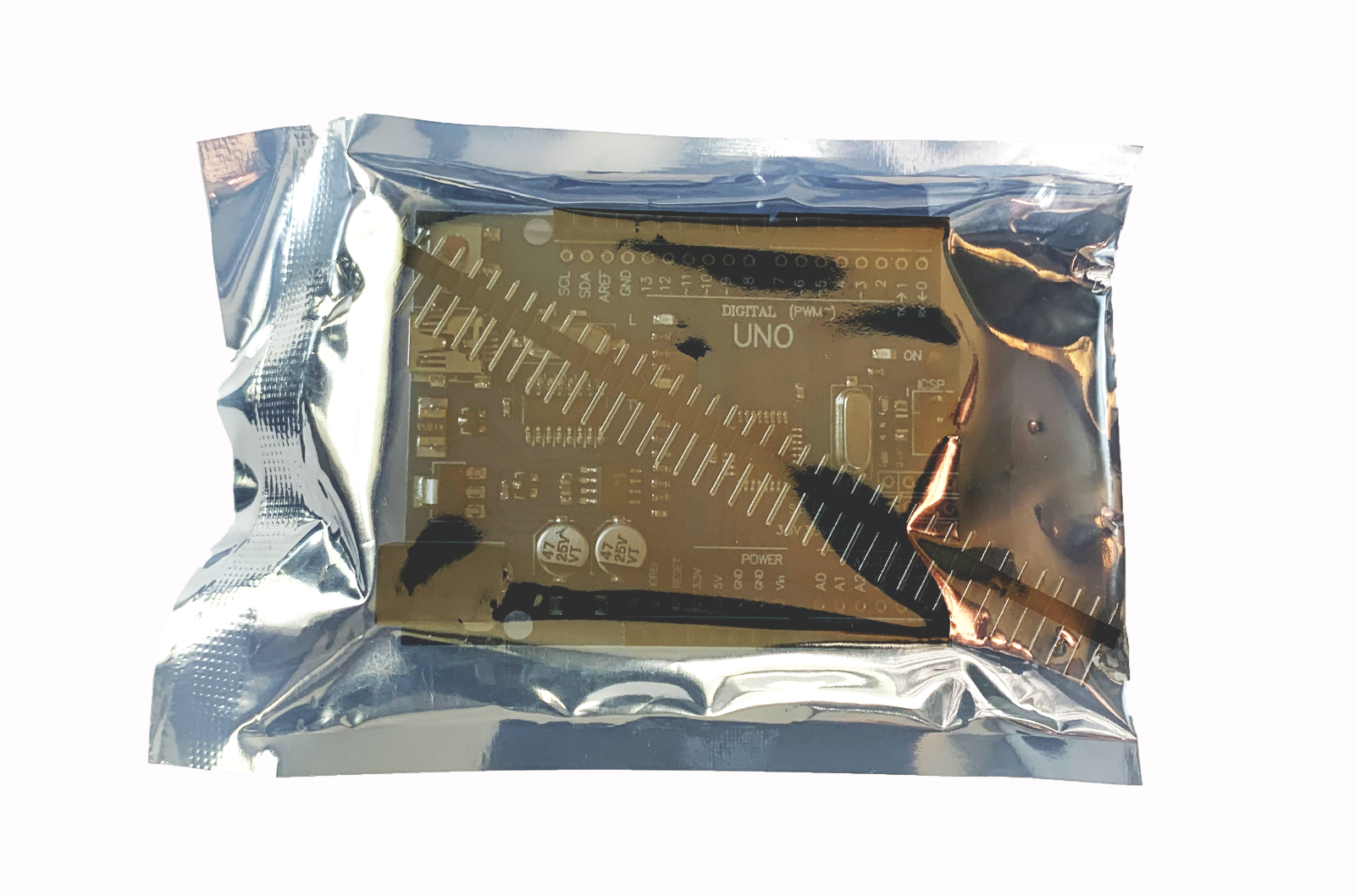

What's in the box: 3 boards with Mini-USB connector and pins.
Tech Specs:
|
Microcontroller |
ATmega328P |
|
Operating Voltage |
5V |
|
Input Voltage (recommended) |
7-12V |
|
Input Voltage (limit) |
6-20V |
|
Digital I/O Pins |
14 (of which 6 provide PWM output) |
|
PWM Digital I/O Pins |
6 |
|
Analog Input Pins |
6 |
|
DC Current per I/O Pin |
20 mA |
|
DC Current for 3.3V Pin |
50 mA |
|
Flash Memory |
32 KB (ATmega328P) of which 0.5 KB used by bootloader |
|
SRAM |
2 KB (ATmega328P) |
|
EEPROM |
1 KB (ATmega328P) |
|
Clock Speed |
16 MHz |
|
LED_BUILTIN |
13 |
|
Length |
68.6 mm |
|
Width |
53.4 mm |
|
Weight |
25 g |
