5-Pack D1 Mini NodeMCU Board WiFi LUA ESP8266 ESP-12 WeMos Microcontroller 5X

D1 Mini Node MCU Lua Wi-Fi IoT Development Board ESP8266 CH340 module

Open-source, Interactive, Programmable, Low cost, Simple, Smart, WI-FI enabled

 FOR Arduino-like hardware IO

 Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware.

Code just like Arduino, but interactively in Lua script.

 Nodejs style network API

Event-driven API for network applications, which facilitates developers writing code running on a 5mm*5mmsized MCU in Nodejs style.

Greatly speed up your IOT application developing process.

Specs:

·       D1 Mini WiFi board based on ESP8266

 ·       Compatible with Arduino and NodeMcu

·       This is new version V2

·       Version 2 Use BRT (Bias Resistor Transistor) thus making it easier going into flash mode

·       Stabler operation than Old Version 1.0 board

·       11 digital input/output pins, all pins have interrupt/PWM/I2C/one-wire supported (except D0)

·       1 analog input (3.3V max input)

·       Built-In Micro USB Port

·      On board reset button

·       Microcontroller: ESP-8266EX

·       Operating Voltage: 3.3V (Max)

·       Please don't connect to power source which is higher than 3.3 Volts

·       Digital I/O Pins 11

·       1 analog input

·       Clock Speed: 80MHz/160MHz

·       Flash: 4M bytes

·       Length: 34.2mm

·       Width: 25.6mm

·       Weight: 10g

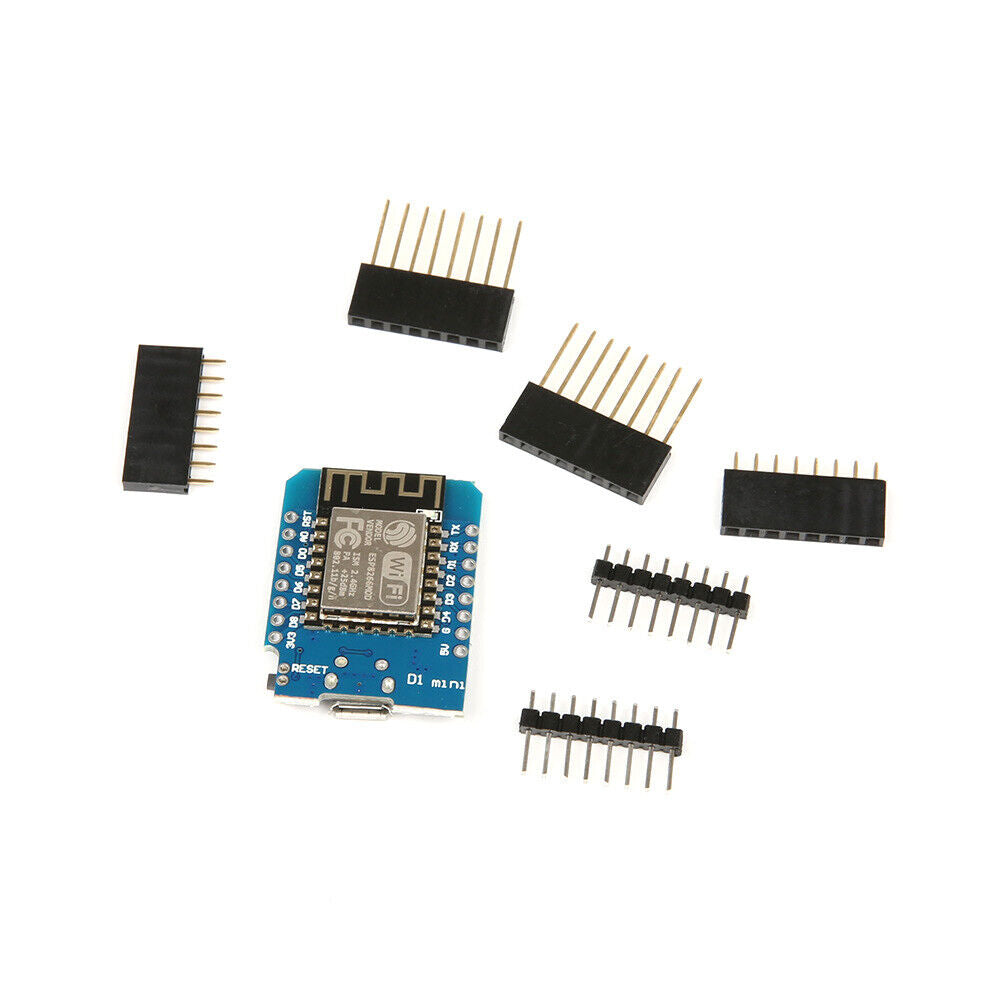

What’s in the box: 5 x D1 Mini Node MCU Lua WIFI IoT development board based on ESP8266-12E and pins as shown in picture
