ATMEGA328P V3.0 Board + Expansion Terminal Adapter Shield for Arduino Nano IDE

ATMEGA328P V3.0 Board + Expansion Terminal Adapter Shield for Arduino Nano IDE

Regular price $14.25 USD
Regular price Sale price $14.25 USD
Sale Sold out
Shipping calculated at checkout.

ATMEGA328P V3.0 Board plus Expansion Terminal Adapter Shield - Compatible with Arduino Nano V3.0 IDE


About the Board:

Atmega328P V3.0 CH340 Nano ATmega328P

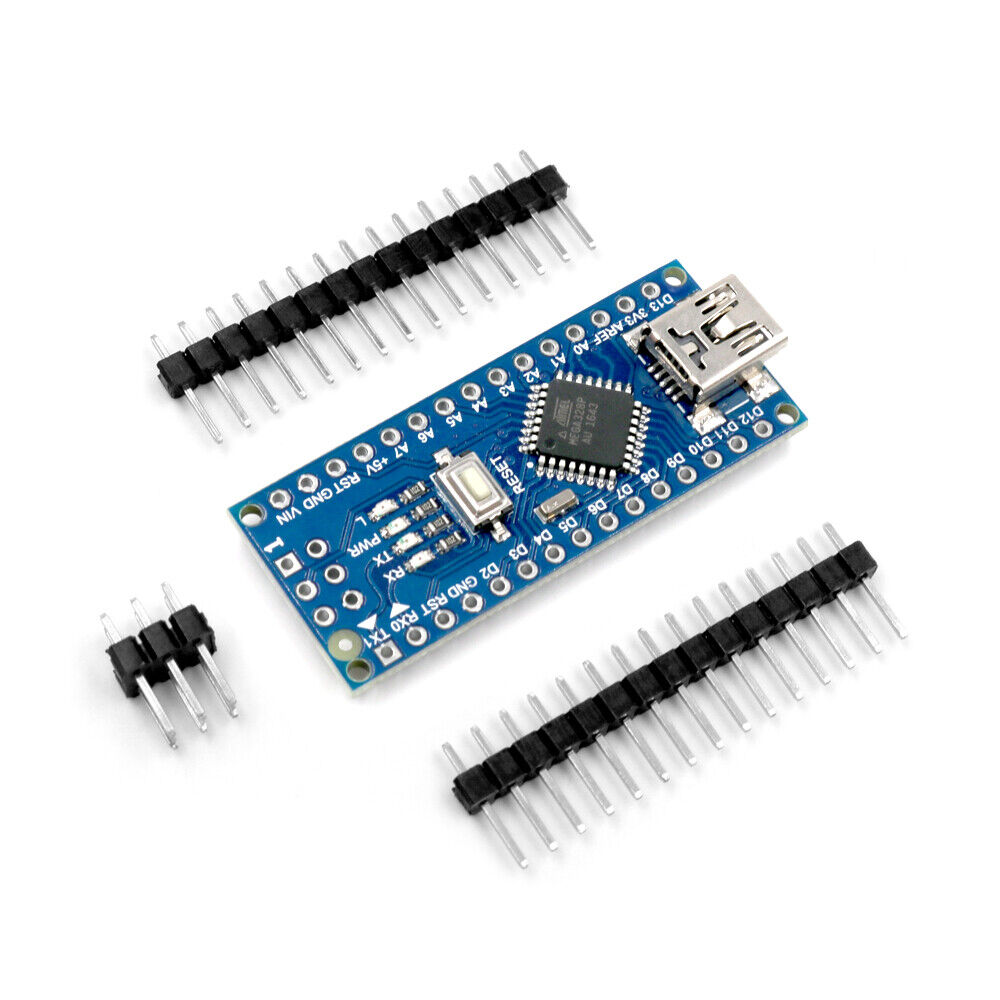

This is a small, complete, and breadboard-friendly board based on the ATmega328 (Nano 3.x).

It has all the functionality and features of a full-size development board; it works with a Mini-B USB cable and has no DC power jack.

It may also be powered by batteries.

The pins are included in the package but are not soldered on the board. You may solder them as needed for your project.


Tech Specs:

Microcontroller               ATmega328P-AU

Operating Voltage          5 V

8 Analog IN Pins              A0 ~ A7

14 Digital I/O Pins           TX, RX, D2 ~ D13

6 PWM ports                   D3, D5, D6, D9, D10, D11

Flash Memory                 32 KB of which 2 KB used by bootloader

SRAM                                 2 KB

Clock Speed                     16 MHz

EEPROM                           1 KB

DC Current per I/O Pin   40 mA (I/O Pins)

Input Voltage                  7-12 V

Power Consumption      19 mA

PCB Size                            18 x 45 mm

Weight                              7 g




About the Terminal Expansion Board:

This is an expansion module for use with compatible boards.

No assembly required, ready-to-use.

Terminals labeled according to the Nano original label.

Easy to use

You can purchase it with or without the ATnano 3.0 board.

Weight: 76g

Size: 2.21" x 1.65" x 0.50" (L* W* H)
