CH340 ATmega 328P R3 Board Compatible with Arduino UNO IDE + Case + Shield

This listing os for the Complete Set, including the following three items:

• ATmega328P CH340 Board compatible with Arduino UNO R3 IDE
• Acrylic Case for Arduino UNO R3 Board
• Prototype Shield with Breadboard for Arduino UNO R3 Board (with 2 SMD LEDs, reset and switch buttons!)

The best board to get started with electronics and coding. If this is your first experience tinkering with the platform, this is the most robust board you can start playing with. This is the most used and documented board.

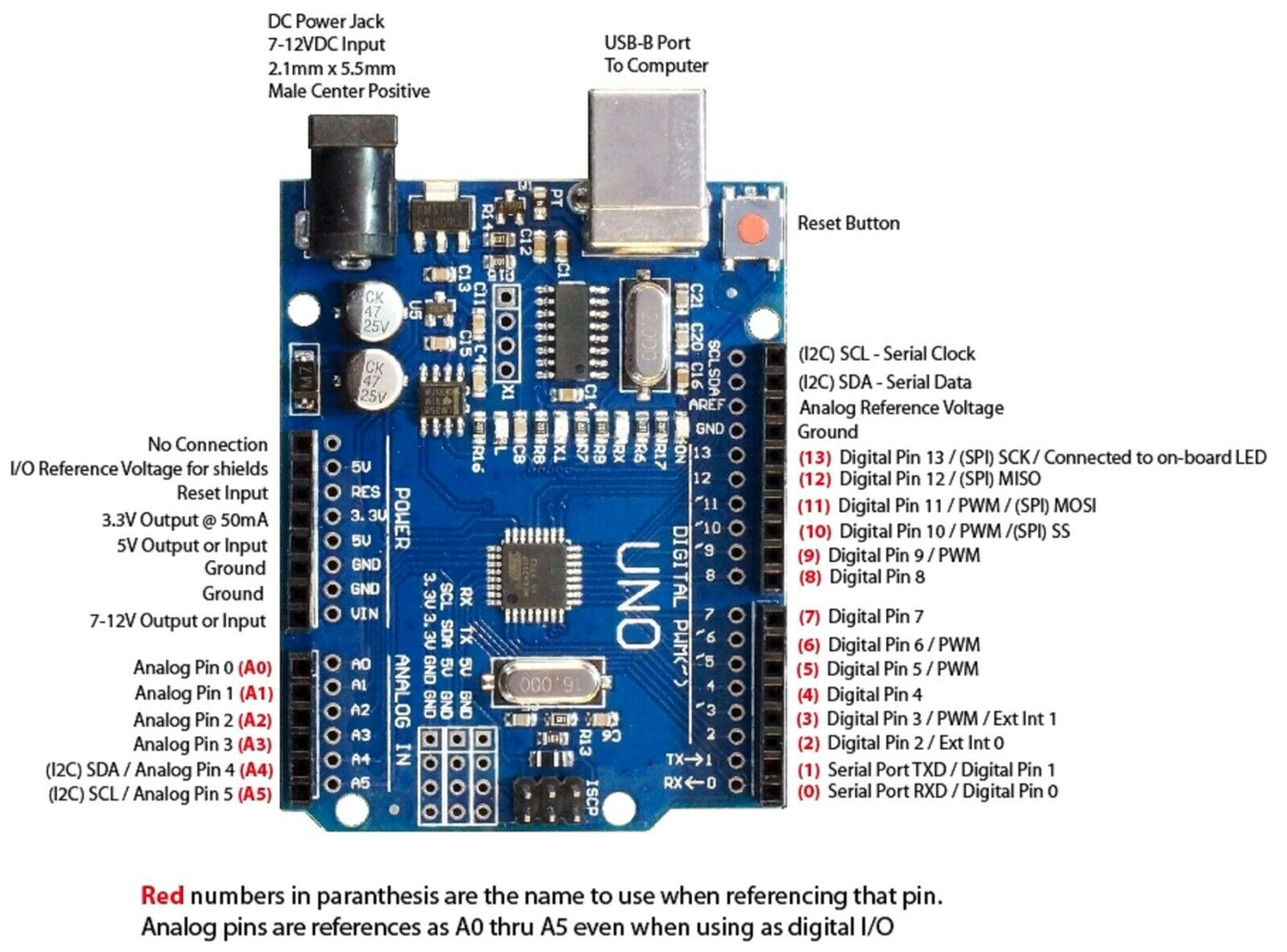

This is a microcontroller board based on the ATmega328P.

It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header and a reset button.

It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. You can tinker with your board without worrying too much about doing something wrong.

The board is the first in a series, and the reference model for the platform.

 Tech Specs:
