HC-SR04 Ultrasonic Distance Transducer Sensor Module for Arduino + bracket

HC-SR04 Ultrasonic Distance Transducer Sensor Module for Arduino + bracket

Regular price $3.50 USD
Regular price Sale price $3.50 USD
Sale Sold out
Shipping calculated at checkout.

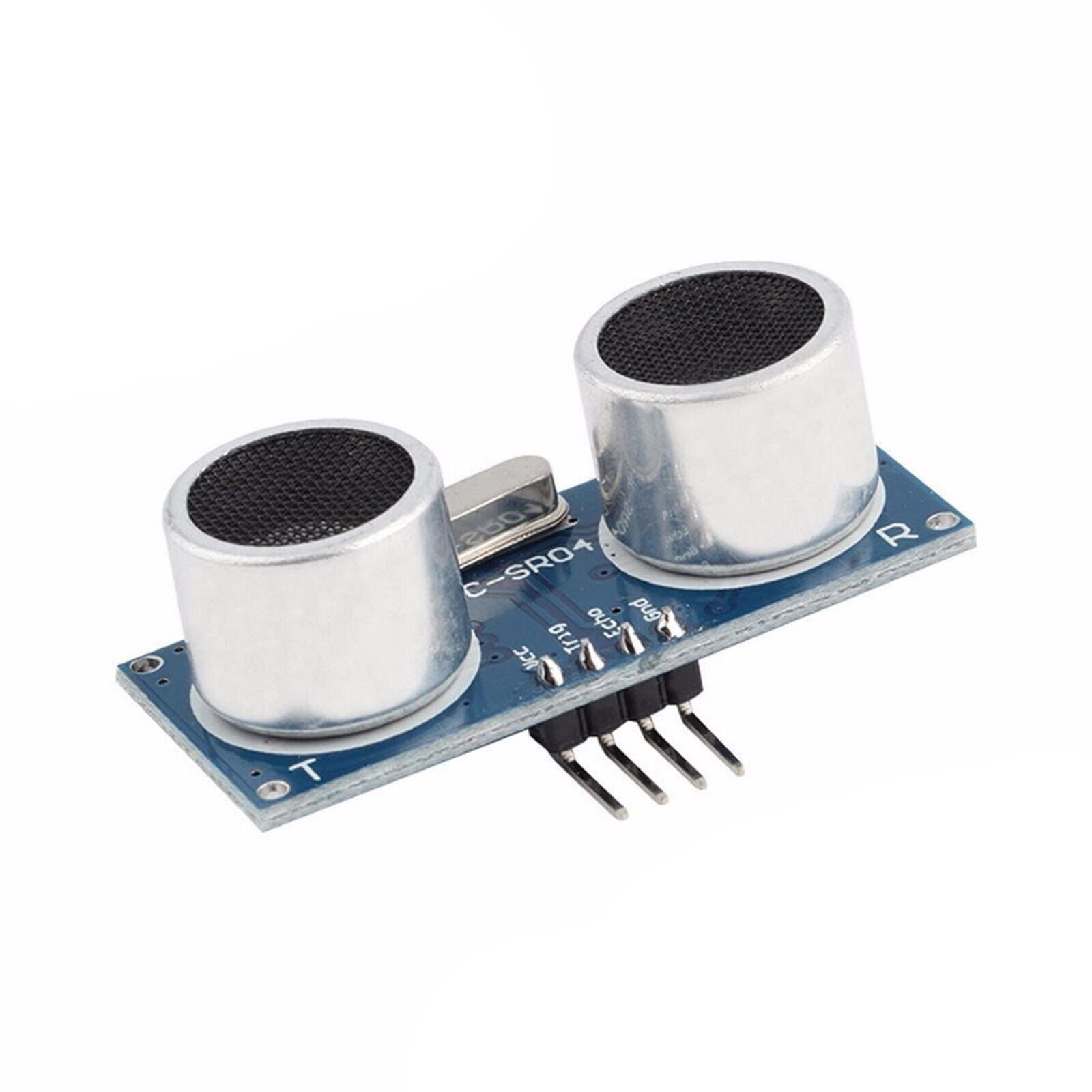

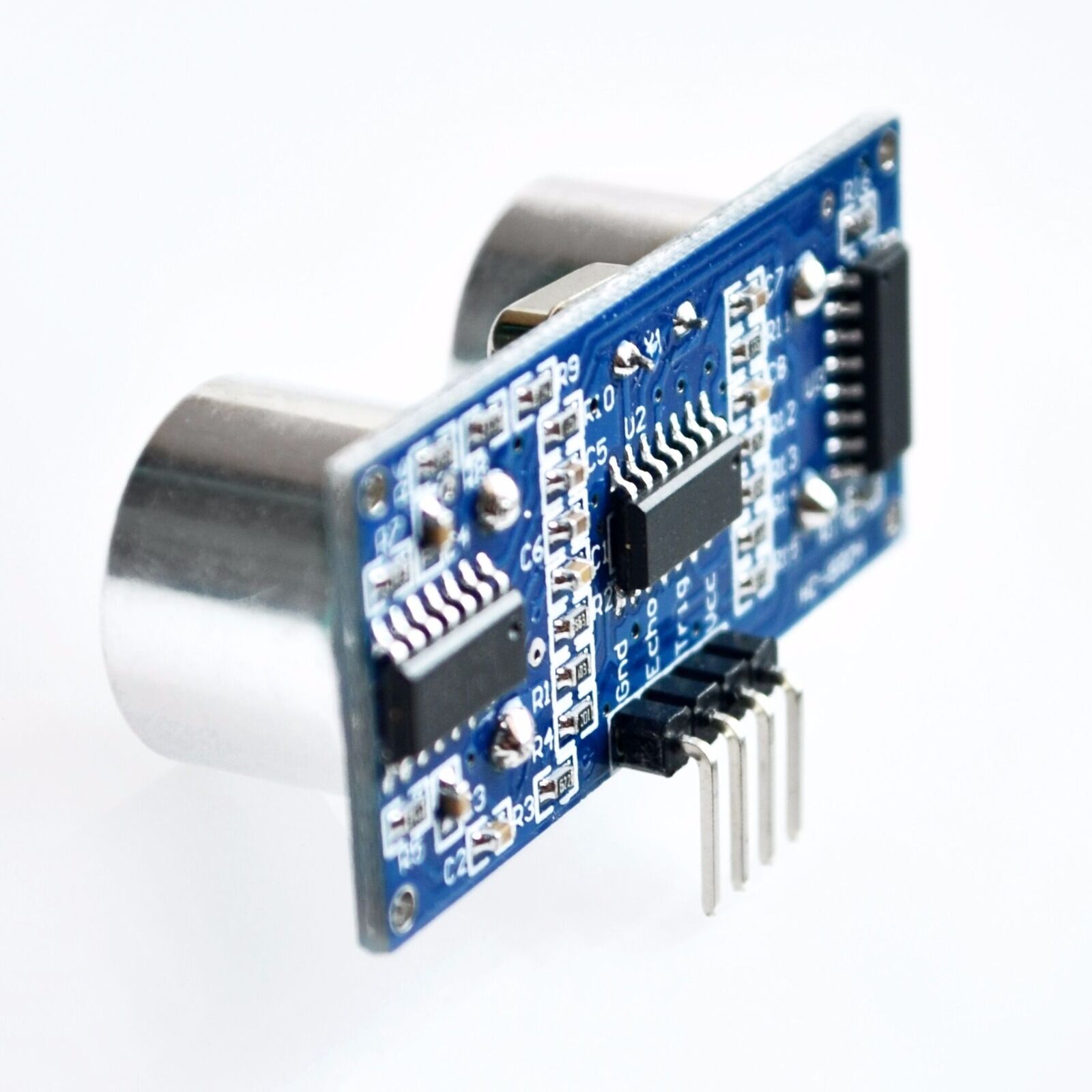

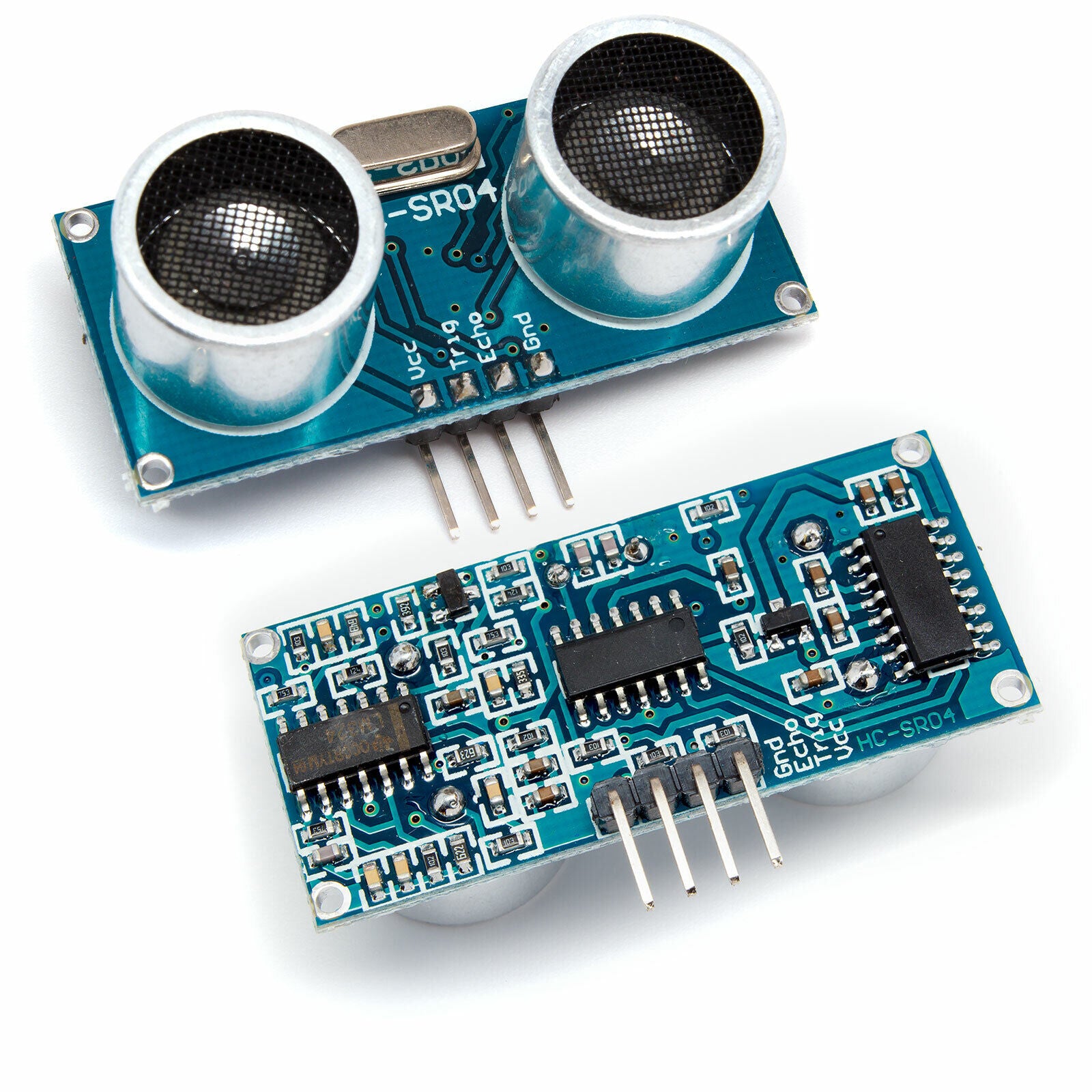

HC-SR04 Ultrasonic Distance Measuring Transducer Sensor Module for Arduino

The HC-SR04 ultrasonic sensor uses sound waves to determine the distance to an object. It offers excellent non-contact range detection with high accuracy and stable readings from 2 cm to 400 cm (1 inch to 13 feet) with an accuracy of 3mm, in an easy-to-use package. Its operation is not affected by sunlight or black material like optical rangefinders are (although acoustically soft materials like cloth can be difficult to detect). The HC-SR04 comes complete with an integrated ultrasonic transmitter and receiver.


Product Specifications:

  • Working Voltage: 5 VDC
  • Static current: Less than 2mA.\
  • Output signal: Electrical frequency signal, high level 5V, low level 0V
  • Sensor angle: Not more than 15 degrees
  • Detection distance: 2cm - 400cm
  • Accuracy: Up to 3mm
  • Input trigger signal: 10us TTL impulse
  • Echo signal: Output TTL PWL signal
  • Item size: 44mm * 20mm * 15mm
  • Net weight: 11grams

Mode of connection:

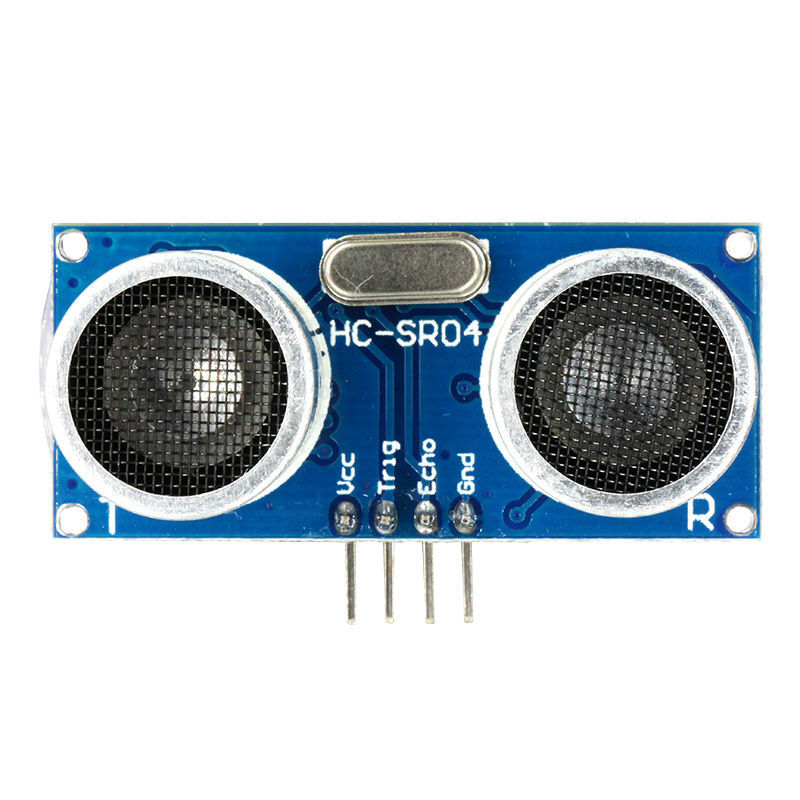

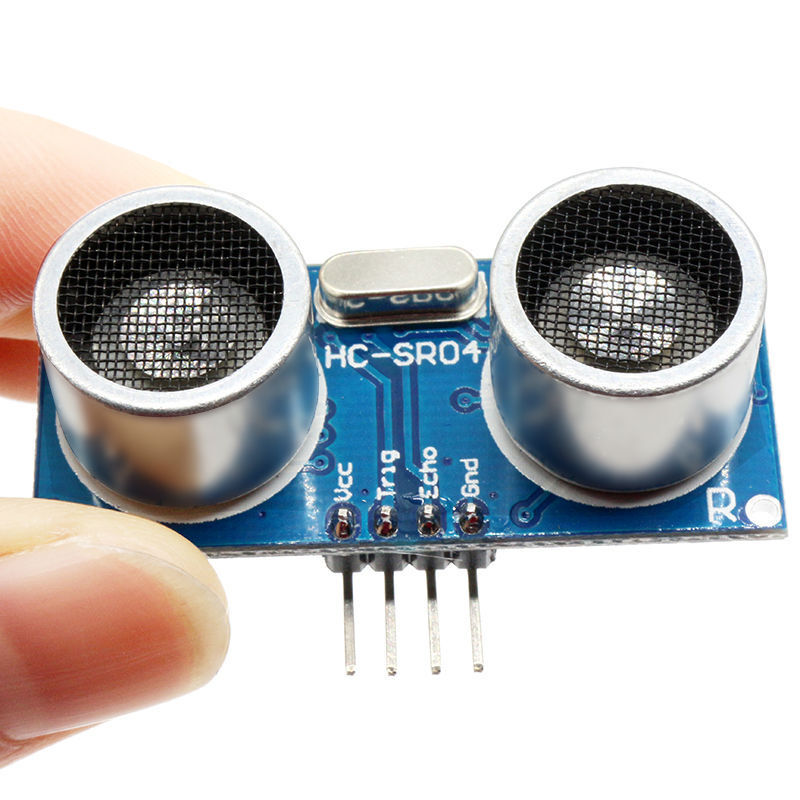

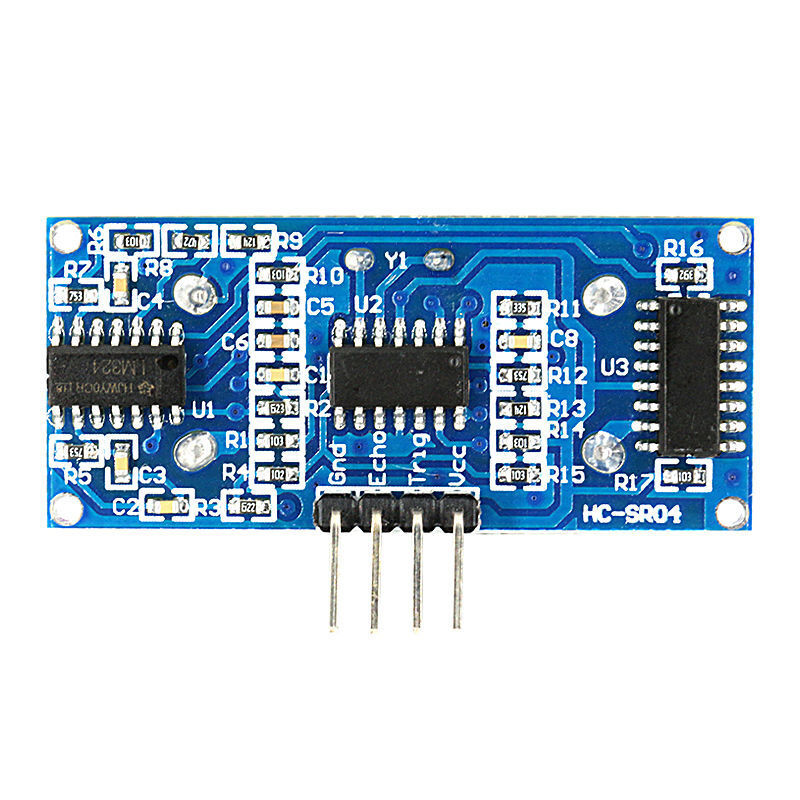

  • VCC: 5V DC supply input
  • Trigger (T): Control signal input (10us TTL impulse)
  • Echo (R): Echo signal output, duration is time from transmit to receive
  • Ground GND: Ground wire


HC-SR04 Ultrasonic Module Operation:

Supply module with 5V, the Echo (R) output will be 5V while obstacle is in range, or 0V if it is not. Duration of Echo signal is used to calculate distance to object (see below).

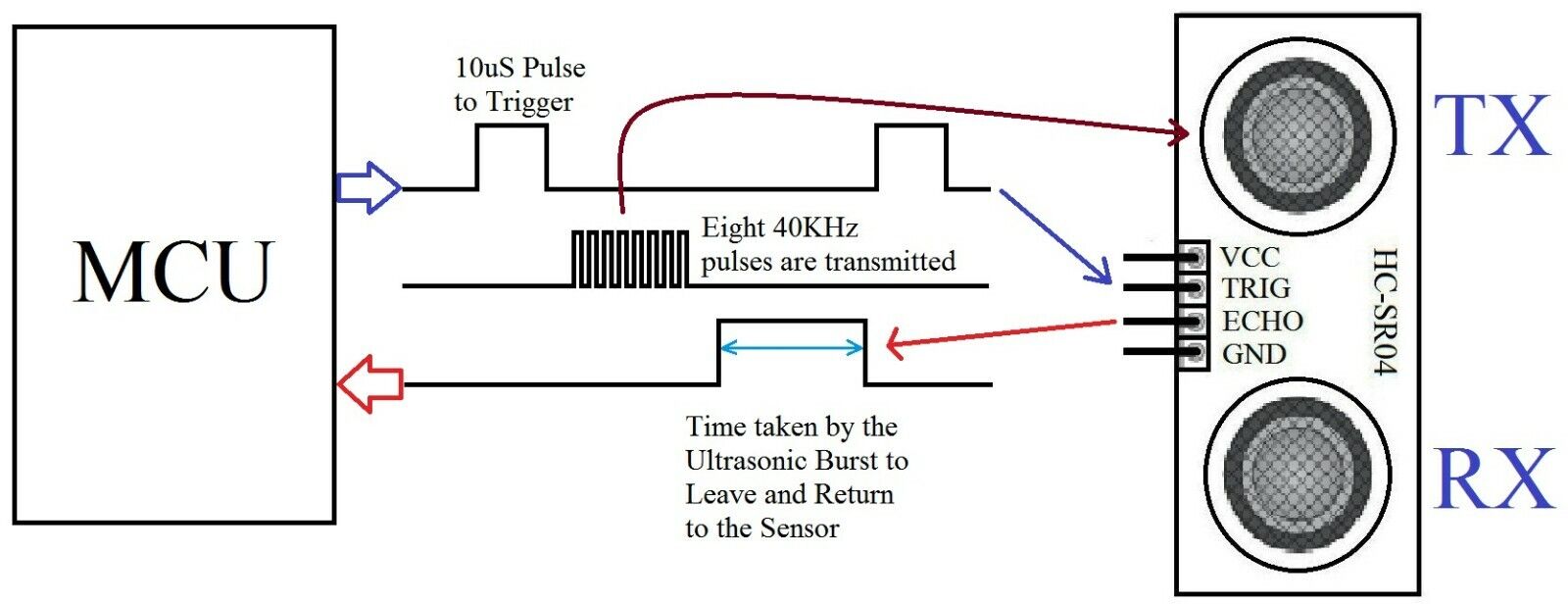

Use the IO port Trigger (T) to trigger ranging by applying a 10 us high level (TTL) trigger signal. The module will send an output square wave signal through its output acoustic transducer automatically and will test if there is any signal returned to its input acoustic sensor.

If there is an acoustic signal returned, The ECHO (R) IO port will have a high-level signal. The duration of the high-level signal is the time from transmit to receive using the ultrasonic transducers.

Distance to object from module = Duration of ECHO (R) high level signal * sound velocity (340m/s) / 2

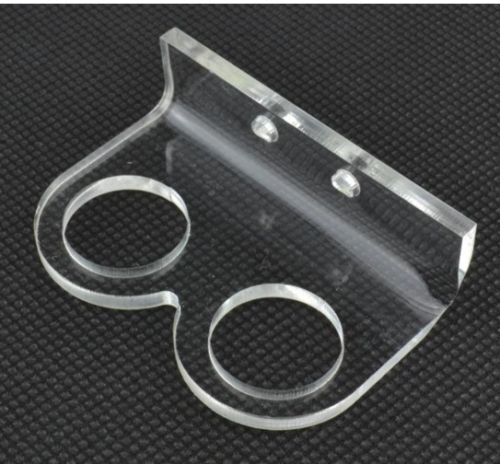

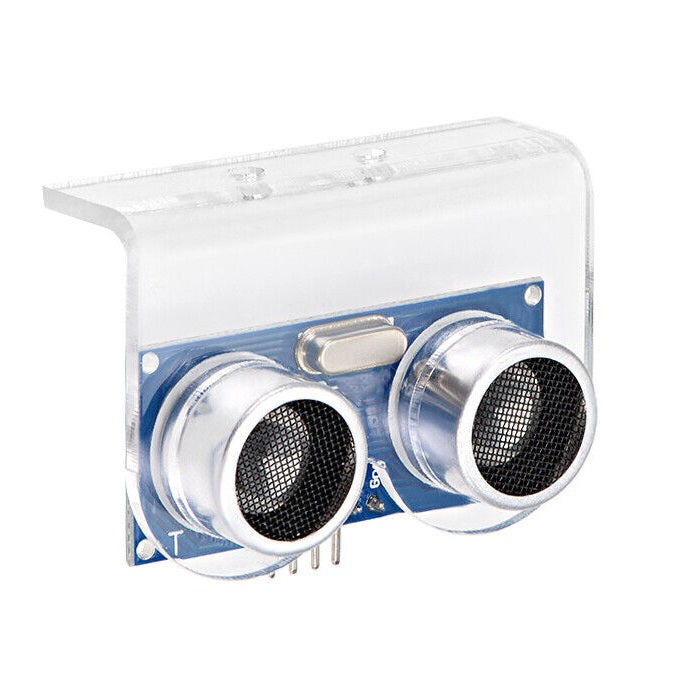

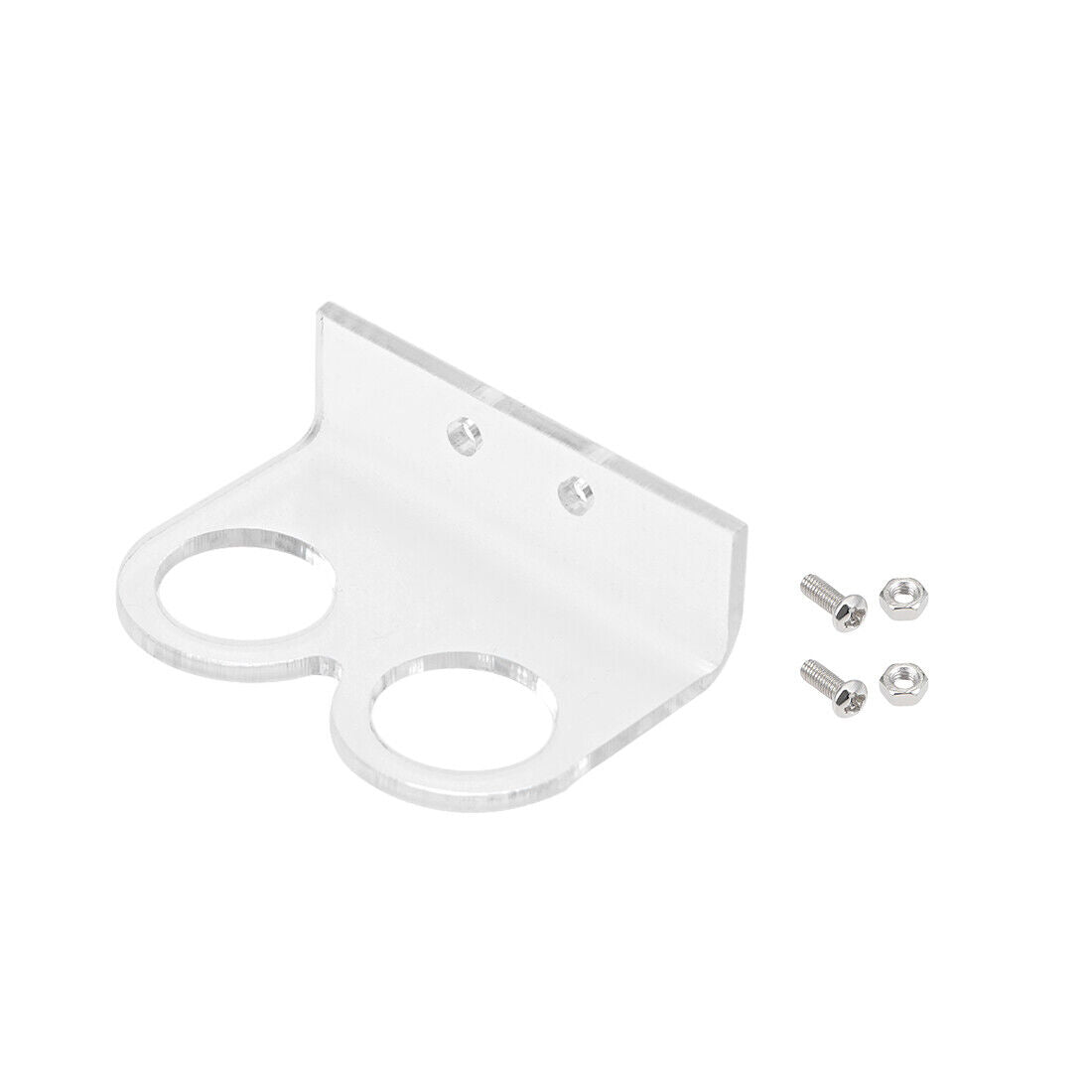

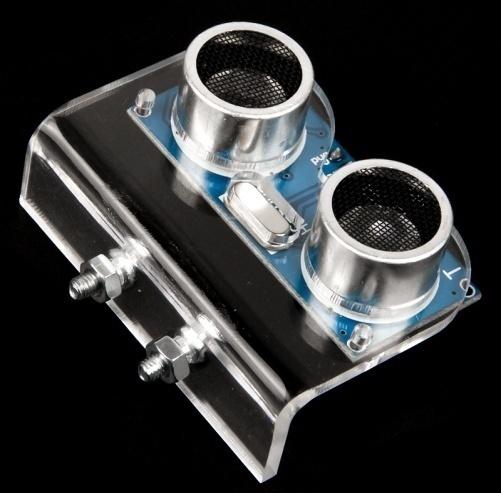

Mounting Bracket Holder Acrylic for HC-SR04 Ultrasonic Sensor


If you ever played with these Ultrasonic Sensors (HC-SR04) you know how important it is to have a steady platform to attach them to.

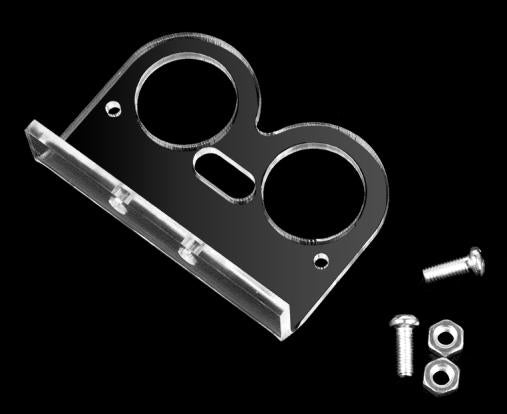

This affordable precision-made bracket is just the perfect solution, it is made for these sensors and allow you to precisely locate it and securely fasten it to wherever your project requires.



Material: Acrylic

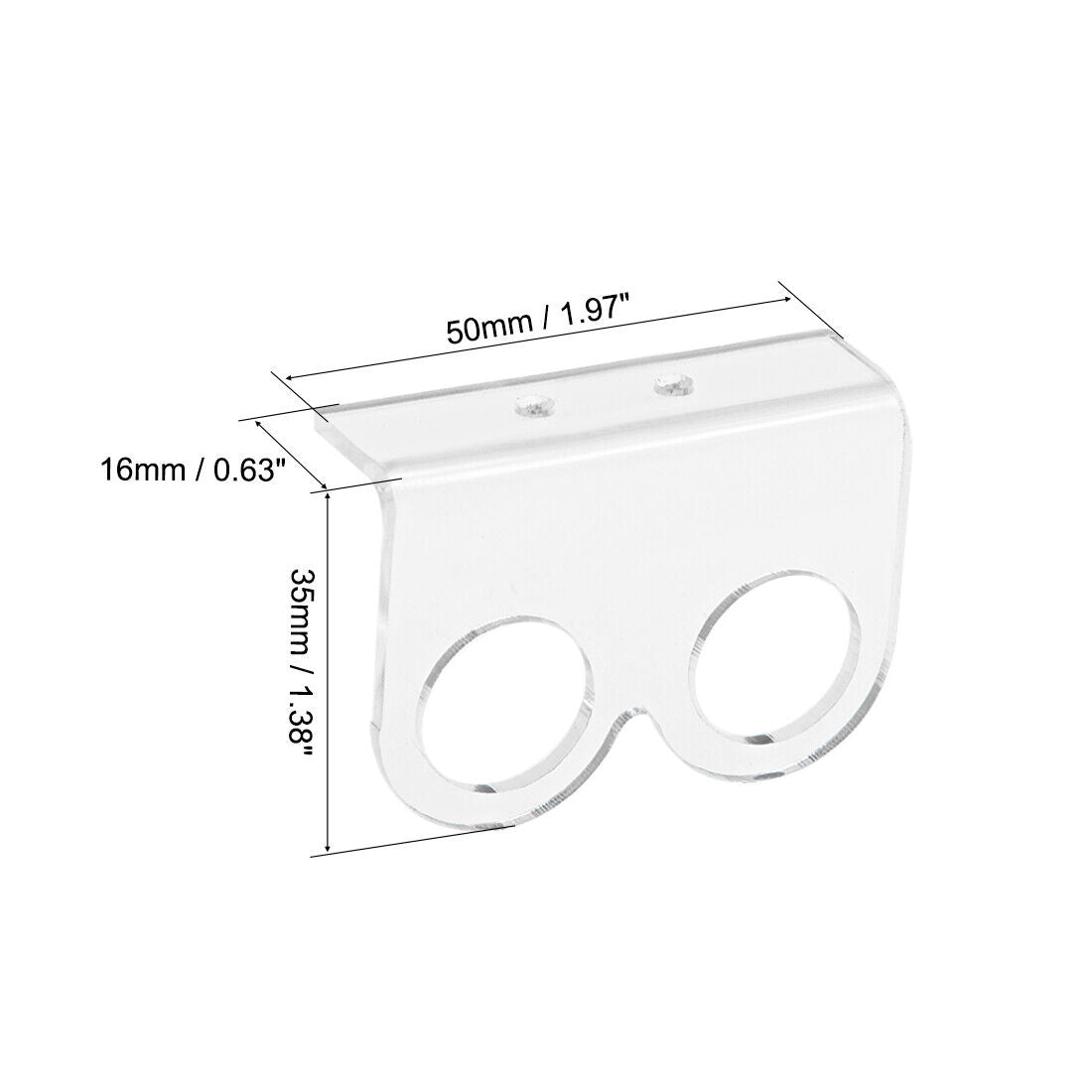

Size: 50 x 35 x 16mm / 1.97" x 1.38" x 0.63" (L*W*T)

Mounting Hole Dia.: 3mm / 0.12"

Mounting Hole Distance: 13mm / 0.51"


Package includes one or both of the items below (make your selection):

1 x HC-SR04 Ultrasonic Distance Sensor Module

1 x HC-SR04 Support Bracket with screws and nuts
