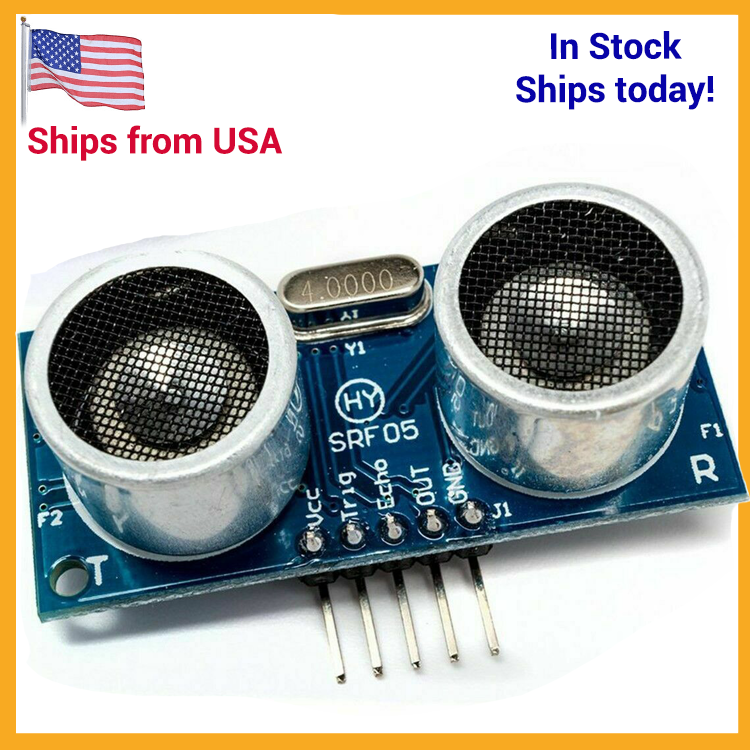

HY-SRF05 Ultrasonic Distance Measuring Transducer Sensor Module for Dev boards

High Precision Ultrasonic Distance Sensor, HY-SRF05

High Precision, the new generation!

This model is an upgrade from the lower precision HC-SR04.

This has 5 pins and can be used in 1-pin trigger/echo or 2-pin.

Ultrasonic sensors overcome many of the weaknesses of IR sensors - they provide distance measurement regardless of color and lighting of obstacles.

They also provide lower minimum distances and wider angles of detection to guarantee that obstacles are not missed by a narrow sensor beam.

High quality at affordable prices! Select your package, 3 units or 5 units.

What's in the box:

3 units of High Precision Ultrasonic Distance Sensor, HY-SRF05

OR

5 units of High Precision Ultrasonic Distance Sensor, HY-SRF05

Specifications

Trigger Pin Format: 10 uS digital pulse

Sound Frequency: 40 kHz

Echo Pin Output: 0-Vcc

Echo Pin Format: output is DIGITAL and directly proportional with range. See our conversion formula above.

Measurement Range: 2cm to ~4.5m

Measurement Resolution: 0.3cm

Measurement Angle: up to 15 deg

Measurement Rate: 40 Hz

Supply Voltage: 4.5V to 5.5V

Supply Current: 10 to 40mA

Connector: standard 5-pin male connector which can plug directly into breadboards.
