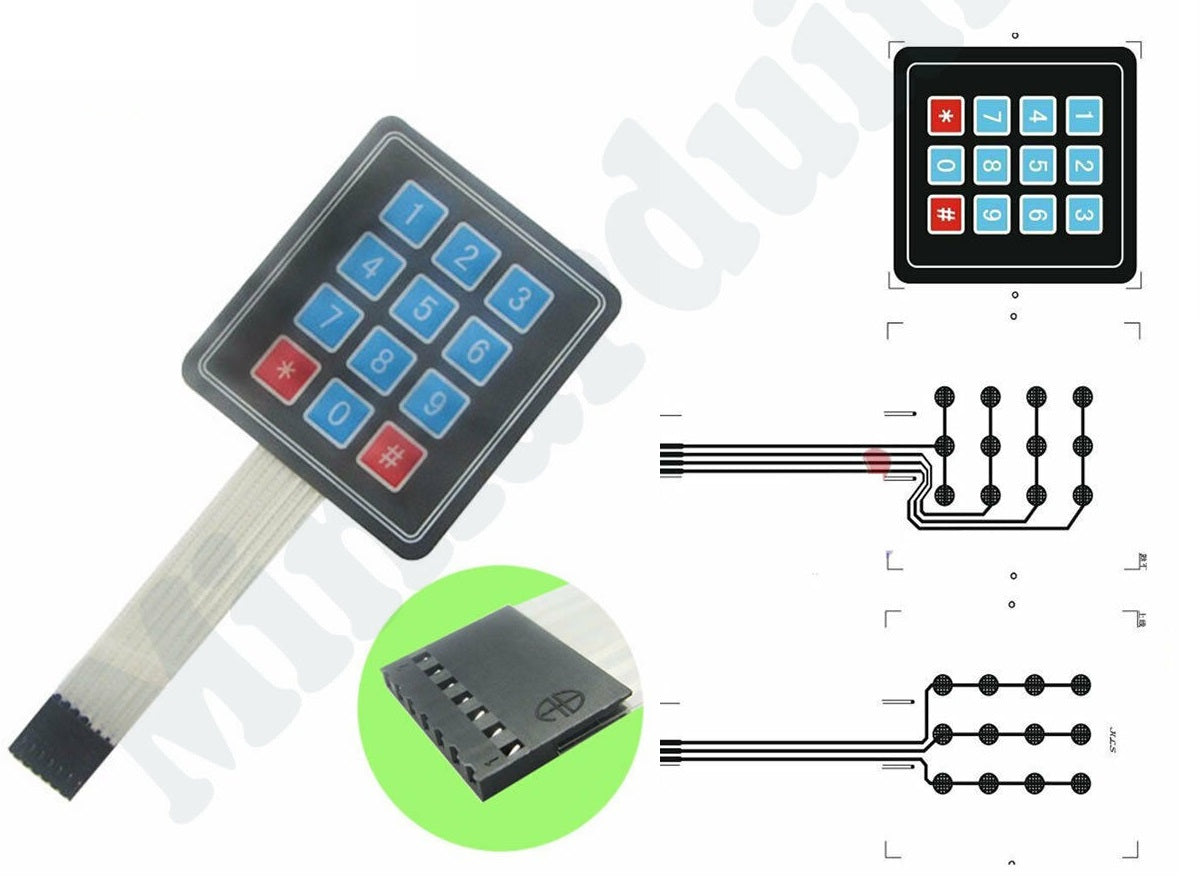

Keypad Membrane Matrix Array Switch, self-adhesive

Keypad Membrane Matrix Array Switch, self-adhesive

Regular price $1.99 USD
Regular price Sale price $1.99 USD
Sale Sold out
Shipping calculated at checkout.

Model: 4 x 3 Matrix Array 12 Key Membrane Switch Keypad



Pad Size: 69.2 x 76.9 x 0.8mm

Cable Length: 3-1/3" or 86mm (include connector)

Connector: Dupont 7 pins, 0.1" (2.54mm) Pitch

Mount Style: Self-Adhesive

Max. Circuit Rating: 35VDC, 100mA

Insulation Spec.: 100M Ohm, 100V

Dielectric Withstand: 250VRms (60Hz, 1min)

Contact Bounce: <=5ms

Life Expectancy: 1 million closures

Operation Temperature: -20 to +40 °C



Package Include:

1 x Matrix Array 12 Key Membrane Switch Keypad 4 x 3
