LCD Display Modules for Development Boards select your model, USA seller!

LCD Display Modules for Development Boards select your model, USA seller!

$6.25 USD
$6.25 USD
Sale Sold out
Shipping calculated at checkout.
Size
Select your display model or get them all!


Model 1: 0.96" I2C IIC Serial 128X64 LED OLED LCD Display Module-Blue for Arduino, Raspberry Pi, etc.

Model 2: 1.3" TFT IPS LCD Display Module 240x240 SPI for Arduino, Raspberry Pi, etc.

Model 3: 2.6" LCD 1602 Monochrome 16x2 HD44780 Character Display Module for Arduino, Raspberry Pi, etc.

Model 4: Same as Model 3 plus I2C board (Easier to connect, Use only 2 pins of your Arduino)

Model 5: Same as Model 4 plus Clear Acrylic case

Model 6: 2.8" Full Color LCD Touchscreen with Stylus Pen included. Fits directly on your UNO or MEGA board.


=============================================================

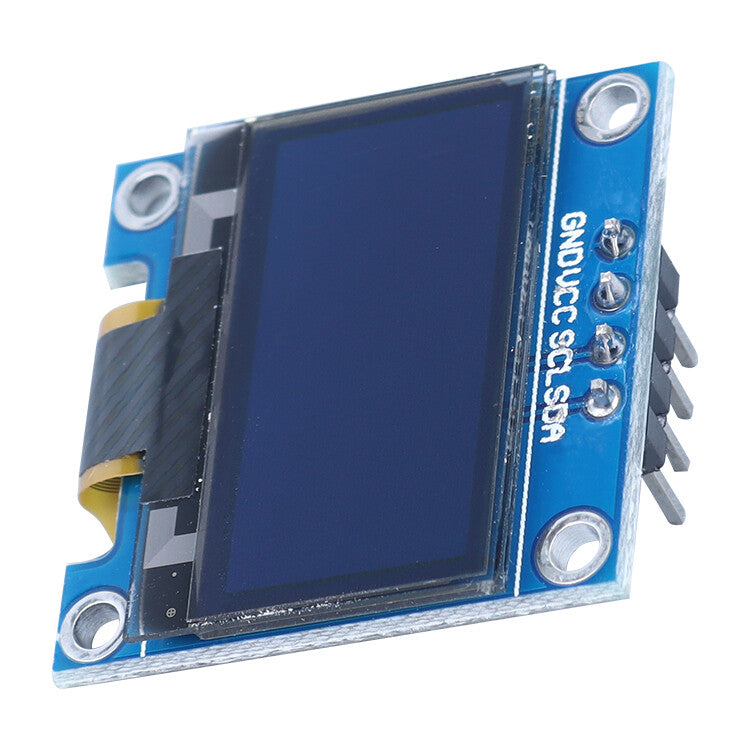

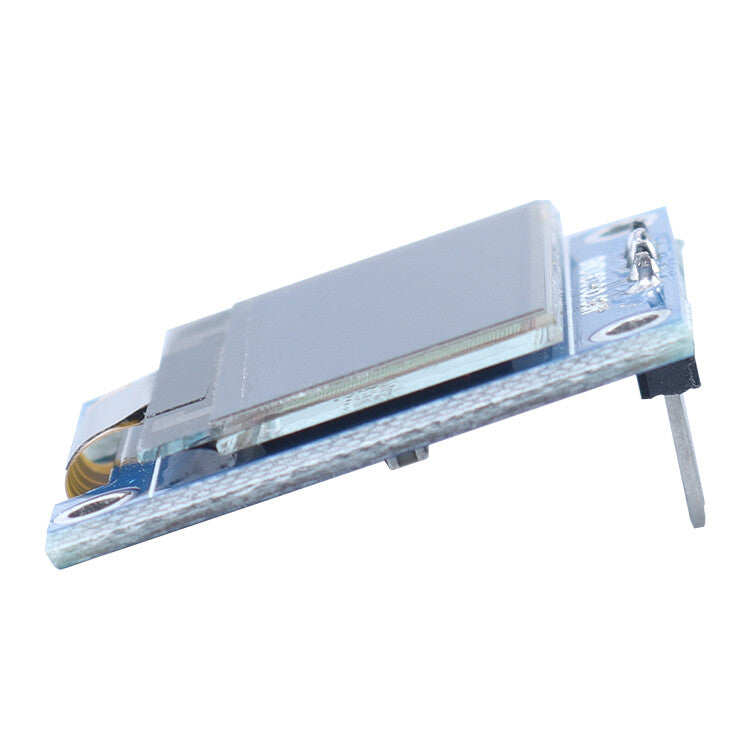

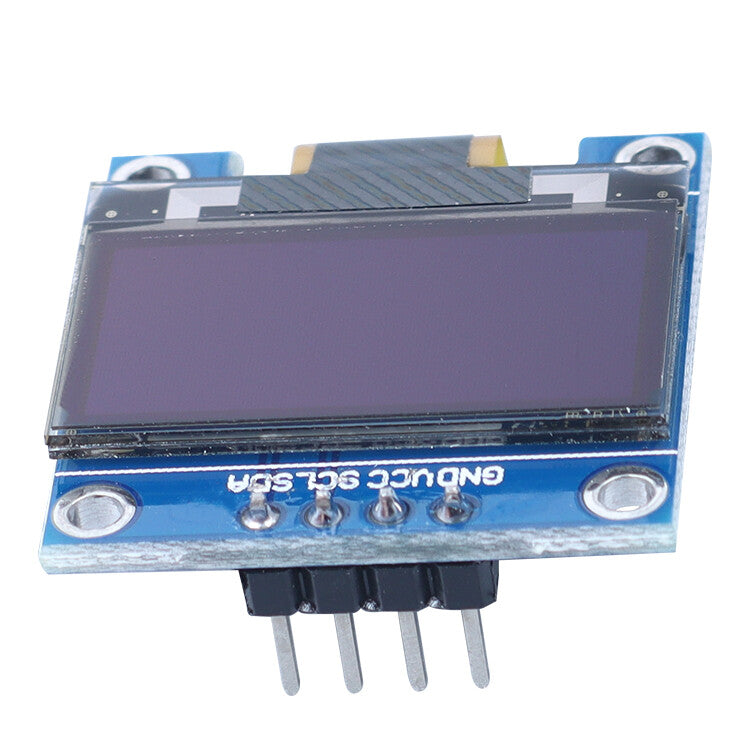

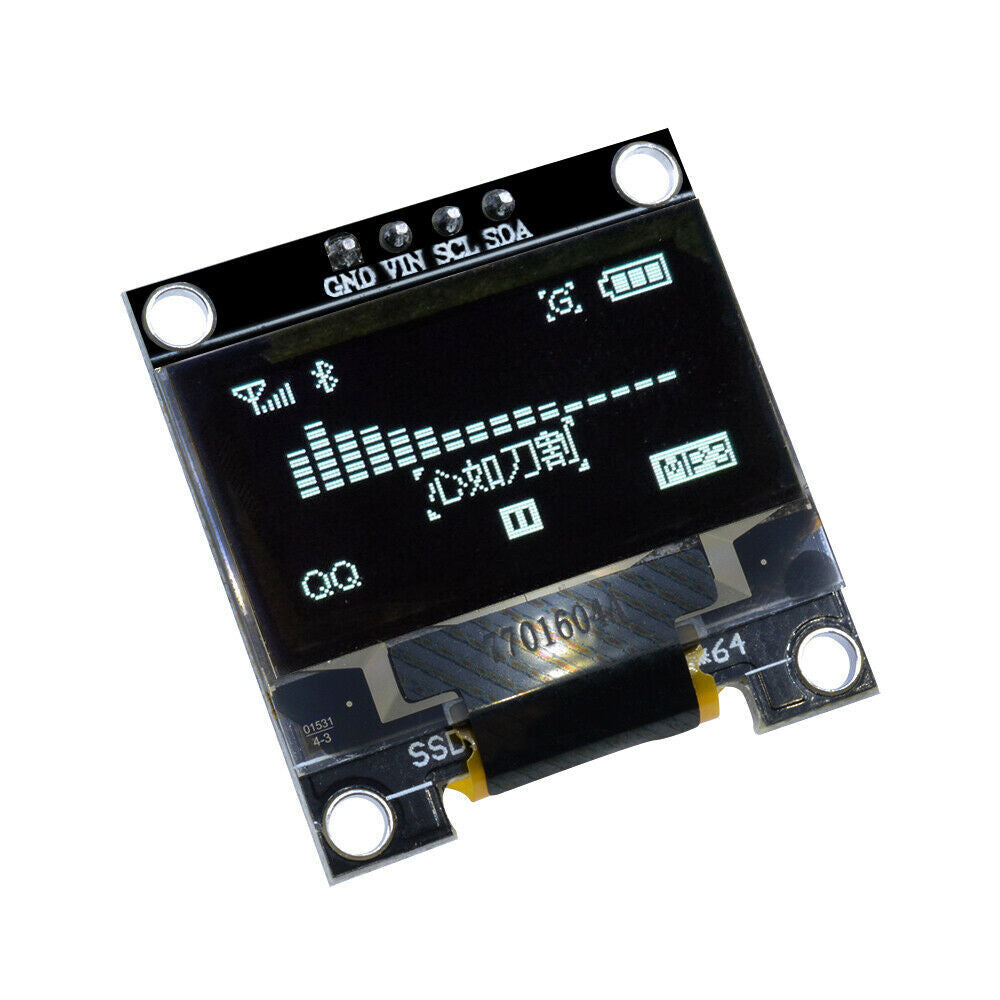

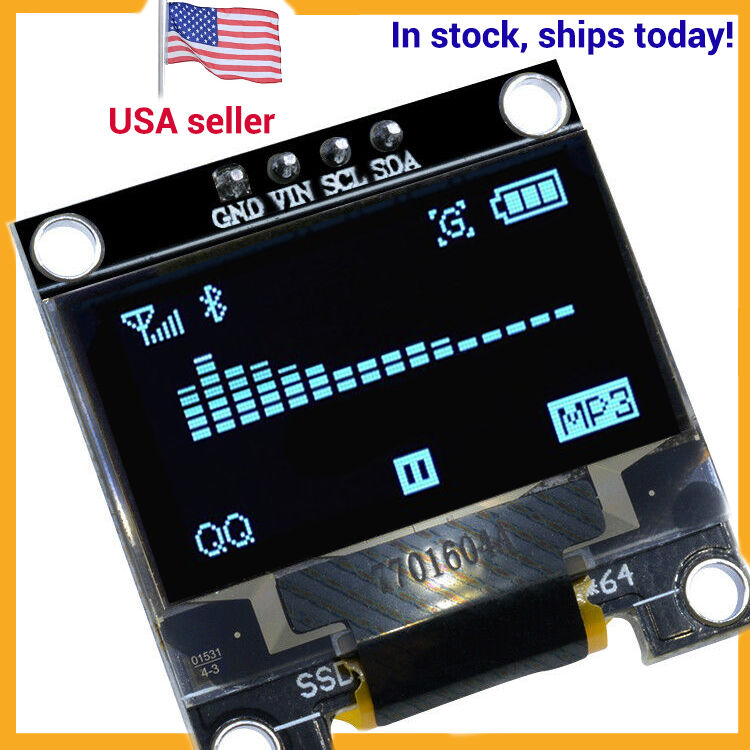

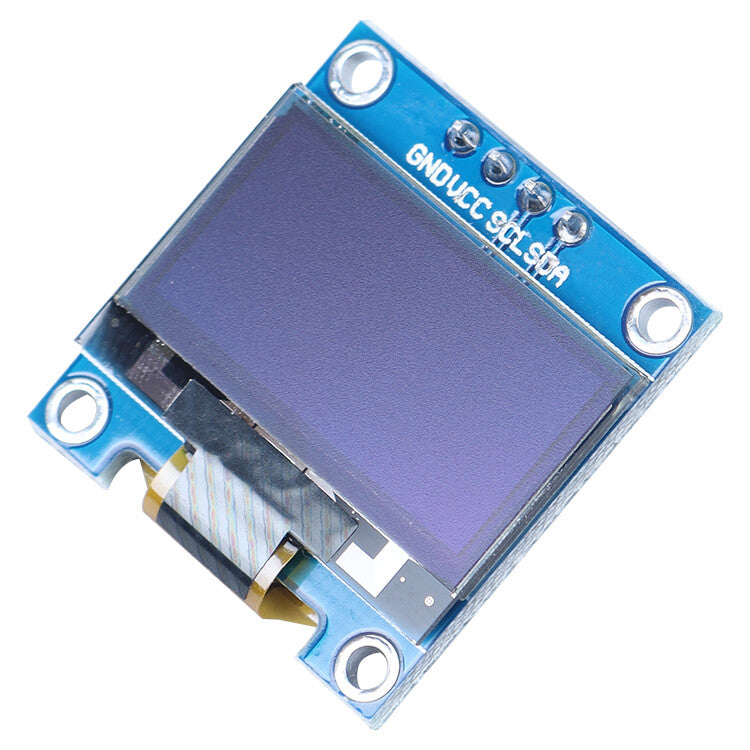

Model 1:

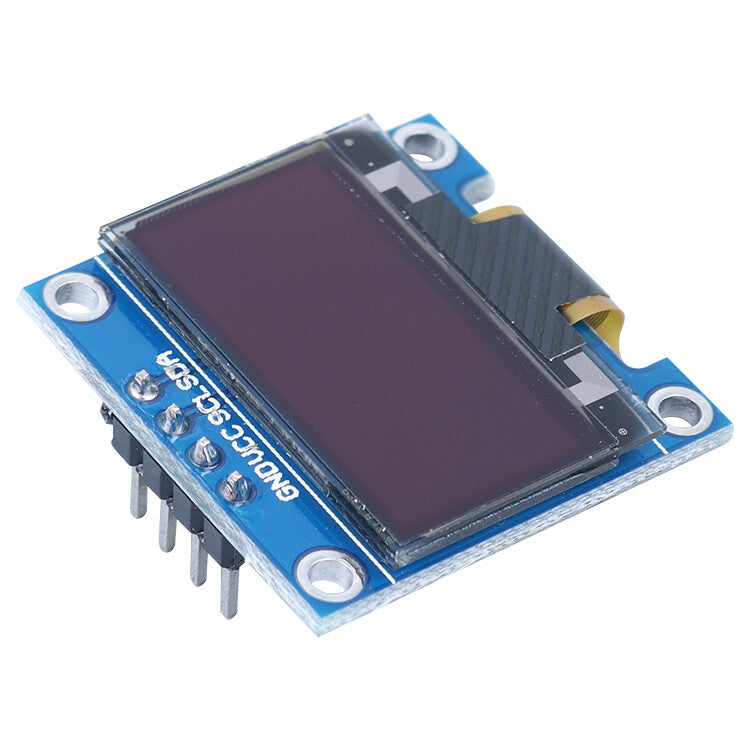

0.96" I2C IIC Serial 128X64 LED OLED LCD Display Module-Blue for Arduino Raspberry Pi, etc.

OLED Display 0.96 Inch OLED Display 128X64 Module for Arduino

 These displays are small, only about 1" diagonal, but very readable due to the high contrast of an OLED display. Since the display makes its own light, no backlight is needed. This reduces the power required to run the OLED and is why the display has such high contrast.

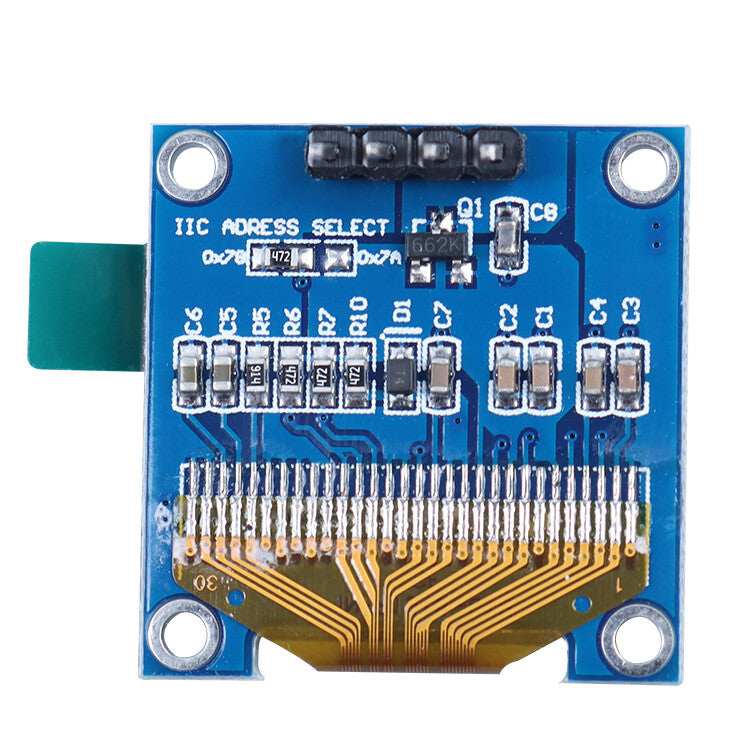

This breakout can be used with either an SPI or I2C interface - selectable by soldering two jumpers on the back.  The design is completely 5V-ready, with an onboard regulator and built in boost converter. It's easier than ever to connect directly to your 3V or 5V microcontroller without needing any kind of level shifter!

No embedded fonts inside the OLED controller, user can create the fonts through the font generation software.

Features:

High resolution: 128 * 64

Viewing angle:> 160 degree

Supports many control chips: Fully compatible with UNO, Mega, 51 Series, MSP430 Series,

STM32 / 2, CSR IC, etc.

Ultra-low power consumption: full screen lit 0.08W

Display area: 29.42 x 14.7mm

Voltage: 3V ~ 5V DC

Working Temperature: -30 c ~ 70 c

Module Size: 27.0MM * 27.0MM * 4.1MM

I2C/IIC Interface, need 2 IO only.

Driver IC: SSD1306

Character Color: Blue

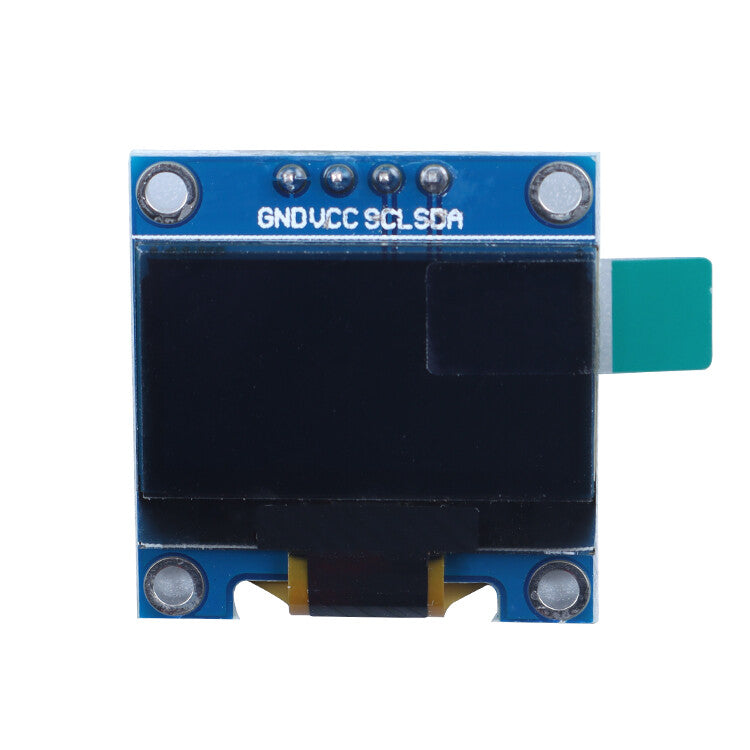

Pin definitions:

1> GND (power ground)

2> VCC (positive power supply)

3> SCL (clock line)

4> SDA (data line)

========================================

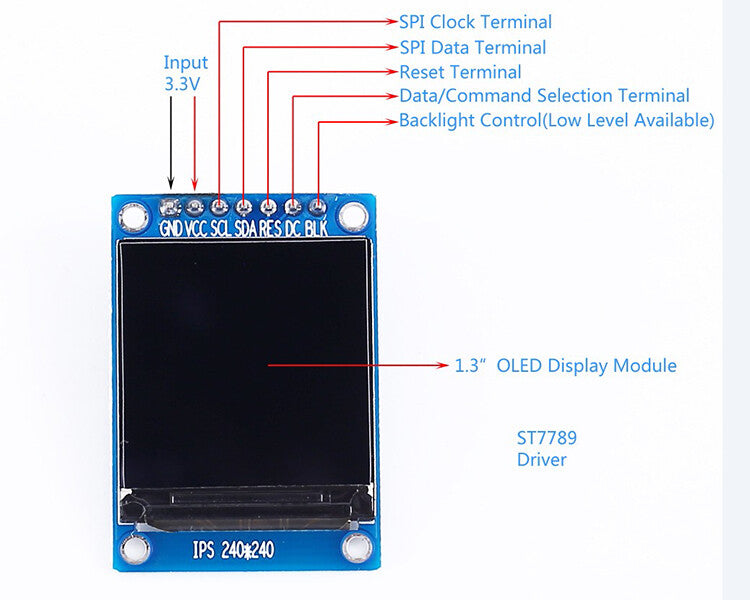

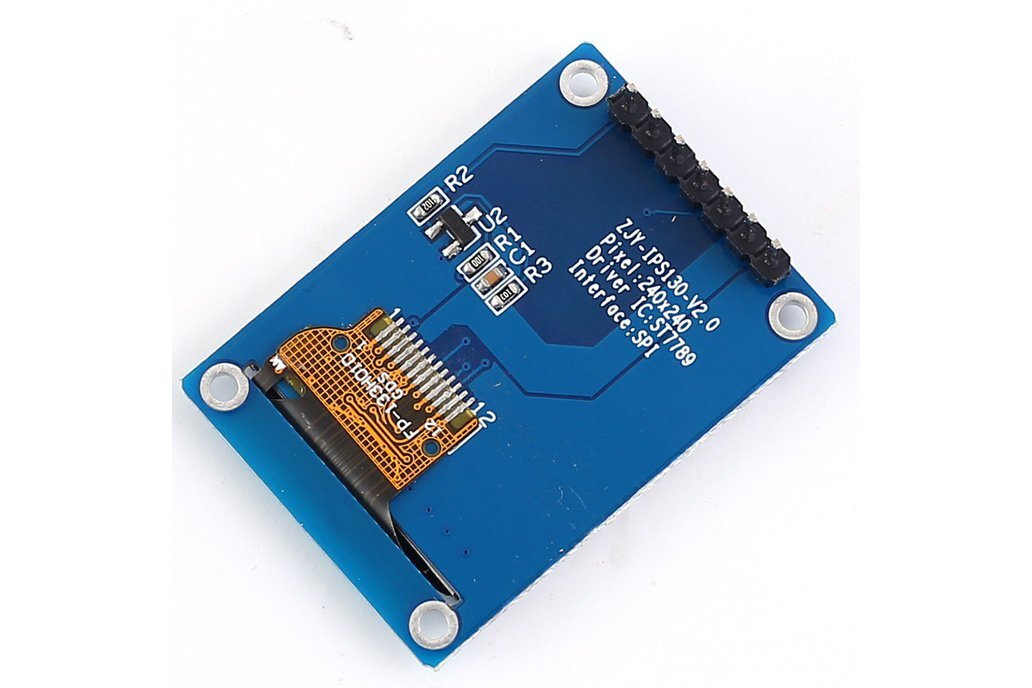

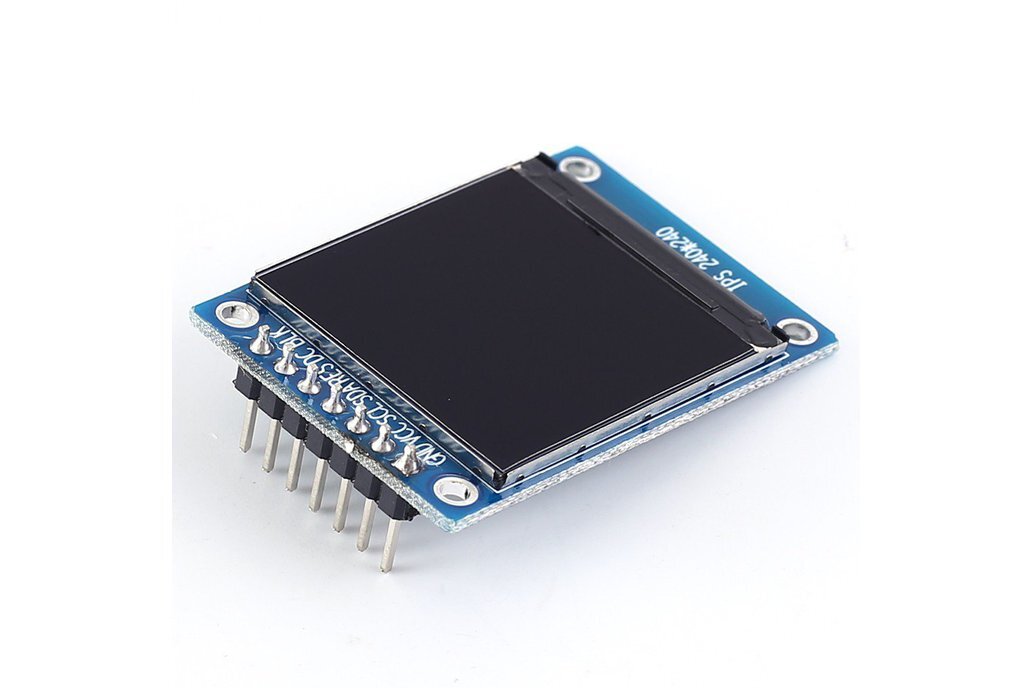

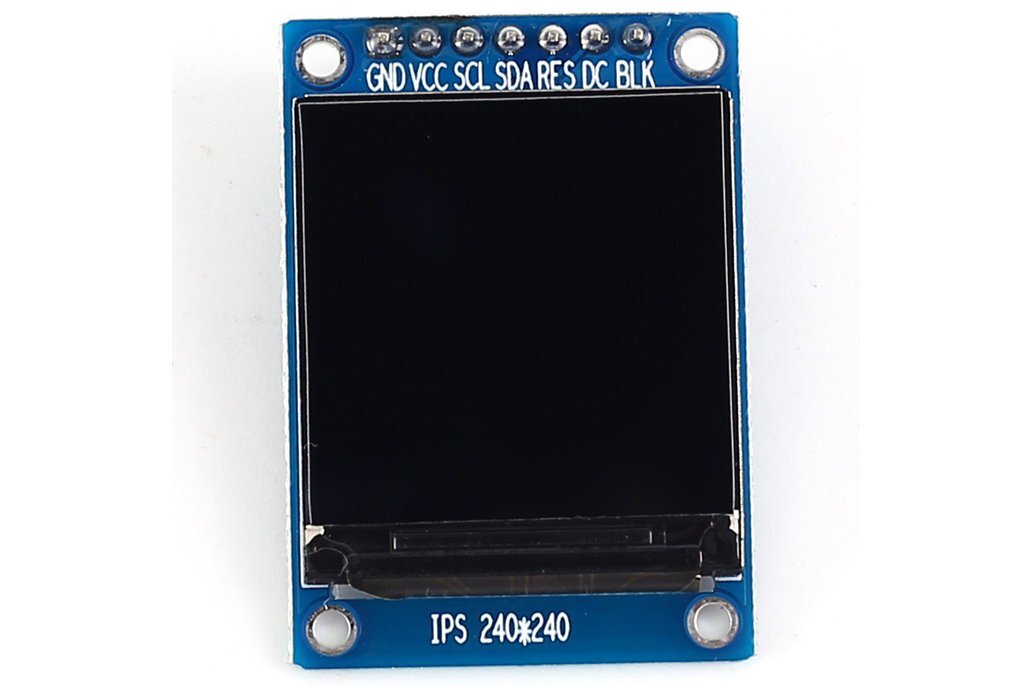

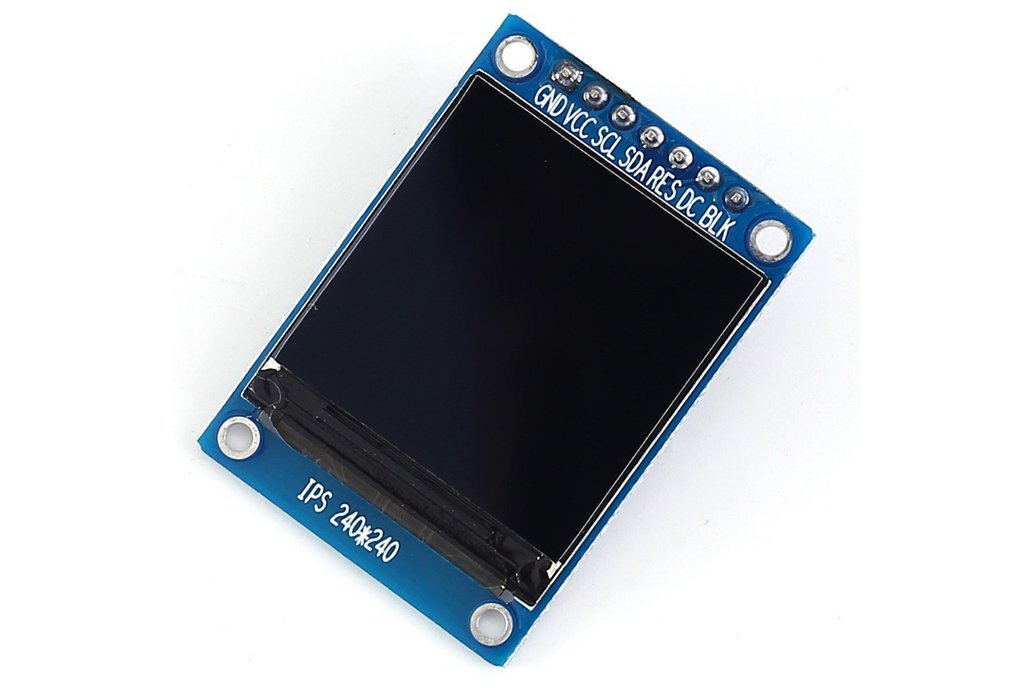

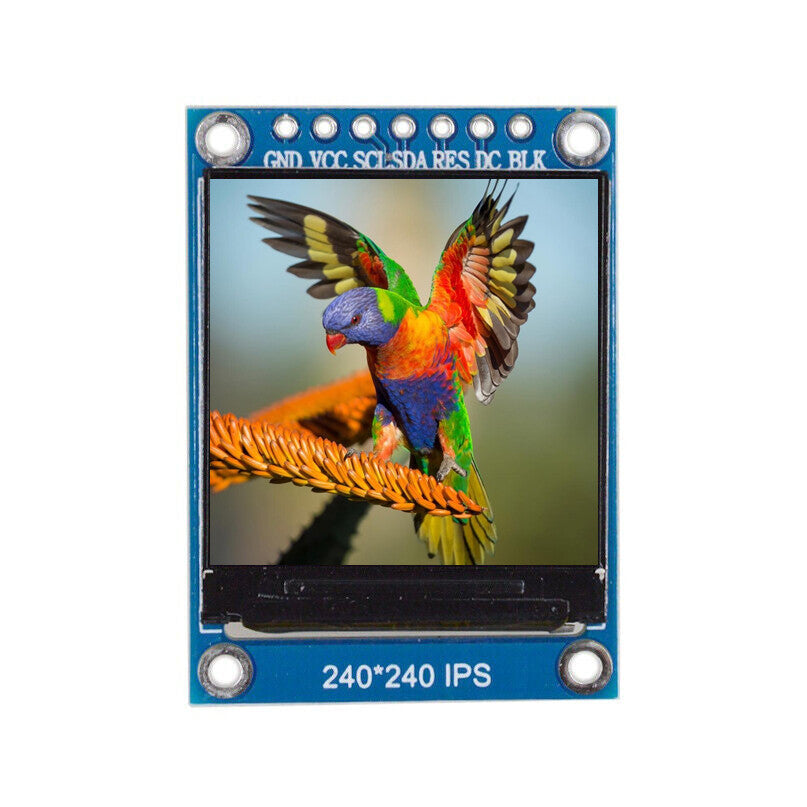

Model 2

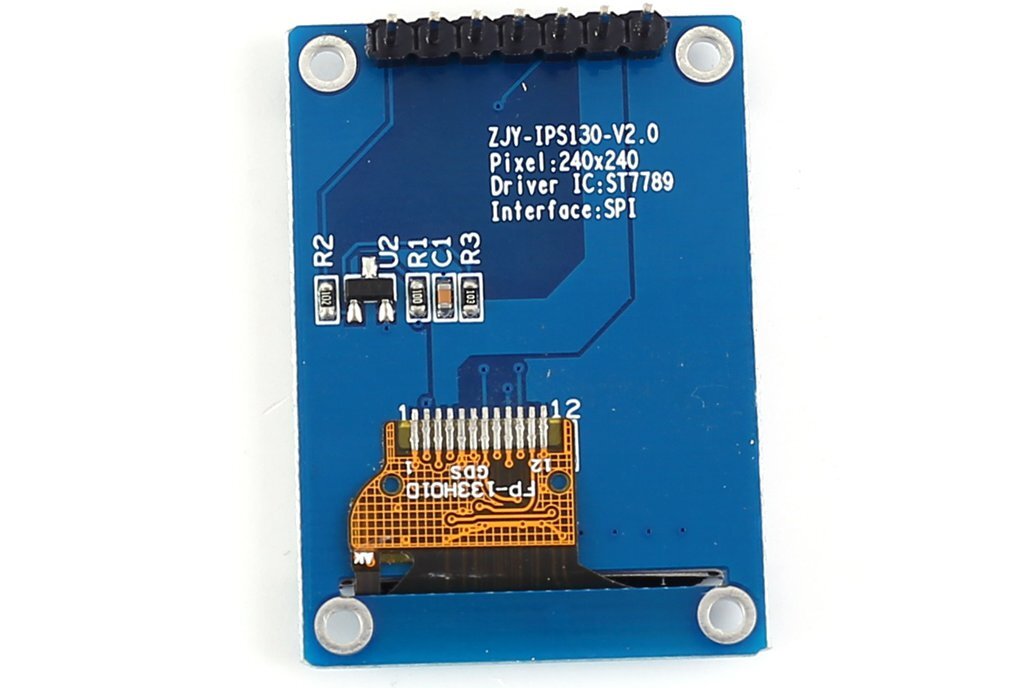

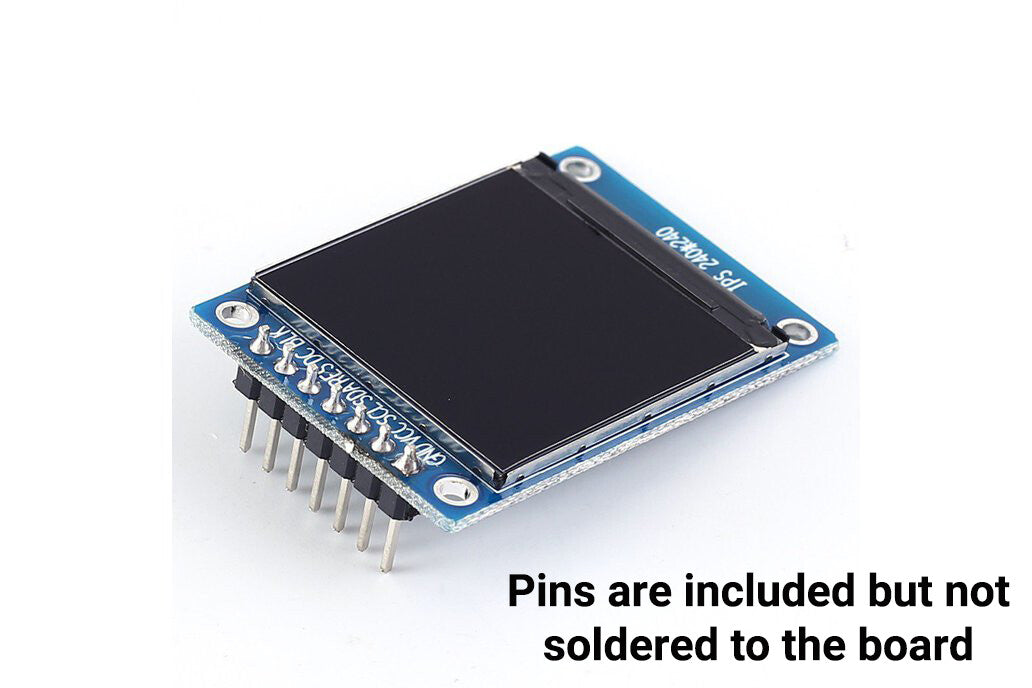

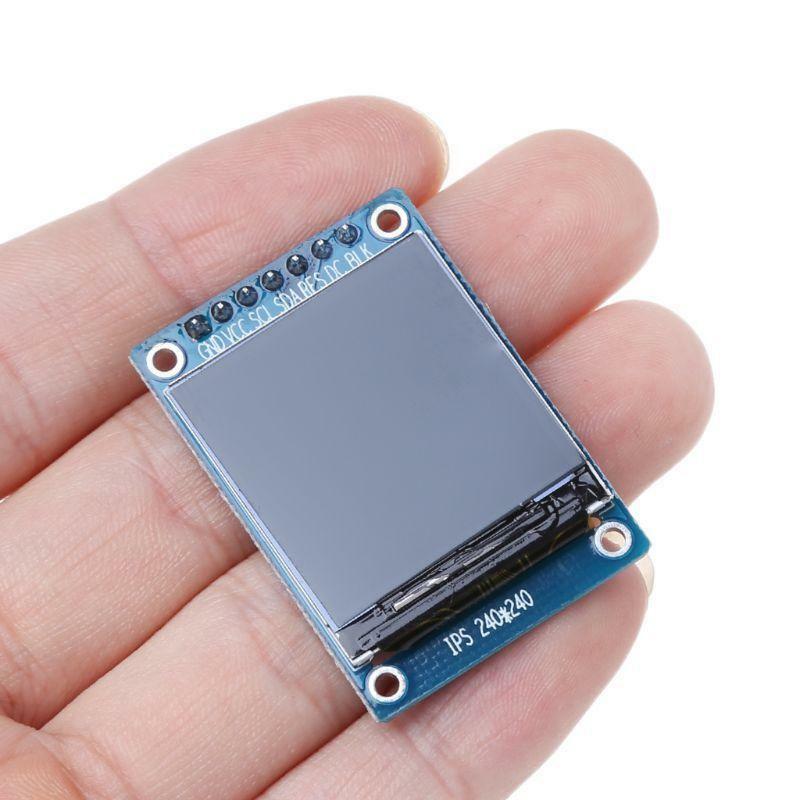

1.3 inch TFT IPS LCD Display Module 240x240 SPI for Arduino Raspberry Pi
This is the improved version, second generation (V 2.0)

Dot Matrix Size：240*240（direction can adjust horizontal screen vertical screen）
Display color: 65K full color
Interface type: SPI interface
Driver IC: ST7789
Working temperature: -20~70 Celsius
Working voltage: 3.3V
Number of pins: 7Pin
Viewing Direction：Full viewing angle （IPS）

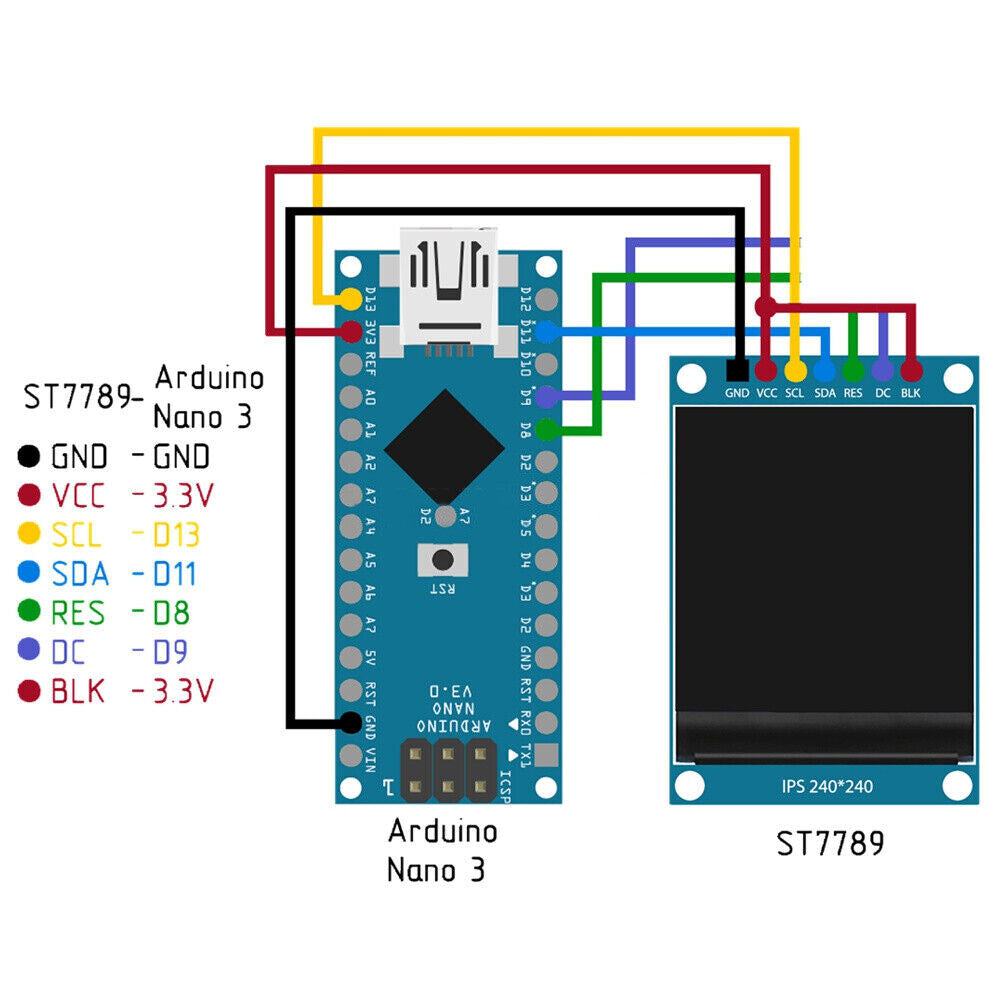

GND: ground
VCC:3.3-5.0V（DC）
SCL :SPI clock line
SDA :SPI data line
RES ：Reset interface
DC ：SPI data/ selection
BLK ：Backlight control, default floating, low level off
color: blue
Material: Metal + PC

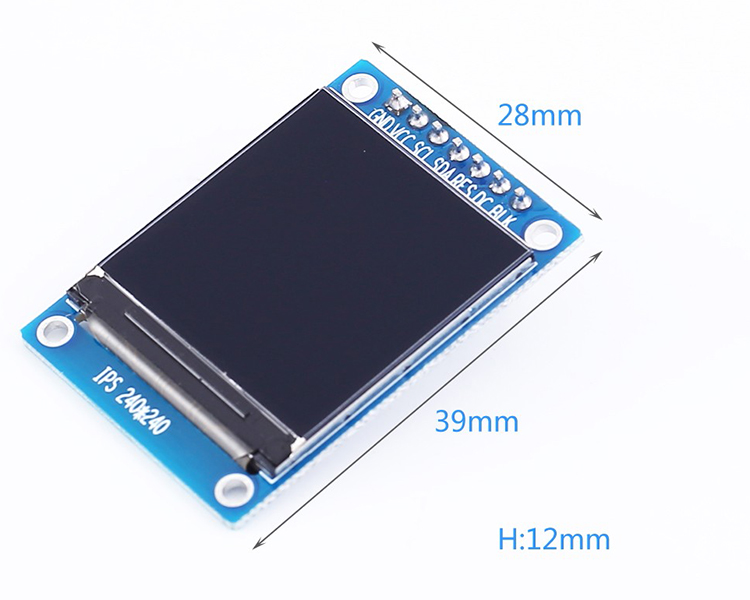

size:27.78*39.22mm
LCD Size: 1.3 Inch

=================================================

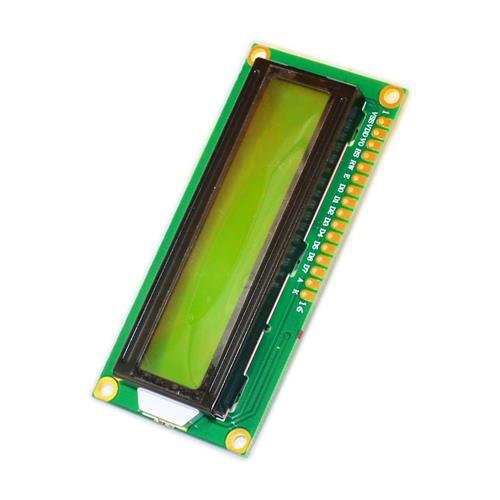

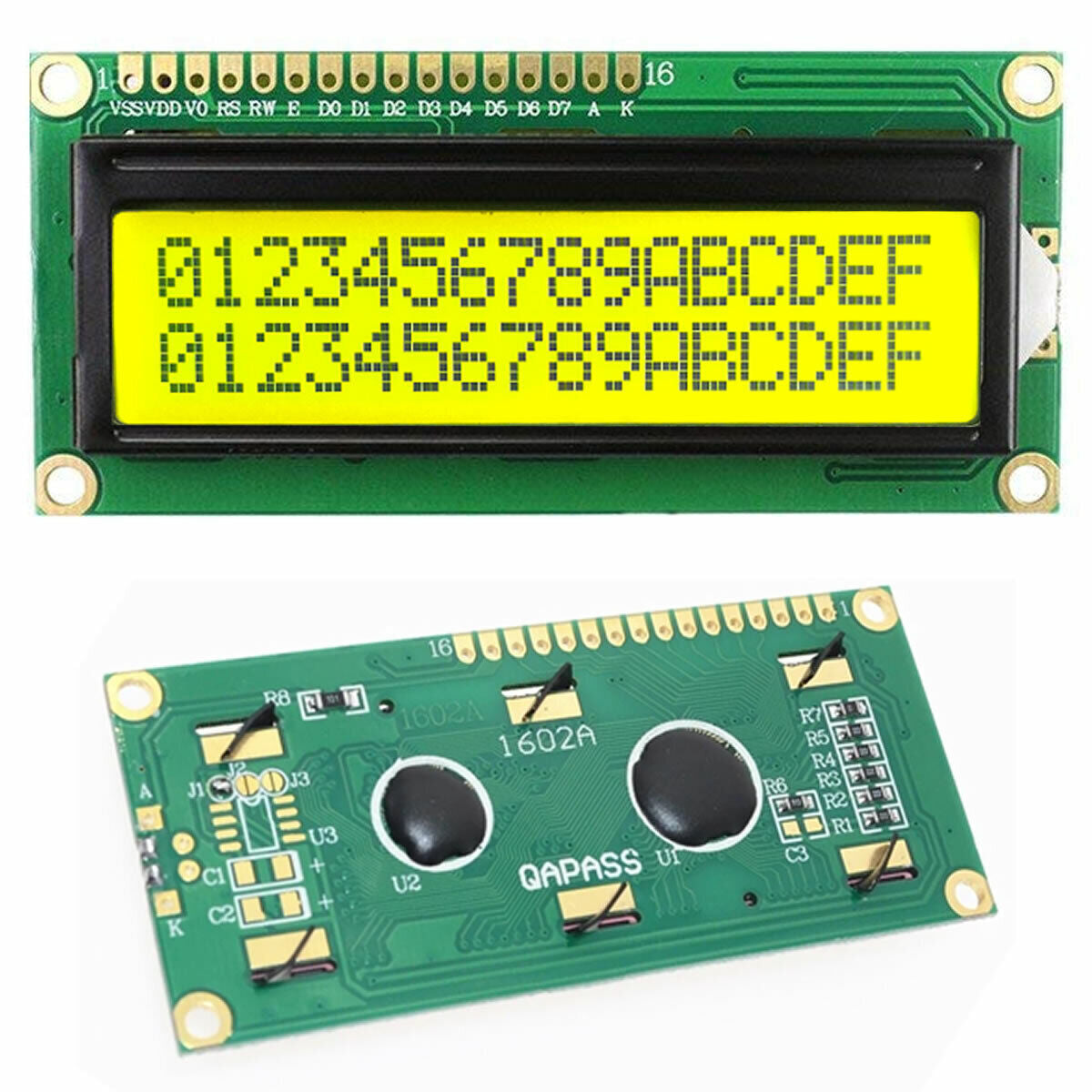

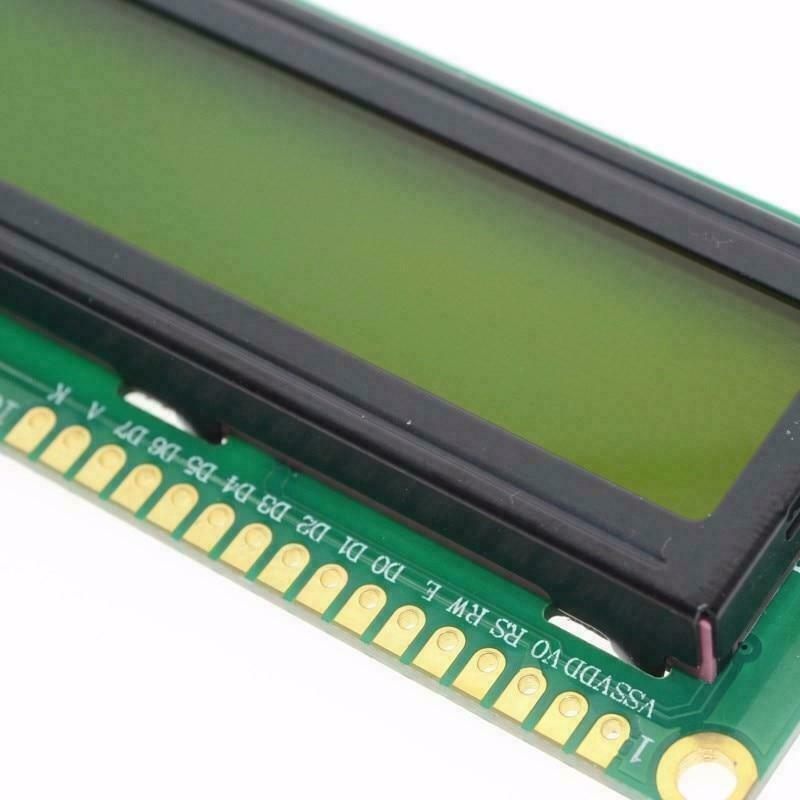

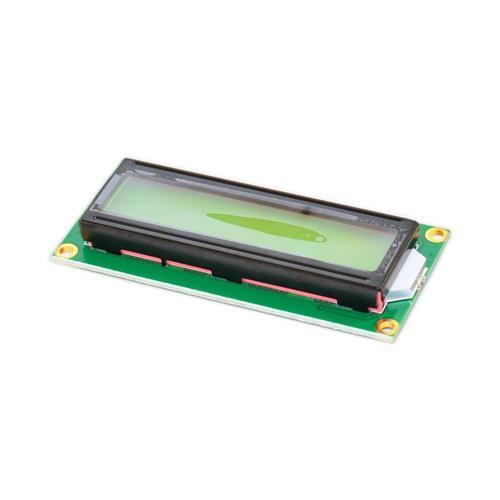

Model 3

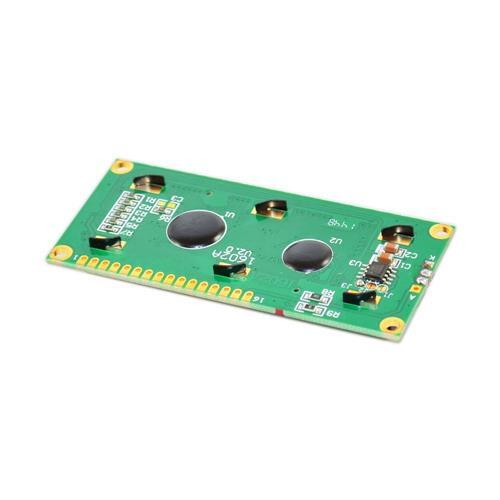

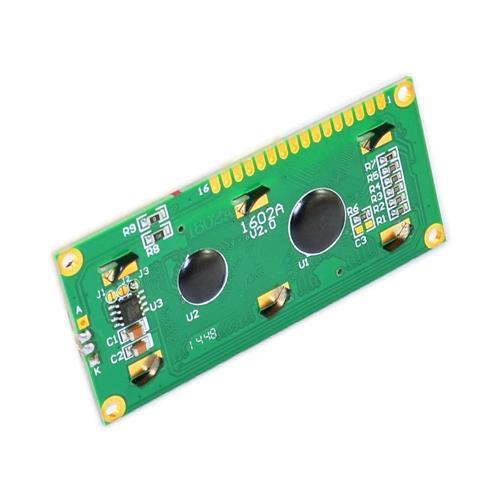

2.6" LCD 1602 Monochrome 16x2 HD44780 Character Display Module for Arduino


LCD display module yellow backlight, black characters.

Wide viewing angle and high contrast.

Built-in industry standard HD44780 equivalent LCD controller.

LCM type: Characters

Display mode: TN/STN

Can display 2-lines X 16-characters

Operate with 5V DC

Voltage: 5V DC.

Module dimension: 80mm x 35mm x 11mm.

Viewing area size: 64.5mm x 16mm



Product Description

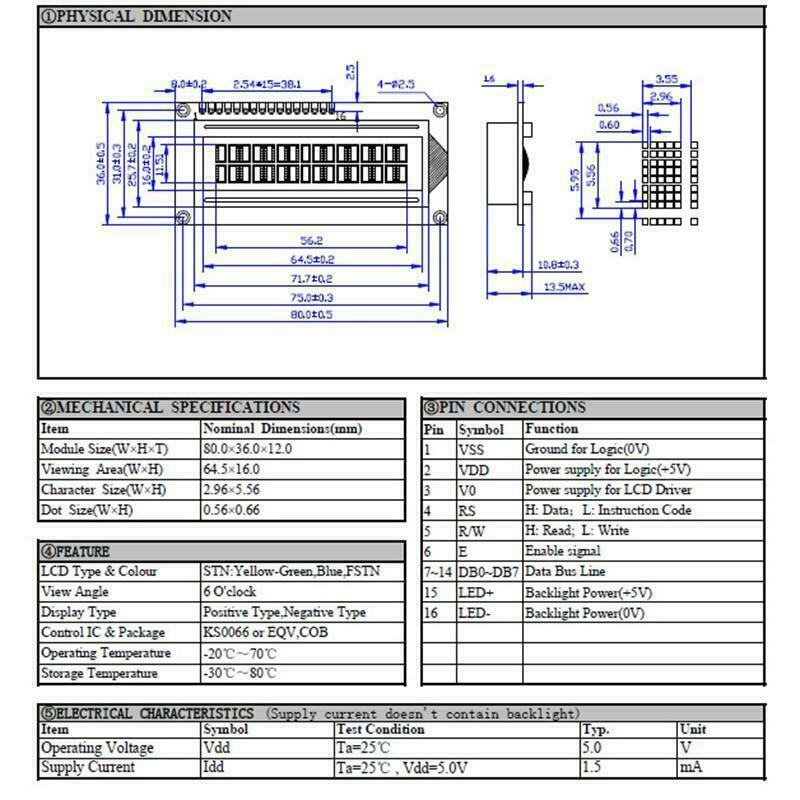

1602 adopts standard 16-pin interface, among which:

Pin 1: VSS is ground power

Pin 2: VDD should be connected to 5V positive power

Pin 3: V0 is LCD display contrast adjustment terminal. Contrast is the lowest when connected to positive power and highest when connected to ground power. Over-high contrast may lead to tailing phenomena. Contrast can be adjusted through a 10K potentiometer during usage.

Pin 4: RS is register select. Select data register when level is high; select command register when level is low.

Pin 5: R/W is Read/Write signal line. Read when level is high; write when level is low. We can write command or display address when RS and RW are both of low level.; we can read busy signal when RS is of low level and RW is of high level; we can write data when RS is of high level and RW is of low level.

Pin 6: Port E is enable pin. Display module will execute command when port E jumps from high level to low level.

1602 adopts standard 16-pin interface, among which:

Pin 1: VSS is ground power

Pin 2: VDD should be connected to 5V positive power

Pin 7 to Pin 14: D0-D7 is 8-bit bidirectional data line

Pin 15: backlight power positive

Pin 16: backlight power negative



===========================================

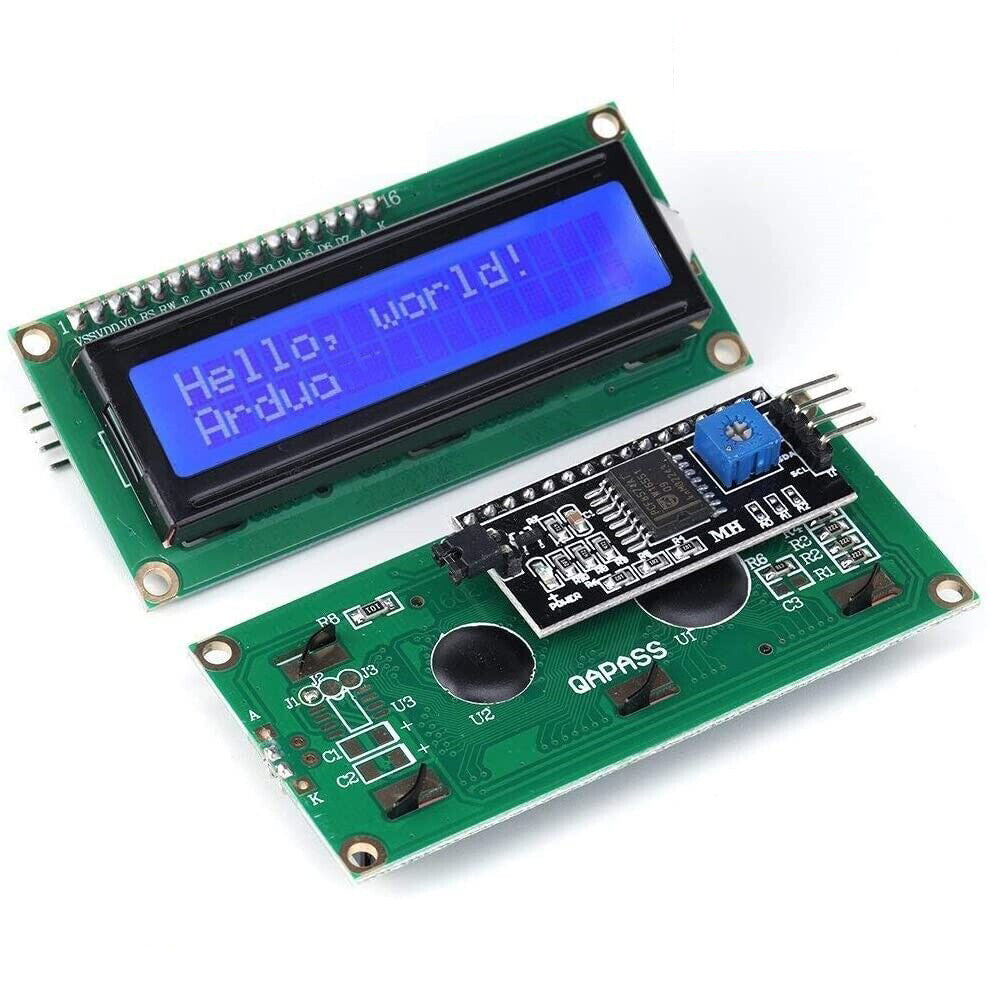

Model 4

2.6" LCD 1602 Monochrome 16x2 HD44780 Character Display Module

Plus IIC/I2C PCF8574 Serial Interface Adapter Module

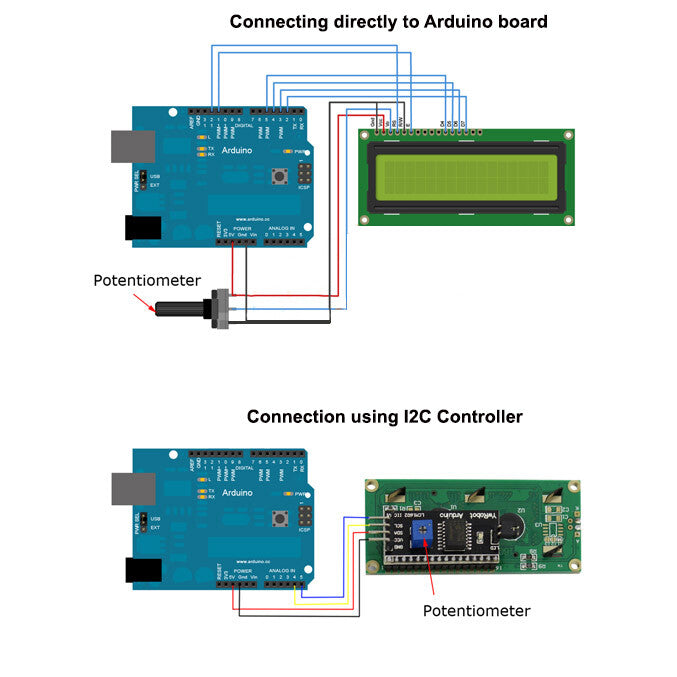

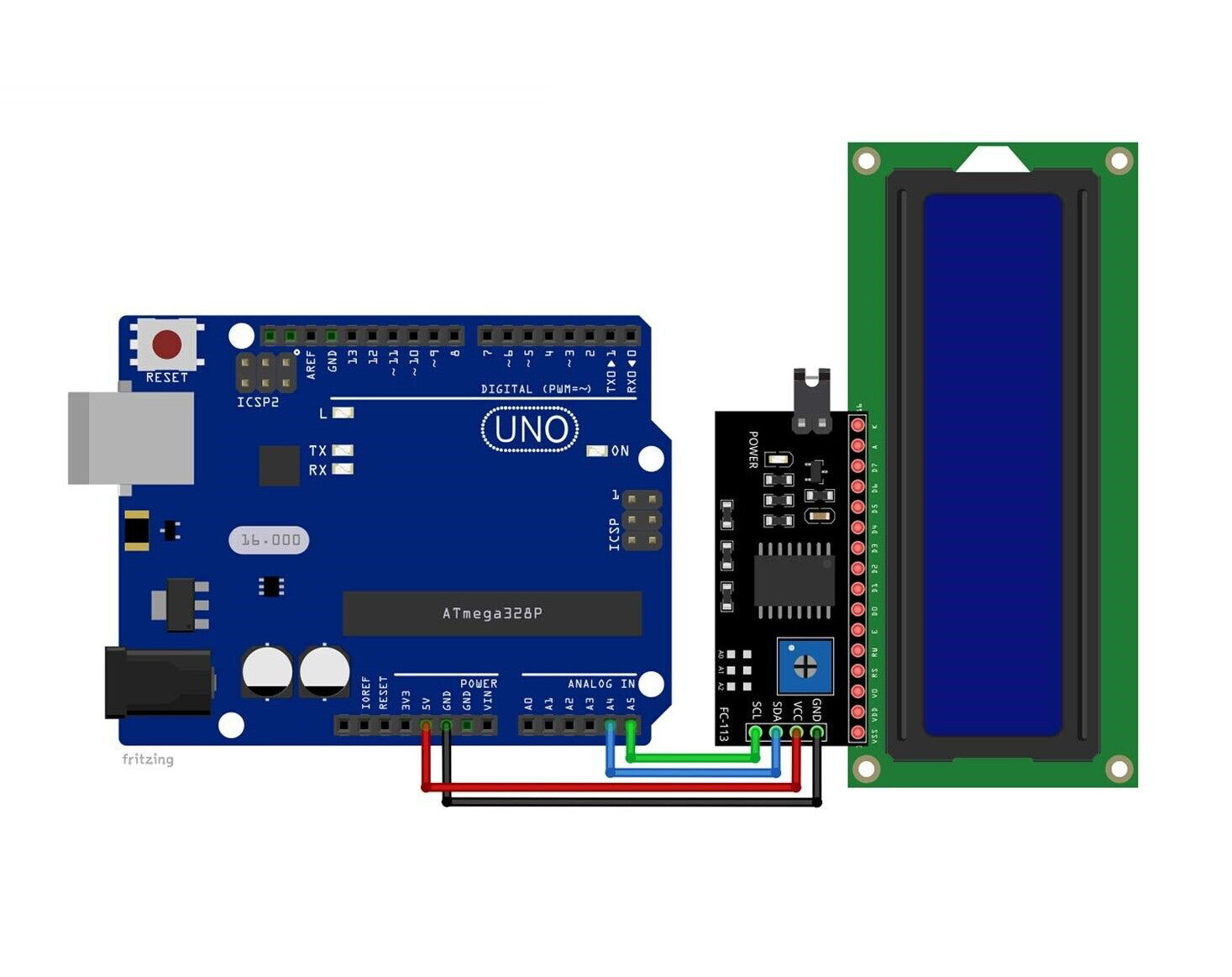

This is a great IIC/I2C Serial Interface for your 1602 LCD to Arduino.

Instead of connecting the LCD directly to the Arduino using several pins on the board, this small I2C interface only uses 2 pins to get the job done, leaving all other pins on your Arduino board free for use.

As the pin resources of Arduino controller are limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card.

However, with this I2C interface module, you will be able to realize data display via only 2 wires. If you already have I2C devices in your project, this LCD module will not use any additional resources.

It is fantastic for Arduino based project.

  • I2C Address: 0X20~0X27 (the original address is 0X20, you can change it yourself)
  • Supply voltage: 5V
  • the backlight and contrast are adjusted by potentiometer
  • It comes with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable
  • Compatible for 1602 LCD 2004 LCD

===============================================

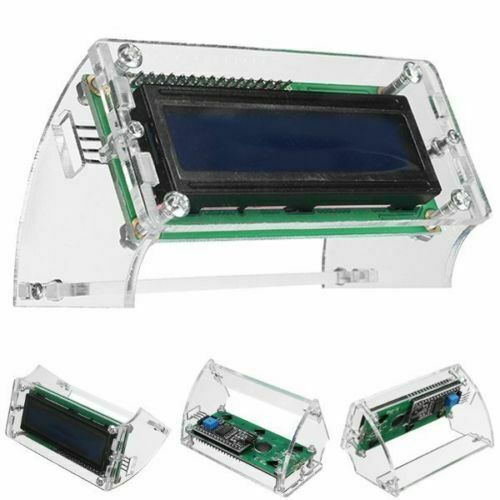

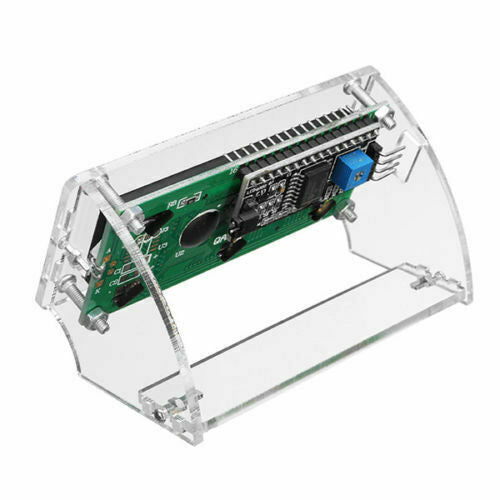

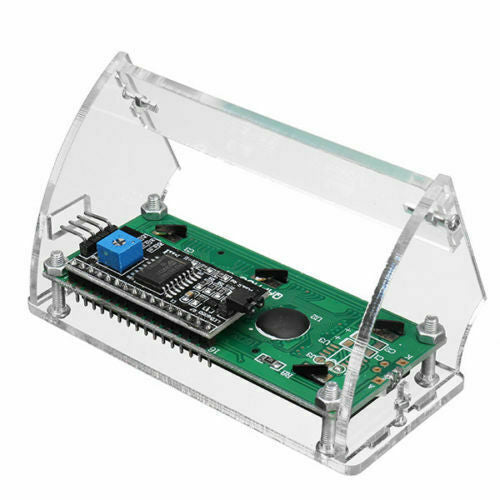

Model 5

2.6" LCD 1602 Monochrome 16x2 HD44780 Character Display Module

Plus IIC/I2C PCF8574 Serial Interface Adapter Module

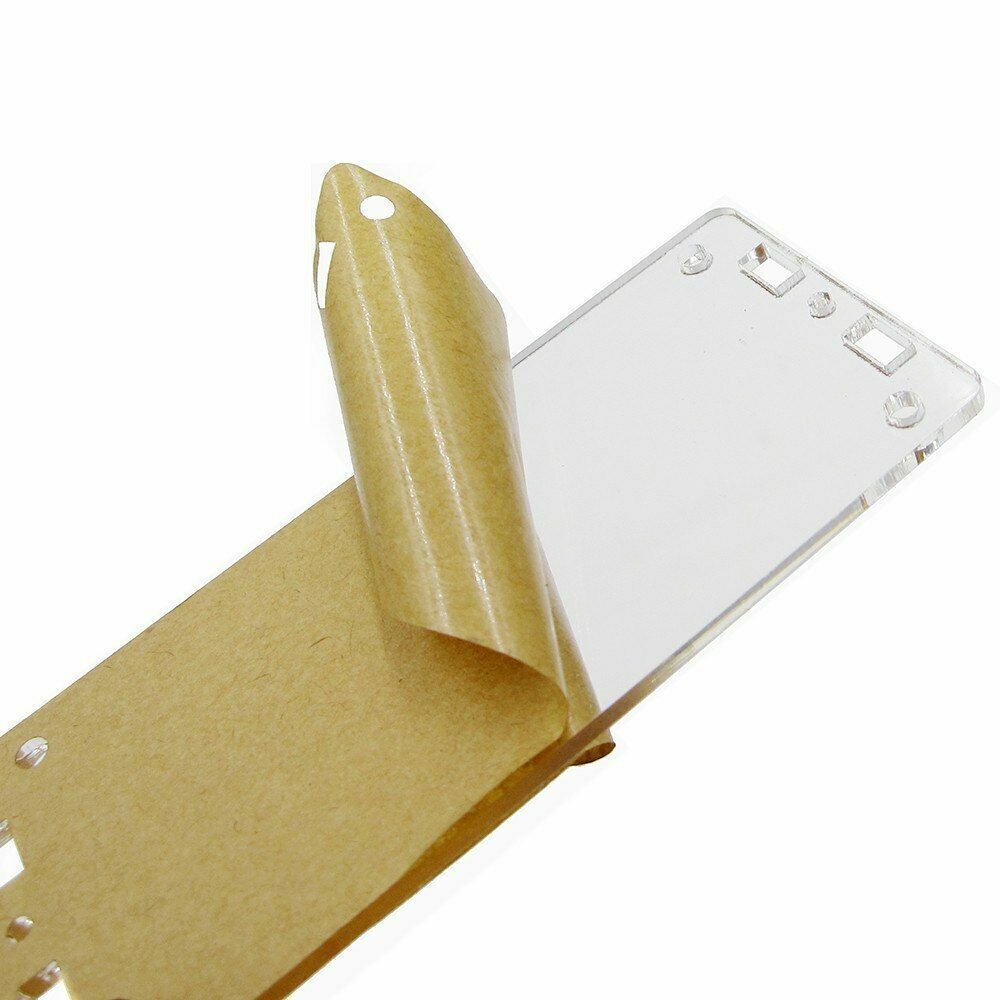

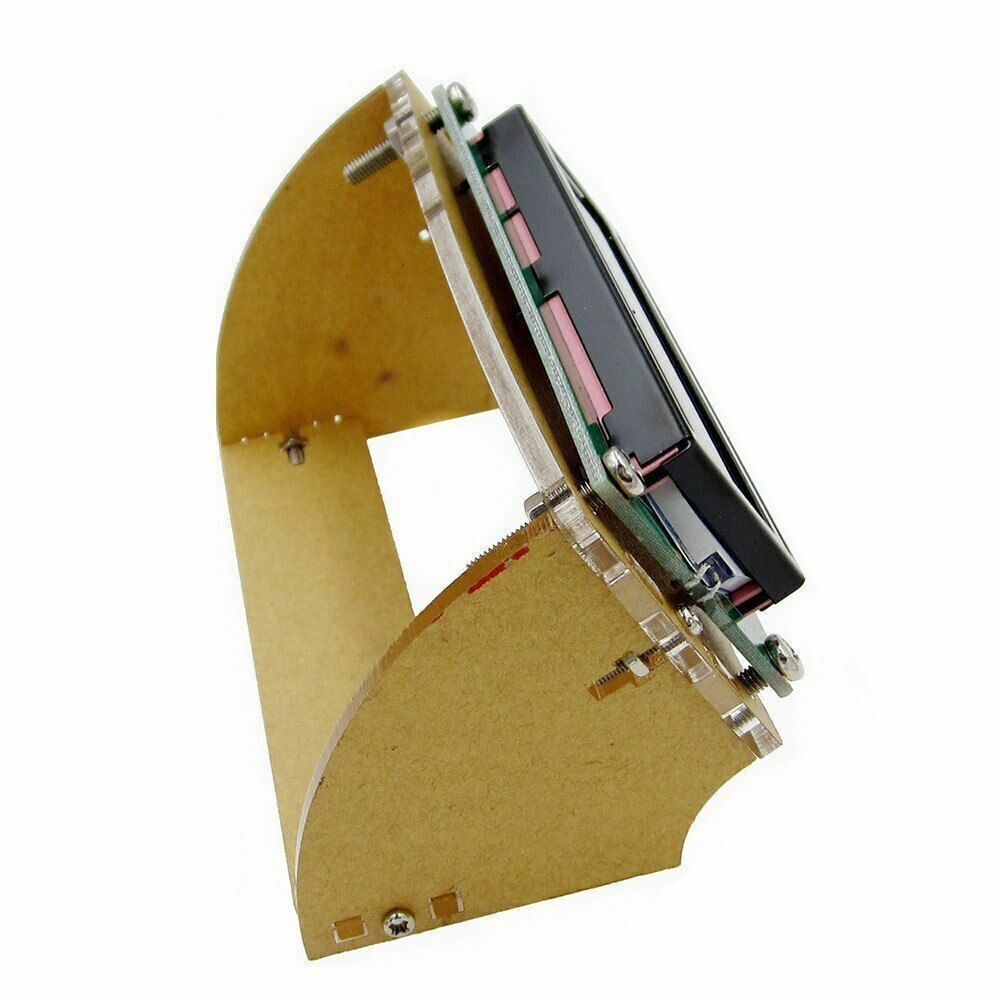

Plus Clear Acrylic Stand Holder for your Display, for a great professional look!



===============================================

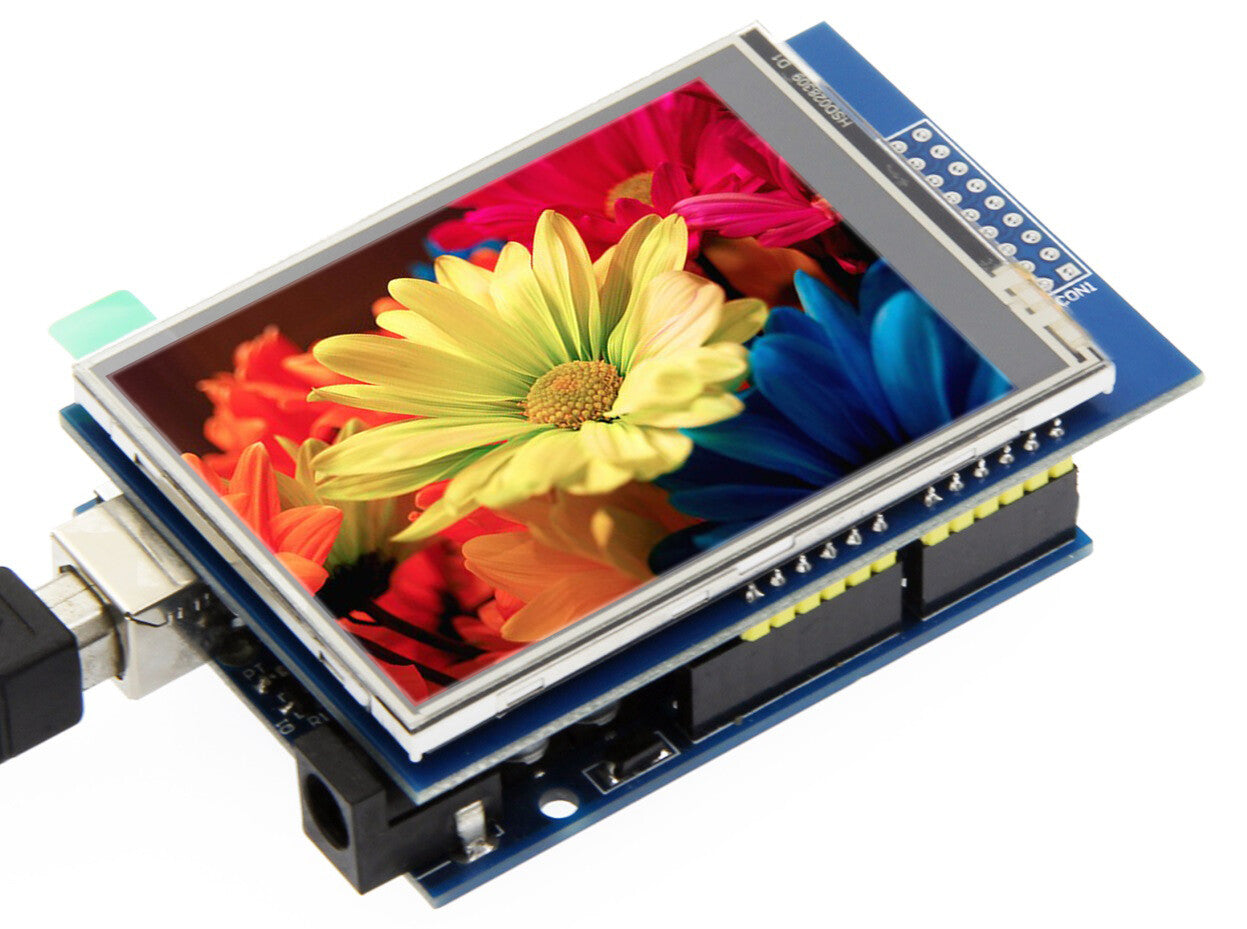

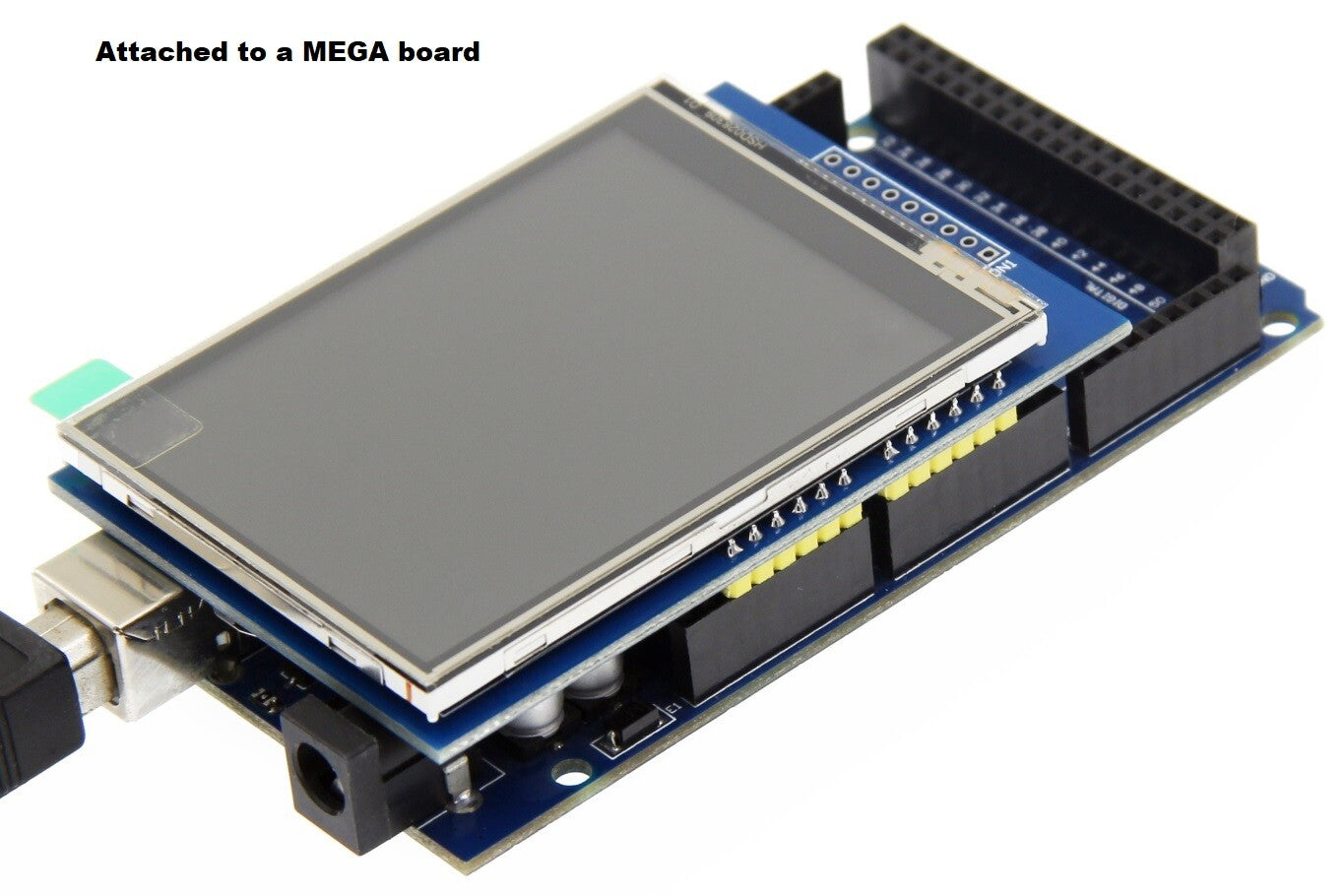

Model 6

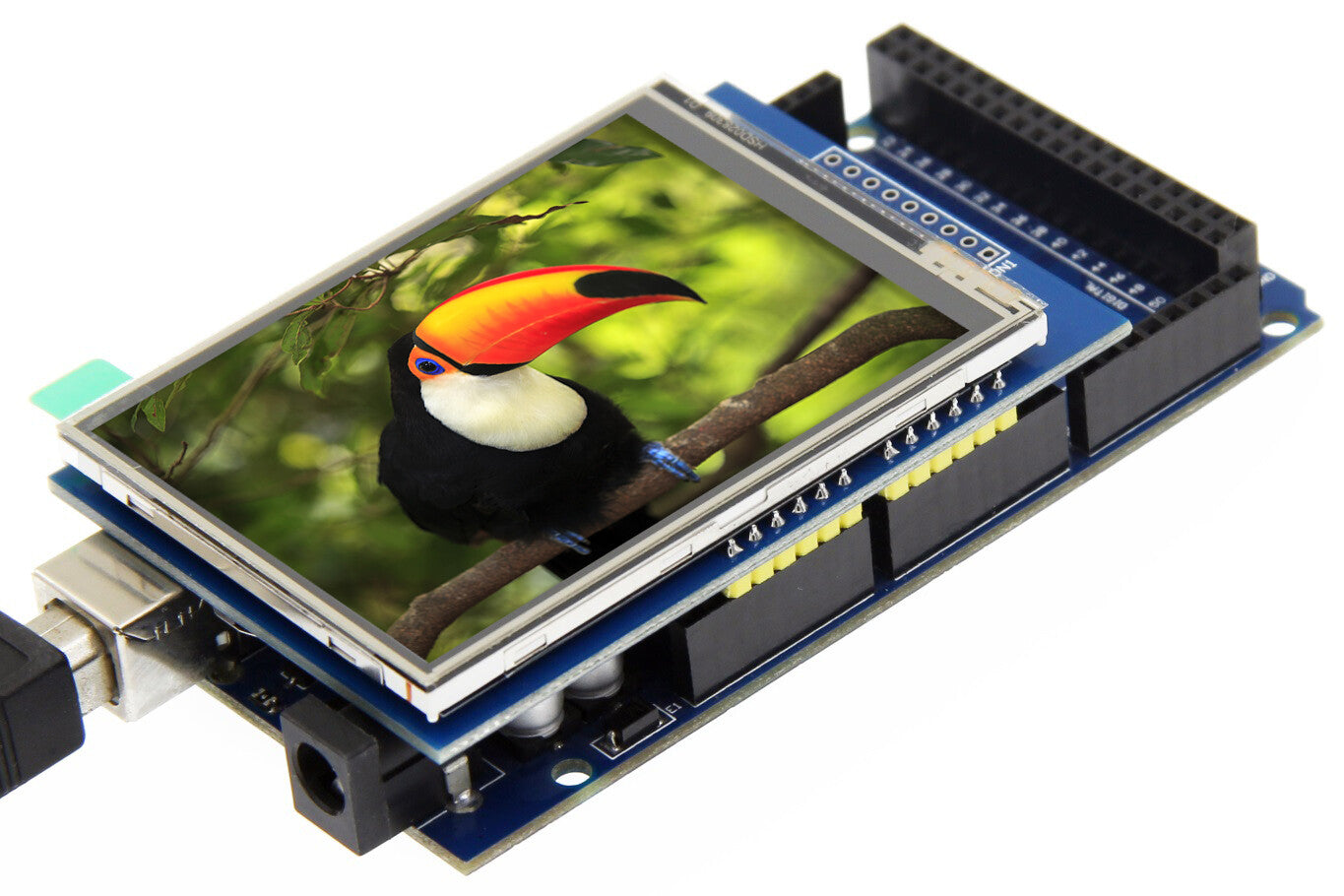

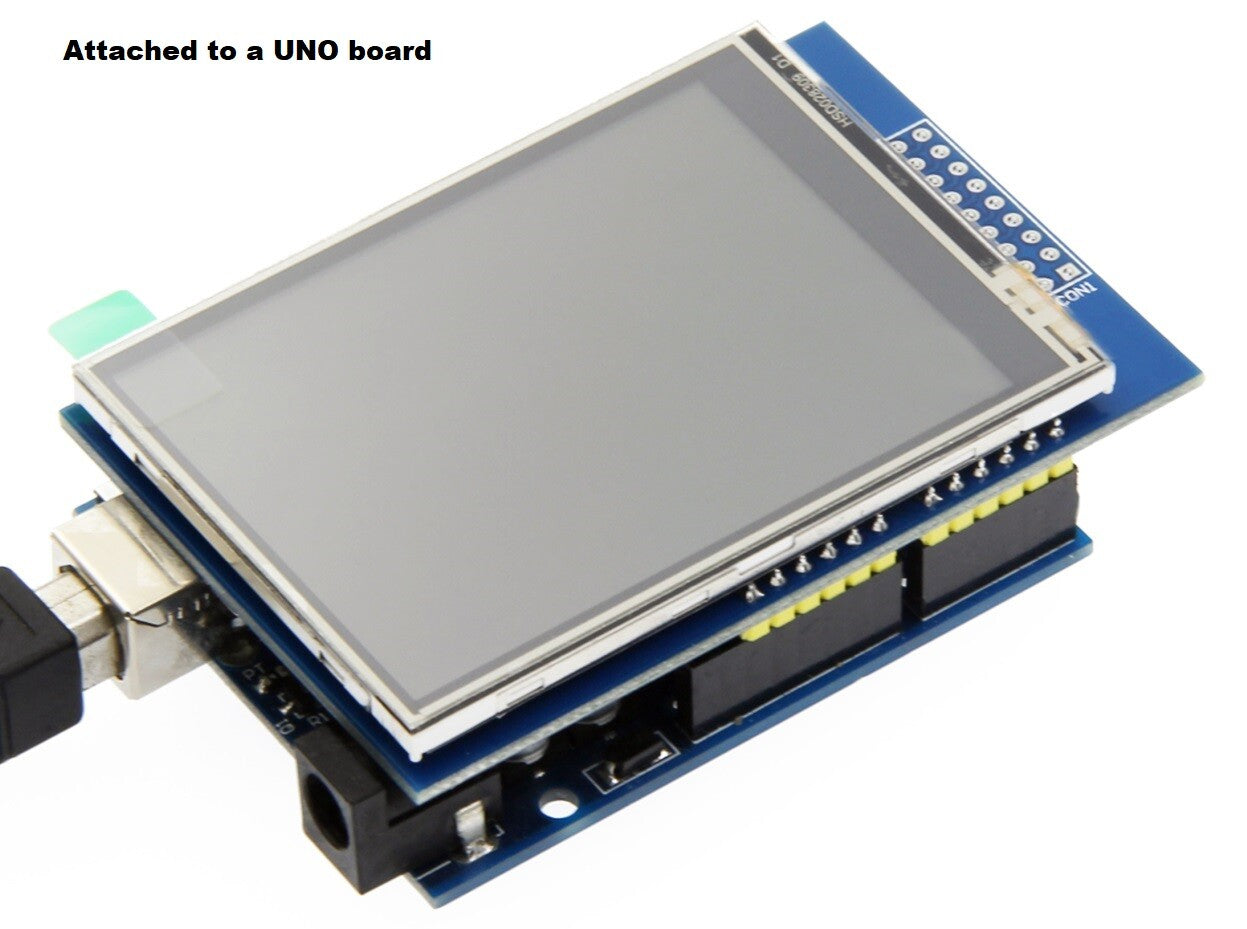

2.8 inch Full Color TFT Touchscreen display (ILI9341) for Arduino UNO and MEGA

Fits directly on top of your Arduino Board, no need for cables! Stylus Pen included.

We will provide complete instructions, manuals, tutorial, videos, libraries and example codes.

Description:

·        320 x 240 resolution.

·        16-bit color (65,000 colors) display support.

·        With high-brightness backlight, the backlight has good brightness and low power consumption.

·        High quality touch, high sensitivity, and high linearity.

·        It is made of custom yellow copper-plated pin headers, which are beautiful and durable.

·        A universal interface for the full range of development boards such as Arduino and Alientek.

·        8-bit parallel bus, faster than serial SPI refresh

·        On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage.

·        Easy to expand the experiment with SD card slot.



Specs:

·        Display Color: RGB 65K color

·        Screen Size: 2.8(inch)

·        Type: TFT

·        Driver IC: ILI9341

·        Resolution: 320*240 (Pixel)

·        Module Interface: 8-bit parallel interface

·        Operating Voltage: 5V/3.3V

·        Active Area: 43.2*57.6(mm)

·        Module PCB Size: 52.70*78.22(mm)

·        Operating Temperature: -20oC ~ 60oC

·        Storage Temperature: -30oC ~ 70oC



===============================================
