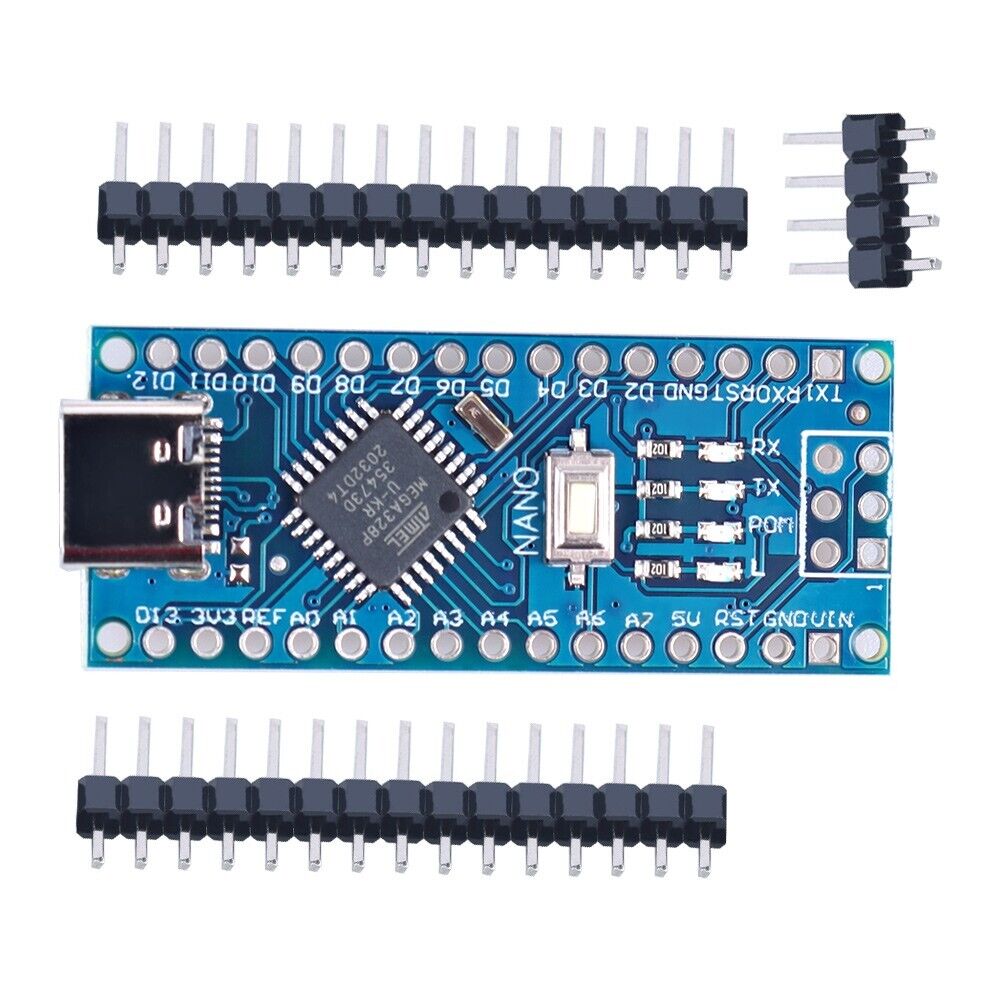

*NEW USB-C port* ATMEGA328P CH340 16Mhz Board Compatible with Arduino Nano IDE

2 Units!!

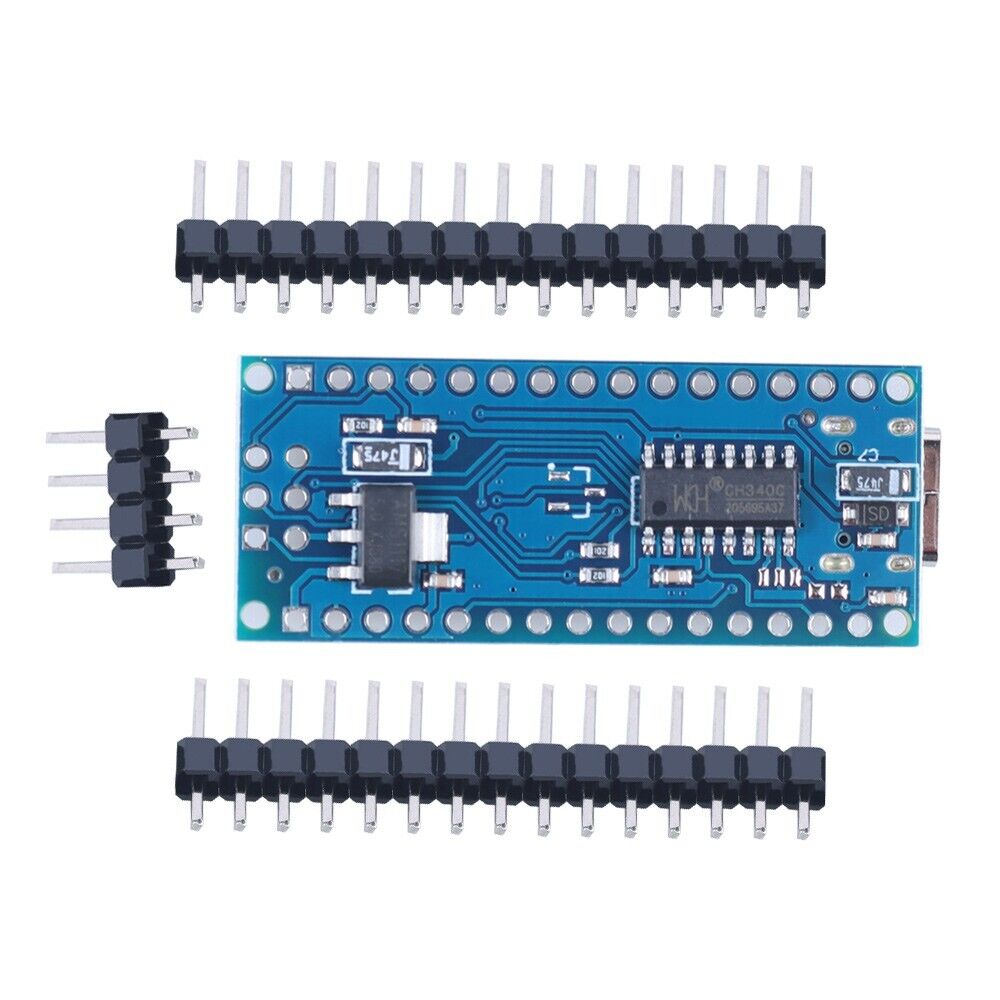

Atmega328P CH340 atNANO Board, with USB-C connector - Compatible with Arduino IDE

FREE USB-C Cable!

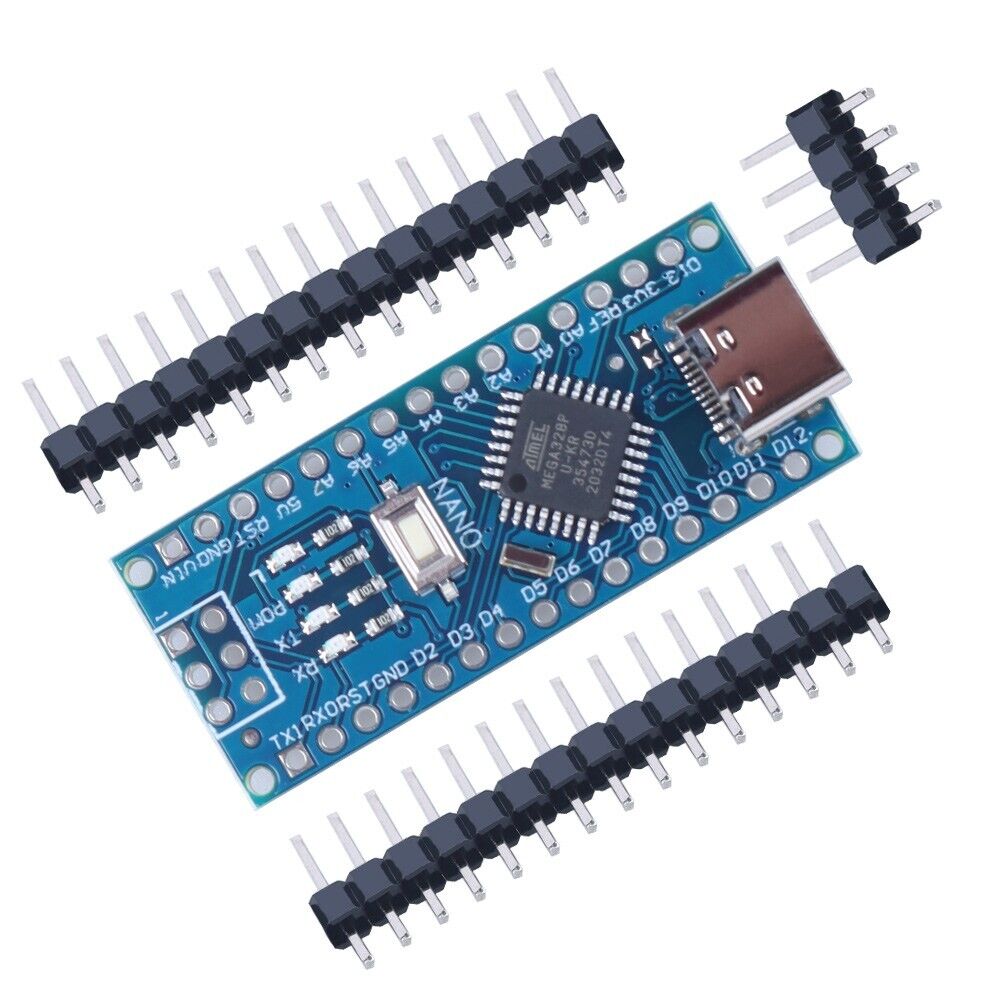

This board is a small, complete, and breadboard-friendly board based on the ATmega328.

It has all the functionality and features of a full-size development board; it works with a USB-C cable and has no DC power jack.

It may also be powered by batteries.

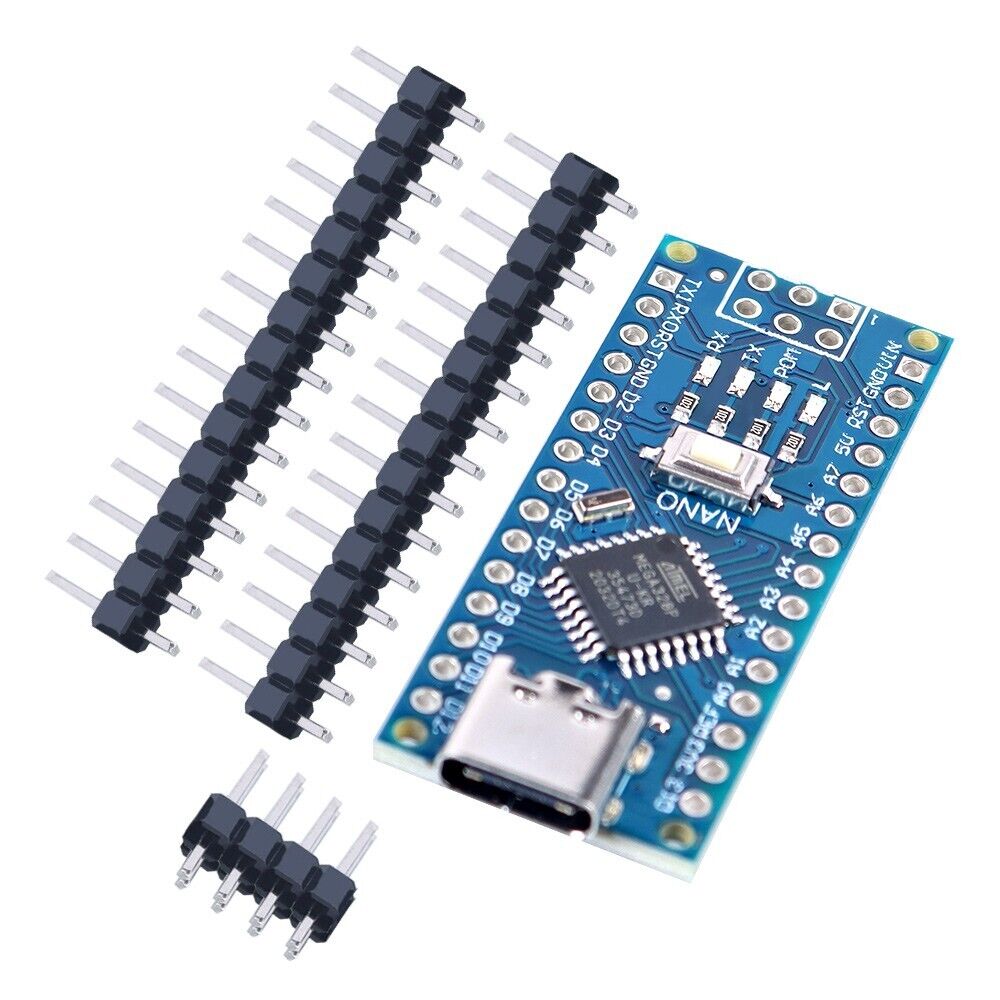

The pins are included in the package but are not soldered on the board. You may solder them as needed for your project.

Tech Specs:

 Microcontroller                ATmega328P-AU

Operating Voltage           5 V

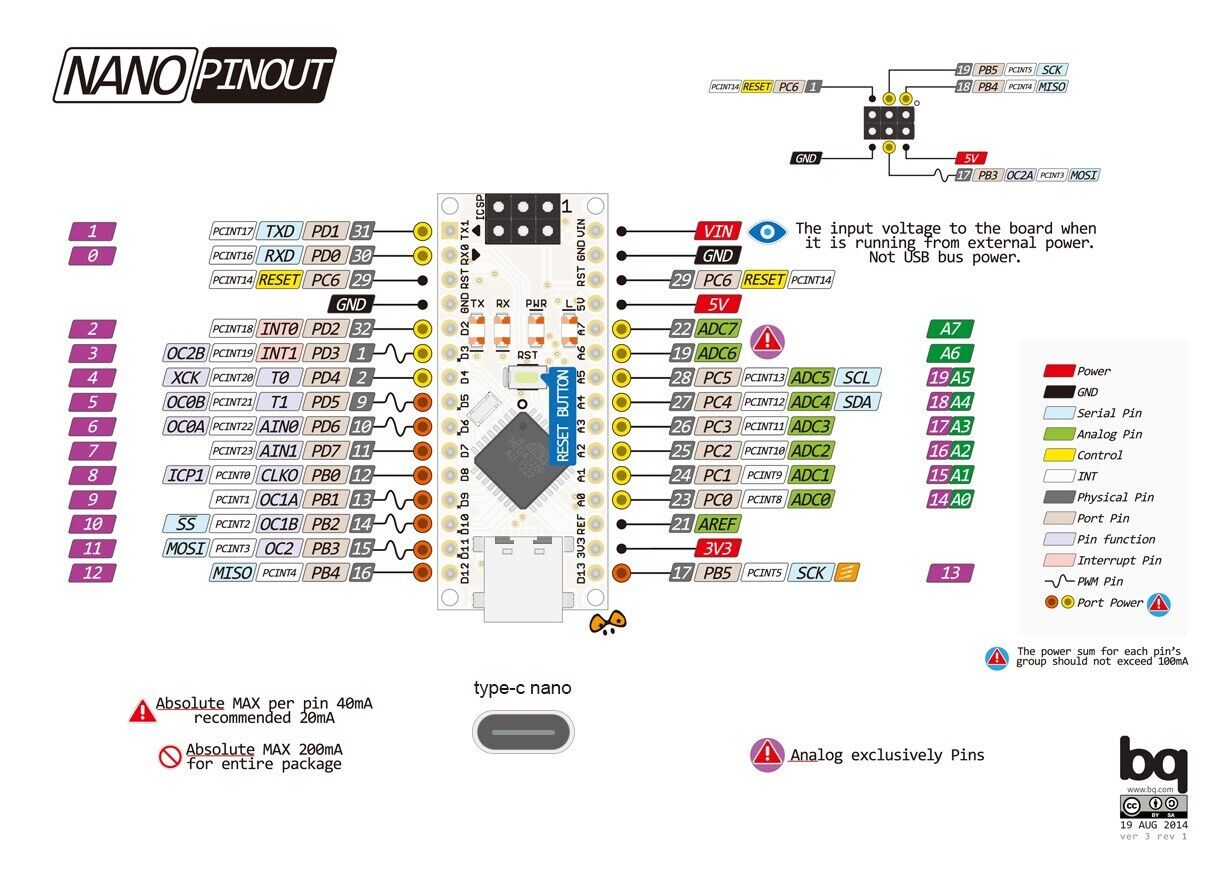

8 Analog IN Pins               A0 ~ A7

14 Digital I/O Pins            TX, RX, D2 ~ D13

6 PWM ports                     D3, D5, D6, D9, D10, D11

Flash Memory                   32 KB of which 2 KB used by bootloader

SRAM                                  2 KB

 Clock Speed                       16 MHz

 EEPROM                             1 KB

 DC Current per I/O Pin    40 mA (I/O Pins)

Input Voltage                    7-12 V

Power Consumption        19 mA

PCB Size                              18 x 45 mm

Weight                                7 g

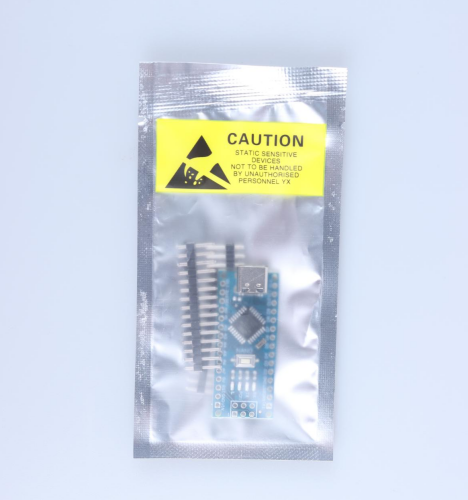

 What’s in the box: 2x ATmega 328P CH340 V3.0 Board and 1x USB-C cable
