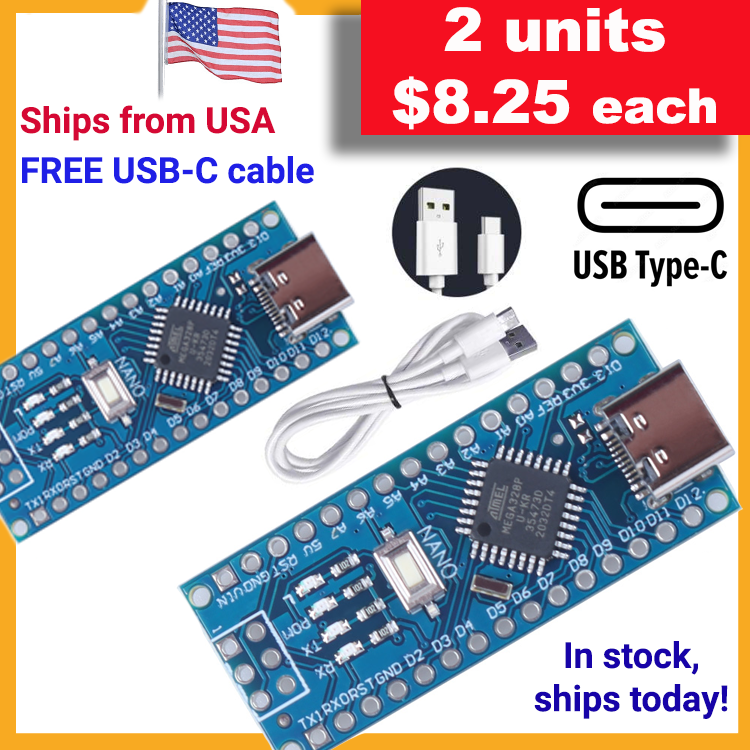

**NEW!** USB-C V3.0 ATMEGA328P CH340 Board COMPATIBLE WITH ARDUINO NANO IDE

**NEW!** USB-C V3.0 ATMEGA328P CH340 Board COMPATIBLE WITH ARDUINO NANO IDE

Regular price $11.25 USD
Regular price Sale price $11.25 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

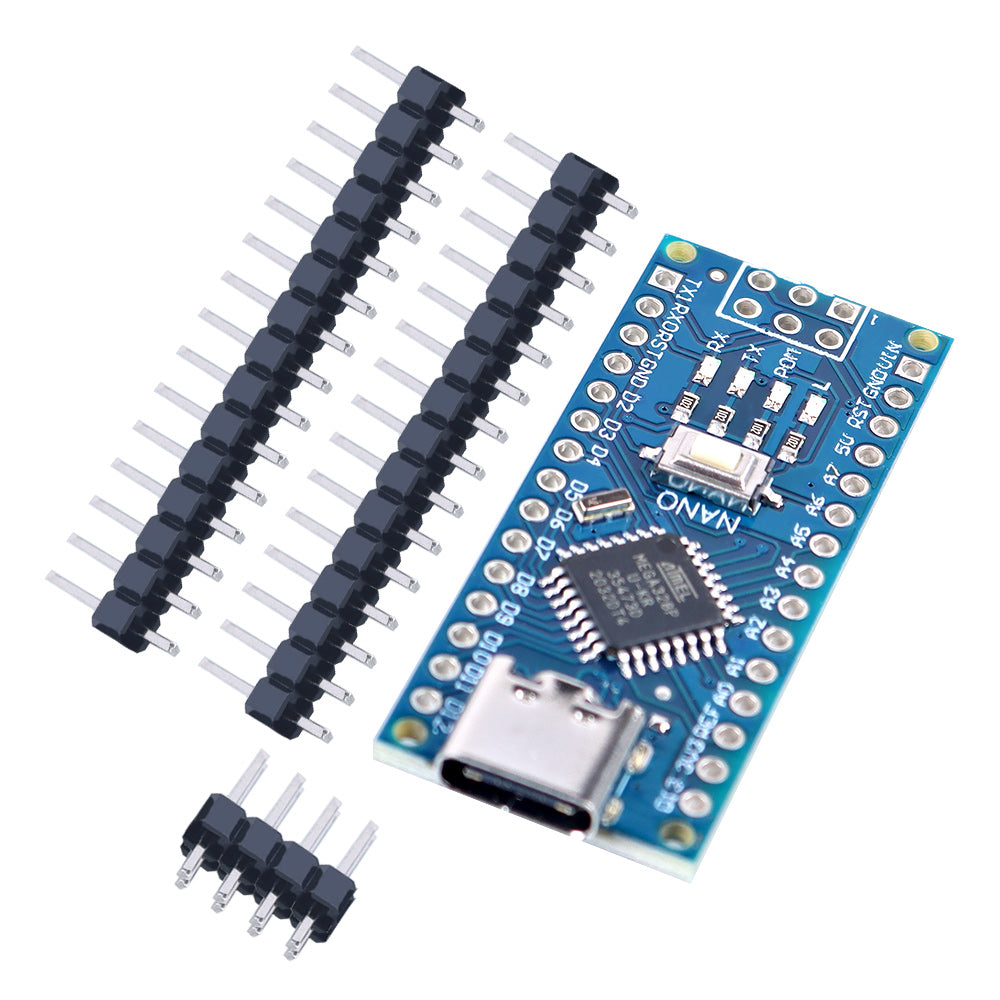

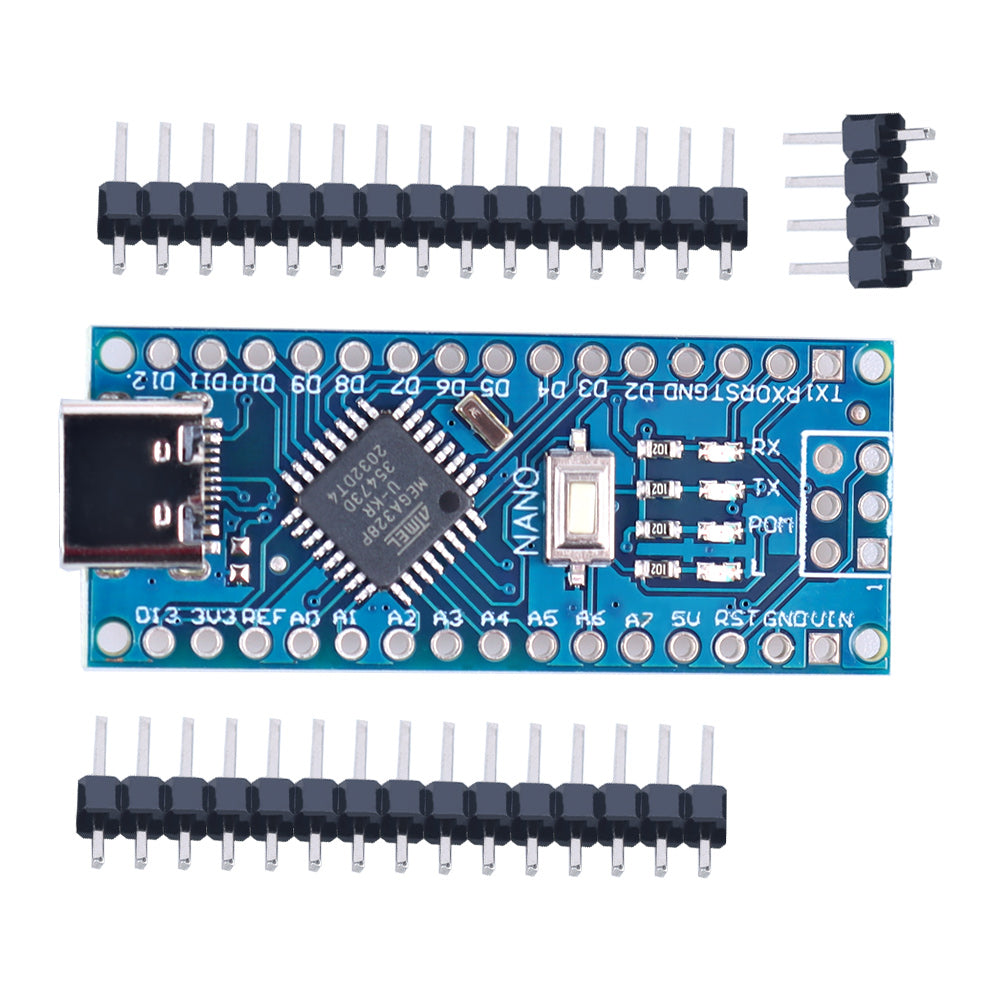

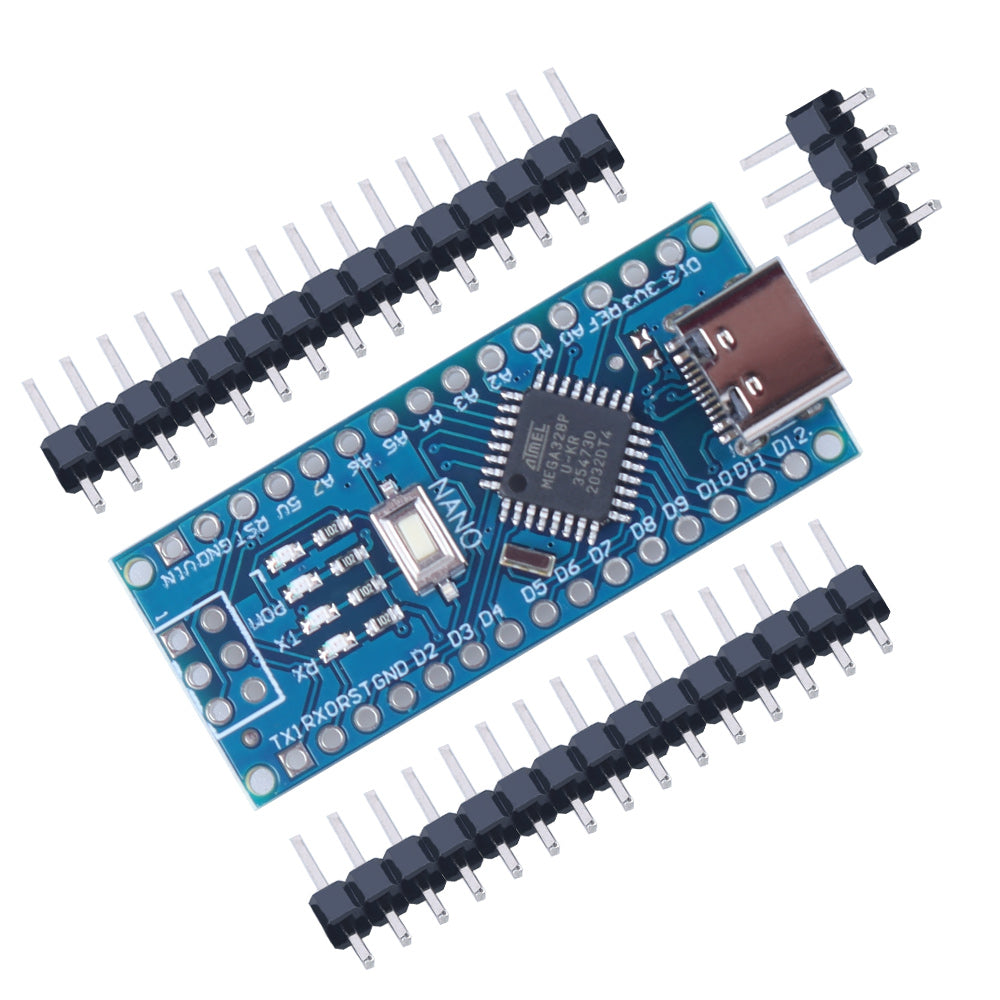

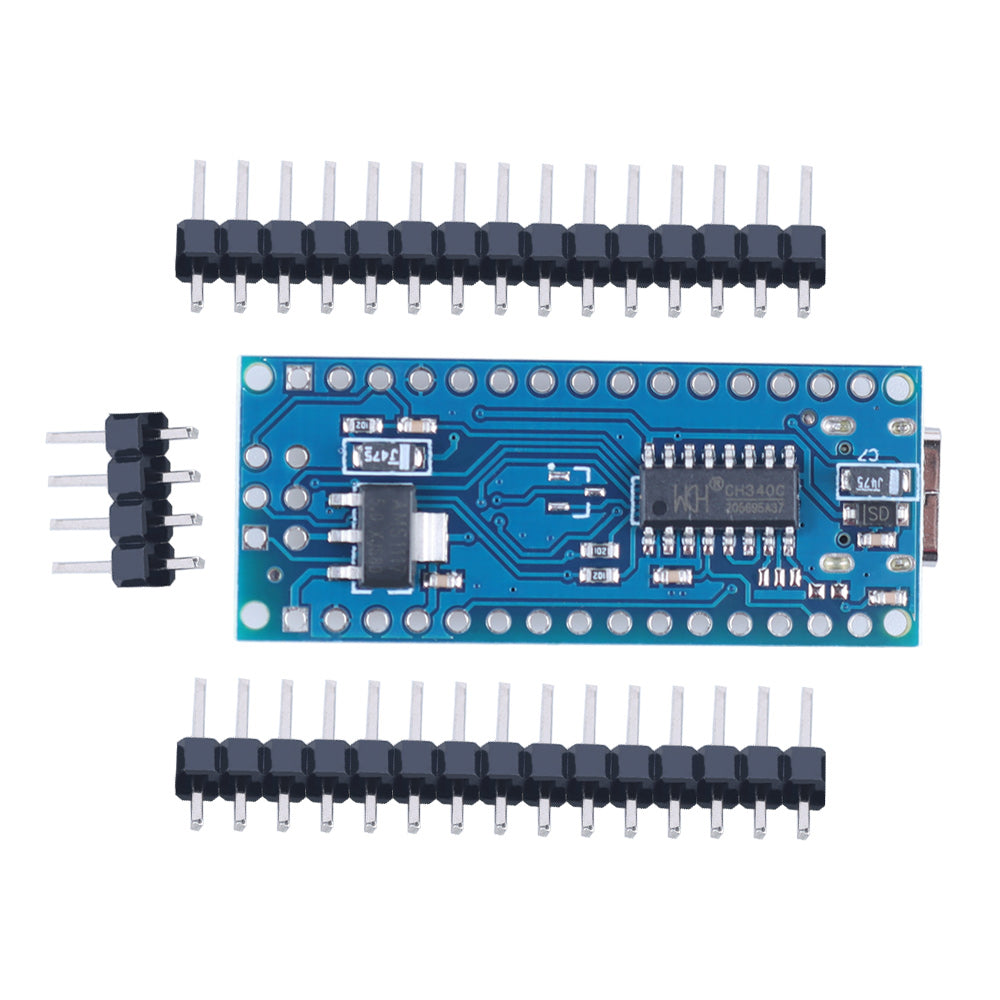

The board is a small, complete, and breadboard-friendly board based on the ATmega328 (Nano 3.x).

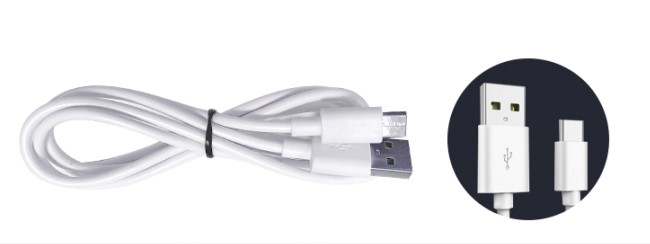

It has all the functionality and features of a full-size development board; it works with a USB-C cable and has no DC power jack.

It may also be powered by batteries.

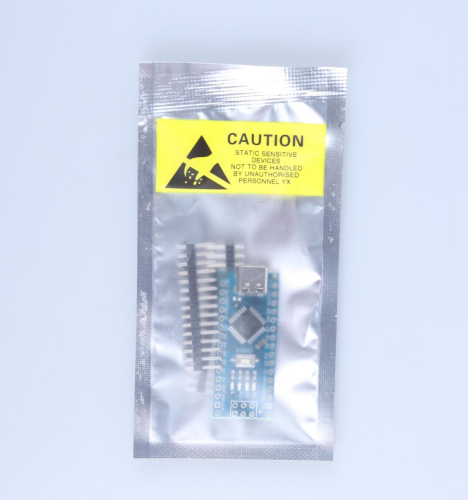

The pins are included in the package but are not soldered on the board. You may solder them as needed for your project.

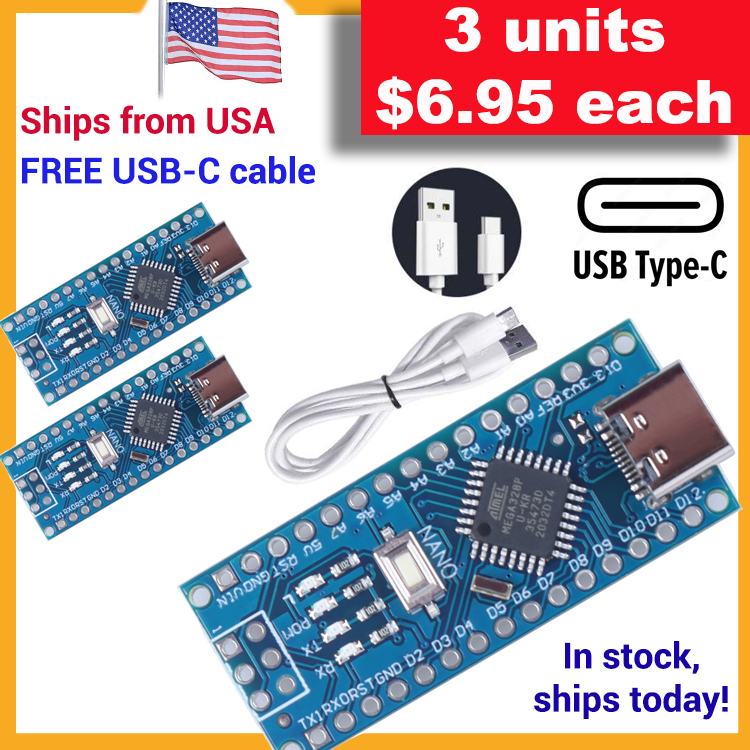

 Select your quantity and get discounted volume pricing!



Tech Specs:

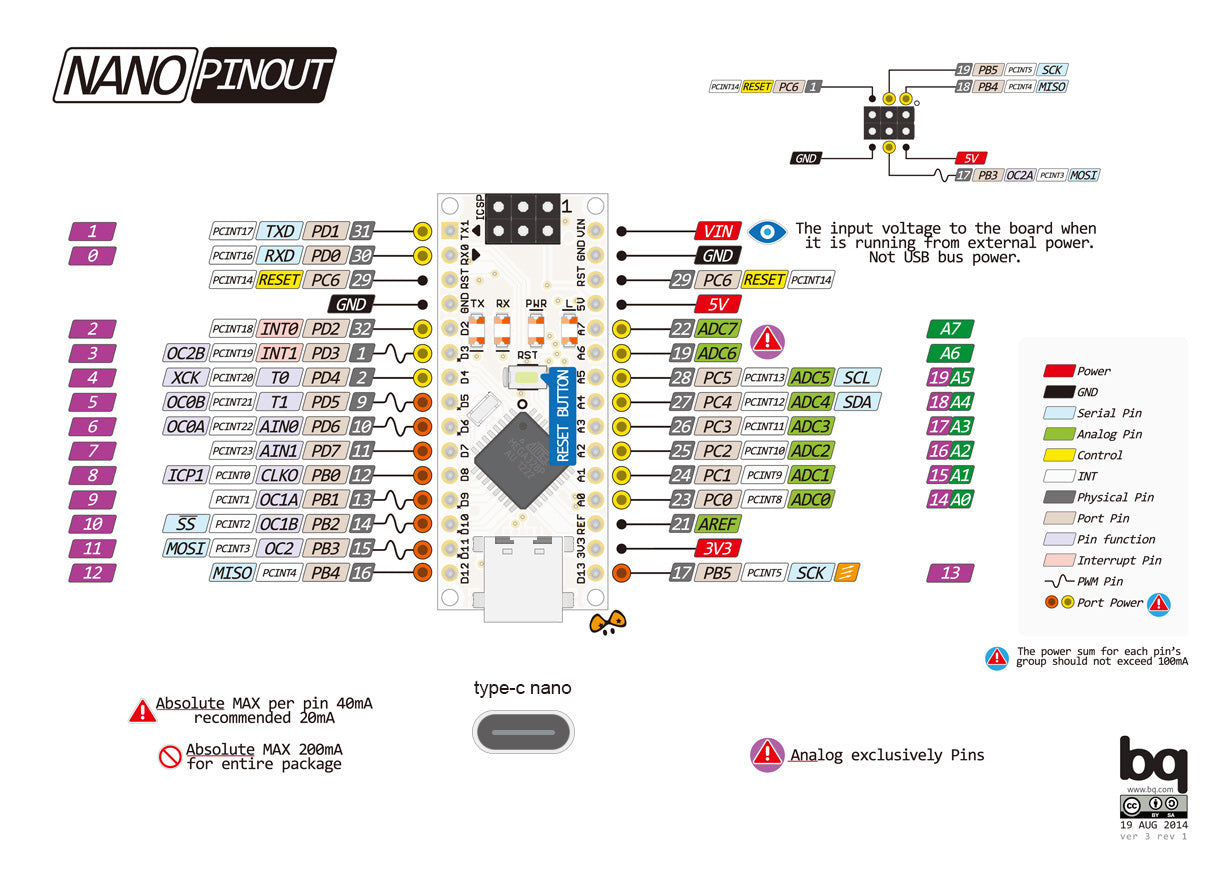

Microcontroller               ATmega328P-AU

Operating Voltage          5 V

8 Analog IN Pins              A0 ~ A7

14 Digital I/O Pins           TX, RX, D2 ~ D13

6 PWM ports                   D3, D5, D6, D9, D10, D11

Flash Memory                 32 KB of which 2 KB used by bootloader

SRAM                                 2 KB

Clock Speed                     16 MHz

EEPROM                           1 KB

DC Current per I/O Pin   40 mA (I/O Pins)

Input Voltage                  7-12 V

Power Consumption      19 mA

PCB Size                            18 x 45 mm

Weight                              7 g
