Smart Car for Arduino, Complete set, with all sensors, wireless, remote control and case included!

Smart Car for Arduino, Complete set, with all sensors, wireless, remote control and case included!

Regular price $39.99 USD
Regular price Sale price $39.99 USD
Sale Sold out
Shipping calculated at checkout.
This is a DIY Smart Robot Car Kit to learn, develop and practice mechanics, electronics, coding, and a wide variety of skills. Based on the ARDUINO IDE, it provides a great platform to develop your coding skills and helps complete a variety of interesting experiments. A main board compatible with Arduino UNO R3 is included.
The Robot Car Kit features easy assembly, requires no welding, and it comes with detailed tutorials (includes instructions, schematic diagram and source code). It is designed for both beginners and professionals to learn about electronics, programming and robotics. It features two modes of operation: Infrared Remote and Mobile Phone App (Supports Android Only). The Smart Robot Car kit features an Infrared Tracking Module, (follows any object in front of it) and Infrared Line Tracking Module (follows a line).

With this car, you will learn about line tracking, obstacle avoidance module, remote control and Bluetooth manipulation systems. You also have the opportunity to extend other function extending your robotics knowledge by experimenting on this smart car.

Features

  • Line Tracking Modules - White and Black Line Detection, High Precision Mode, Fall Prevention System.
  • Remote Control - The smart car comes with a wireless remote control to handle the communication between the remote control and the turtle car. Infrared communication module takes care of the smooth communication between each other.
  • Obstacle Avoidance Module - Avoids all the unnecessary objects in front using the most advanced ultrasonic object avoidance system, technically known as obstacle avoidance module.
  • Mobile App Manipulation - Supports Bluetooth mechanism to be able to remotely control the car via an Android mobile app.

Specifications

  • Motor voltage range: 1.5-12V; motor shaft length: 10 mm; revolving speed: 6.0 V 100 RPM/min.
  • For motor control, use L298N driver module
  • External 7 ~ 12V voltage maybe used with various sensor modules for other functions as well.
  • Robot Car Package Dimensions: 8.3 x 5.8 x 2.8 inches
  • Item Weight:1.5 pounds

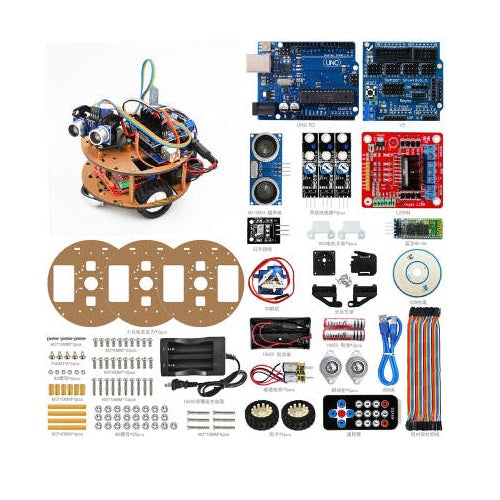

Contents
  • 2pcs Metal gear motor
  • 2pcs High quality tyre
  • 2pcs motor fixed pieces
  • 1pcs universal wheel
  • 2pcs robot chassis
  • 1pcs L298N motor driver board
  • 1pcs uno r3
  • 1pcs sensor extension plate (with Bluetooth sockets)
  • 1pcs Bluetooth module
  • 1pcs holder
  • 1pcs SG90 servo
  • 1pcs ultrasonic sensor module
  • 3pcs TCRT5000 tracing module
  • 1pcs infrared receiving sensor module
  • 1pcs remote
  • 1pcs 18650 battery box
  • 1pcs 18650 charger
  • 1pcs 40pin Dupont line
  • 1pcs screw set
  • 1pcs Components Case
NOTE: The batteries are not included, you need to have or buy 18650 lithium rechargeable batteries. (Battery charger is included)
